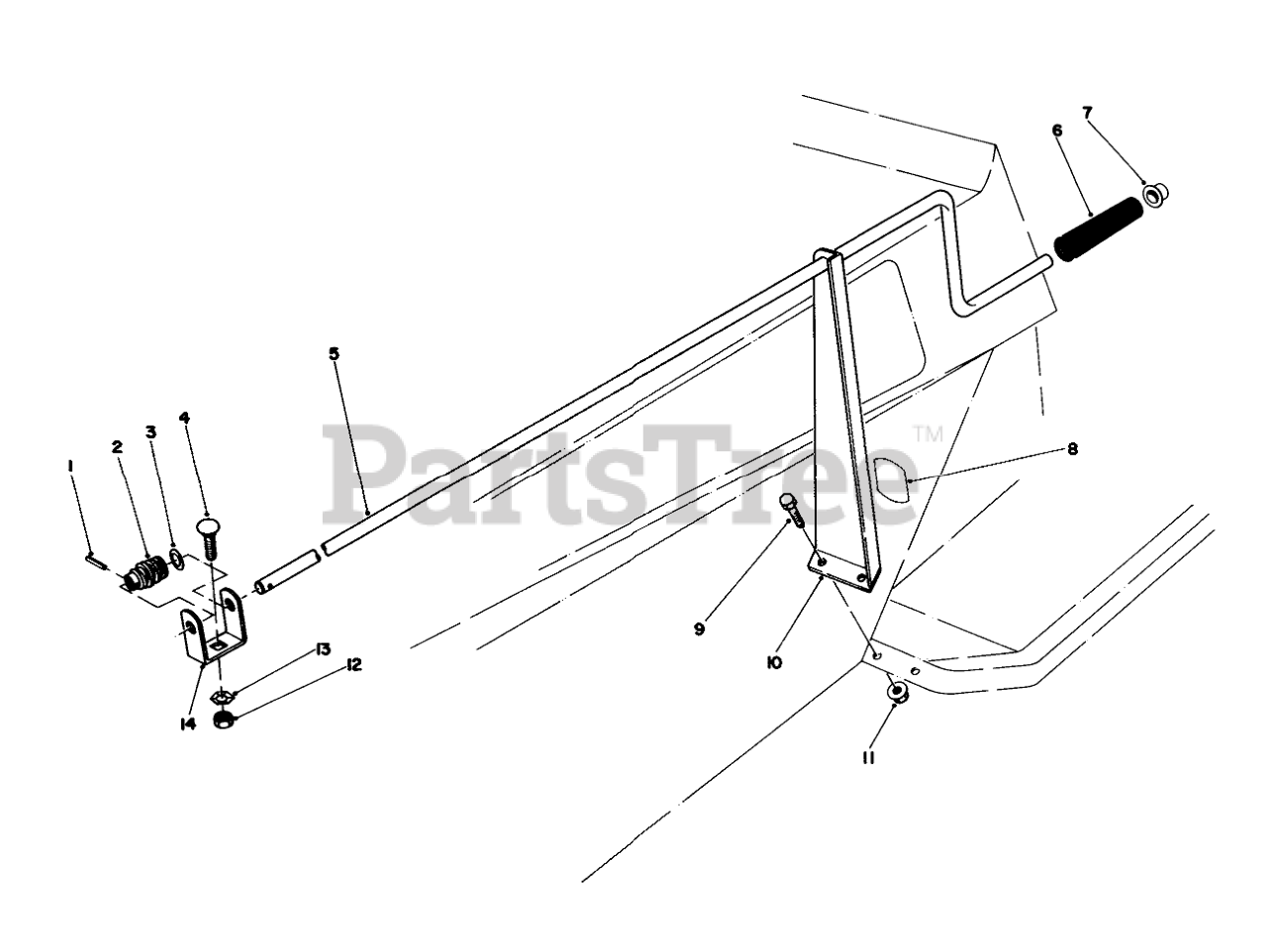

57360 (11-32) - Toro Lawn Tractor (SN: 007000001 - 007999999) (1987) CHUTE CONTROL ASSEMBLY 36" SNOWTHROWER ATTACHMENT MODEL NO. 59160 (OPTIONAL) Parts Diagram

Lawn Tractor

CHUTE CONTROL ASSEMBLY 36" SNOWTHROWER ATTACHMENT MODEL NO. 59160 (OPTIONAL) Parts Diagram

  • Title

1

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

2

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

3

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

4

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

5

Toro 51-2650

ROD-CHUTE CONTROL

$204.99

$

Usually ships in 3-6 days

0

6

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

7

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

8

Toro 29-6370

CHUTE DECAL

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 49-6730

CHUTE CONT BRKT B

$

$

Not available

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

14

Toro 49-6720

WORM BRKT B
(Superseded to 49-6720-03)

$

$

Not available
