57360 (11-32) - Toro Lawn Tractor (SN: 006000001 - 006999999) (1986) ENGINE BRIGGS & STRATTON MODEL 253707-0157-01 Parts Diagram

Lawn Tractor

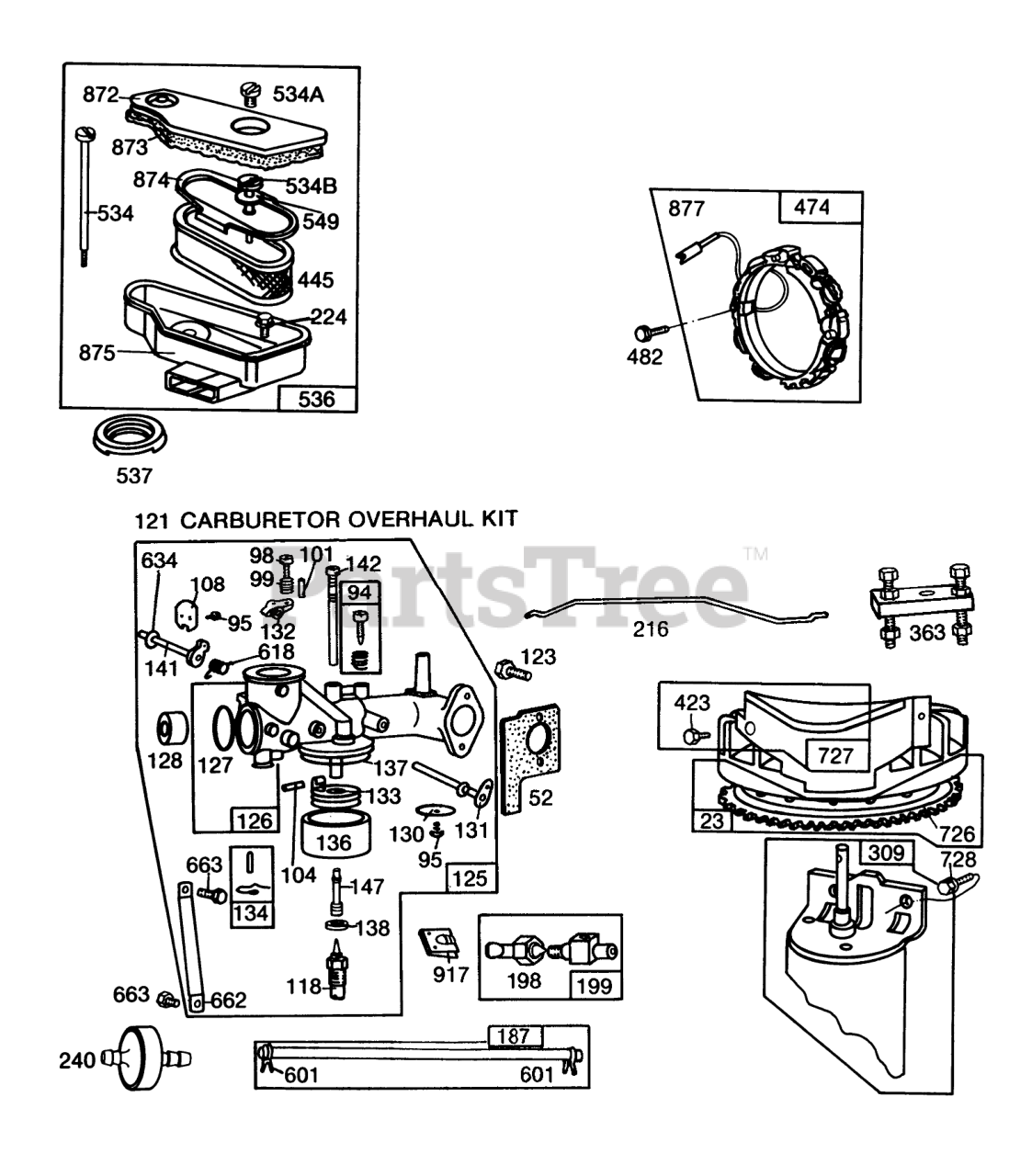

ENGINE BRIGGS & STRATTON MODEL 253707-0157-01 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$

$

Not available

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

Note: Included in Gasket Set Part No. 393411.

$5.49

$

In Stock, Qty 11

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 396568

Valve Needle

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$20.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 394698

Kit-Carburetor

$32.99

$

In Stock, Qty 14

0

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 396501

Carburetor Assembly
(Superseded to 491026)

$315.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 396574

Body Assy.-Carburetor (Two 271013 Foam Washers Included in All Ref.126)
(Superseded to 391787)

$

$

Not available

127

Briggs & Stratton 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211960

Venturi-Carburetor

$6.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 222858

Valve-Throttle
(Superseded to 222433)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 391512

Shaft & Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$

$

Not available

134

Briggs & Stratton 394681

Valve-Fuel Inlet

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$7.99

$

In Stock, only 1 left!

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, Qty 6

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$3.49

$

In Stock, Qty 19

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$4.99

$

In Stock, Qty 9

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231323

Screw

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$24.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 394045

Line-Fuel
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$

$

Not available

216

Briggs & Stratton 261610

Link-Choke

$

$

Not available

224

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

309

Motor Starting (12 Volt) (See Individual Breakdown)

$

$

Not available

352

Briggs & Stratton 66068

Washer-Insulating

$4.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 393725

Cartridge-Air Cleaner

$21.99

$

In Stock, only 2 left!

0

474

Briggs & Stratton 392595

Alternator
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93911

Screw-Air Cleaner

$10.99

$

Usually ships in 2-12 days

0

534A

Briggs & Stratton 93913

Screw-Cover Mtg.

$3.99

$

In Stock, only 1 left!

0

534B

Briggs & Stratton 93910

Screw-Air Cleaner

$13.99

$

Usually ships in 2-12 days

0

536

Briggs & Stratton 393749

Cleaner-Air

$179.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 270853

Gasket-Air Cleaner

$9.49

$

In Stock, only 1 left!

0

549

Briggs & Stratton 270978

Washer-Air Cleaner

$5.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 261116

Spring Choke

$

$

Not available

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

662

Briggs & Stratton 222311

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

726

Briggs & Stratton 392134

Gear Ring (Incl. Mtg. Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover-Starter (Includes Mounting Screws)

$

$

Not available

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

872

Briggs & Stratton 396966

Cover Group-Air Cleaner (Includes Gasket)

$51.99

$

Usually ships in 2-12 days

0

873

Briggs & Stratton 271591

Gasket-Air Cleaner Cover
(Superseded to 397971)

$37.99

$

In Stock, only 1 left!

0

874

Briggs & Stratton 222898

Plate-Air Cleaner Cartridge

$21.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 393726

Body-Air Cleaner
(Superseded to 397321)

$49.99

$

In Stock, only 1 left!

0

877

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

$

$

Not available

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0
