57360 (11-32) - Toro Lawn Tractor (SN: 004000001 - 004999999) (1984) HEADLIGHT KIT NO. 38-5760 (OPTIONAL) Parts Diagram

Lawn Tractor

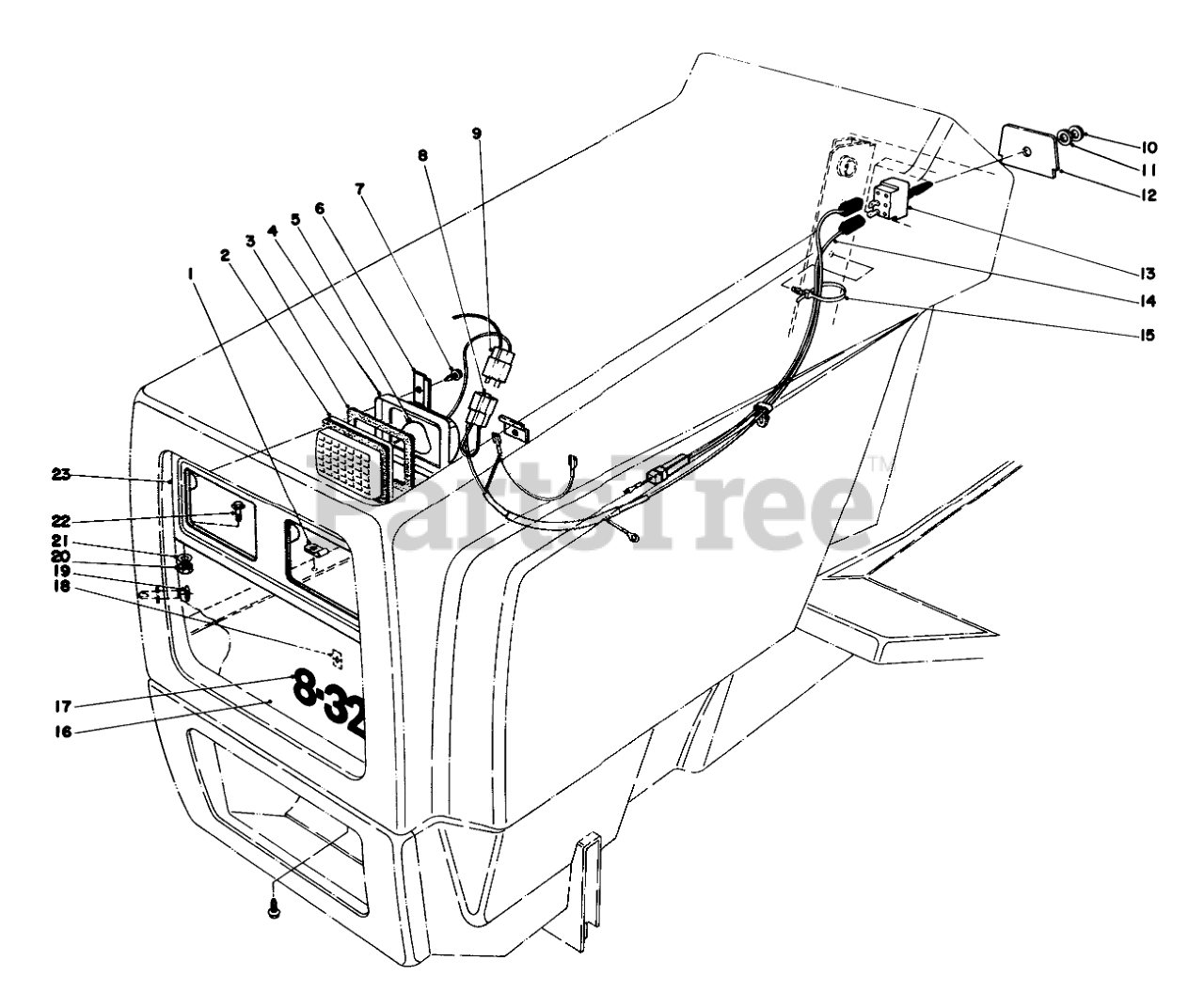

HEADLIGHT KIT NO. 38-5760 (OPTIONAL) Parts Diagram

  • Title

1

Toro 2412-51

CABLE CLAMP

$

$

Not available

2

Lens

$

$

Not available

3

Gasket Lens

$

$

Not available

4

Reflector Assembly

$

$

Not available

5

Bulb GE #1156

$

$

Not available

6

Toro 28-0050

HEADLIGHT CLAMP

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 218493

Connector

$

$

Currently unavailable

9

Toro 218-508

SOCKET

$

$

Not available

10

Toro 218497

Facenut

$

$

Currently unavailable

11

Toro 218498

Locknut

$

$

Currently unavailable

12

Toro 28-2510

DASH PANEL INSERT

$

$

Not available

13

Toro 284

110 Light Switch

$

$

Currently unavailable

14

Toro 38-1030

WIRE HARNESS

$

$

Not available

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 36-2090

HEADLIGHT GRILLE

$

$

Not available

17

Toro 28-2660

Nameplate Grille

$

$

Not available

18

Toro 3290-299

CLIP

$

$

Not available

19

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

20

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

21

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 28-0040

HEADLIGHT PANEL B

$

$

Not available

Toro 8-3579

Headlight Assembly (Incl. Ref. #2-5)

Note: Not illustrated

$

$

Not available
