57360 (11-32) - Toro Lawn Tractor (SN: 003000001 - 003999999) (1983) HOOD DUCT ASSEMBLY Parts Diagram

Lawn Tractor

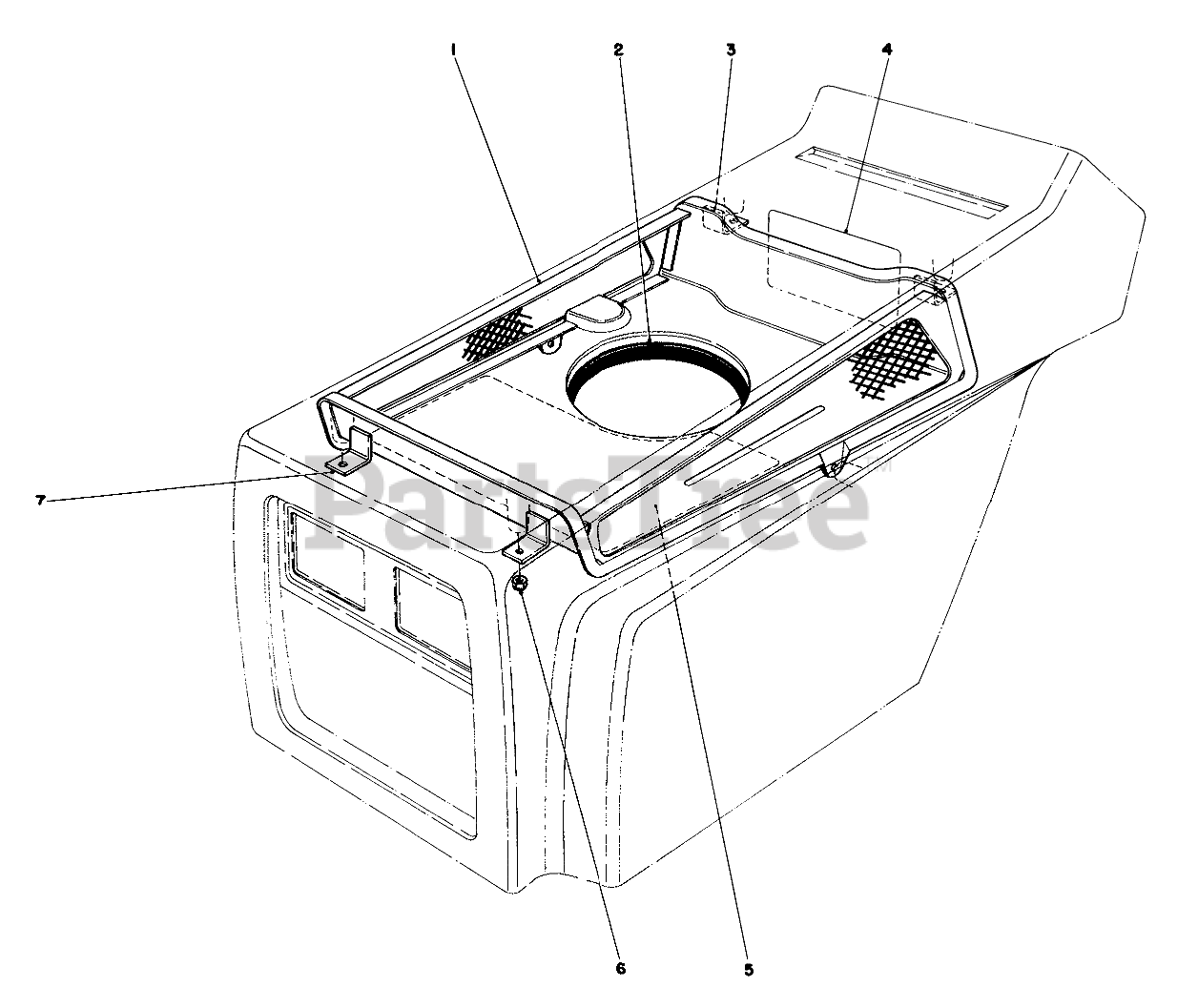

HOOD DUCT ASSEMBLY Parts Diagram

  • Title
1

Toro 39-5090

Duct Hood

$

$

Not available

Toro 39-5140

HOOD DUCT WA B

Note: Not illustrated

$

$

Not available

2

Toro 36-8160

Seal Engine

$

$

Not available

3

Toro 39-8880

Bracket Rear Duct Support

$

$

Not available

4

Toro 44-5860

BELT DECAL

$

$

Not available

5

Toro 36-5190

Decal Service

$

$

Not available

6

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

7

Toro 39-5340

Bracket Duct Support
(Superseded to 56-6000)

$

$

Not available
