57358 - Toro 44" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) CLUTCH & PULLEY ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

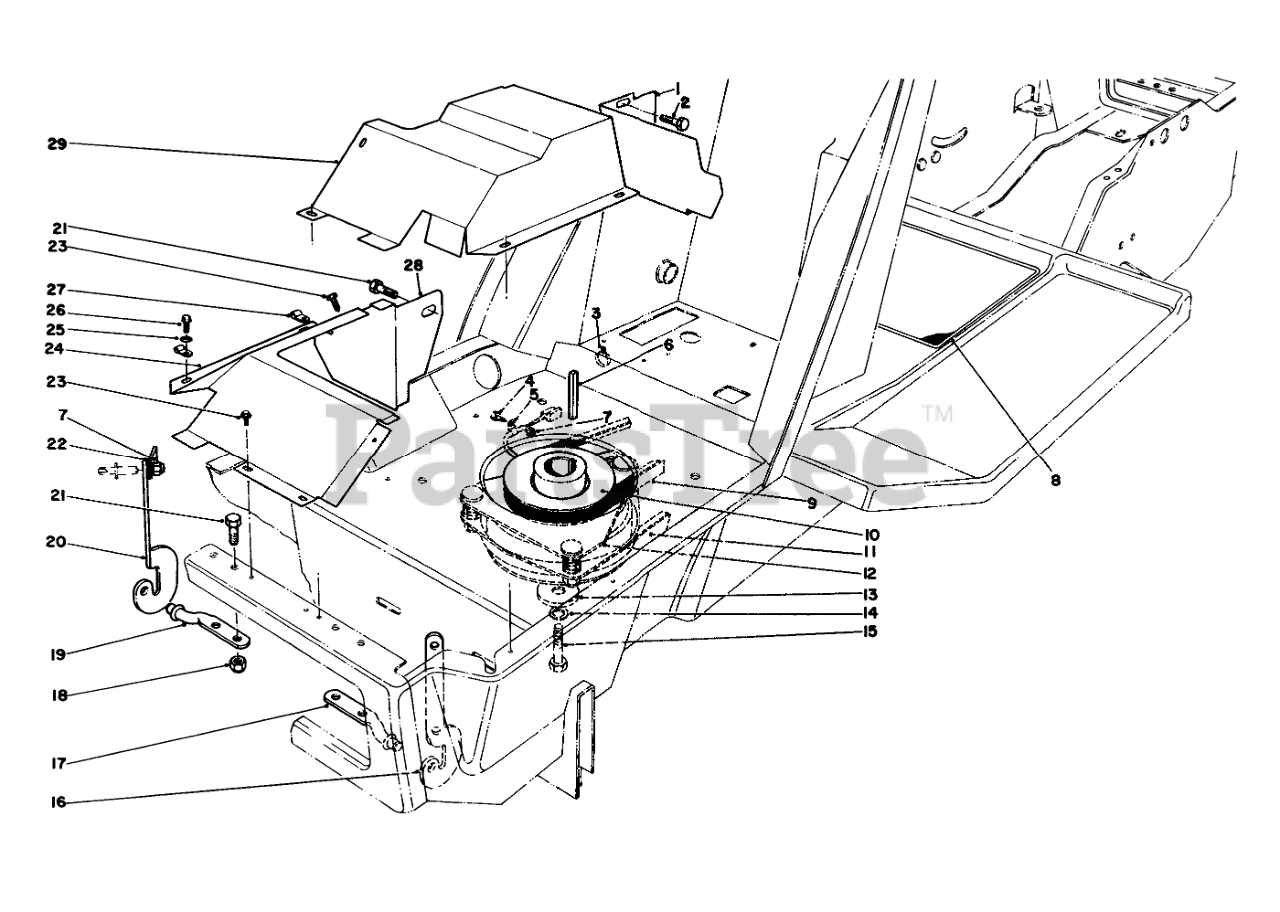

CLUTCH & PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 28-3990

EXH SHIELD SUPT B

$

$

Not available

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 2412-66

CLAMP

$

$

Not available

6

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 54-9230

OPERATION DECAL

$

$

Not available

9

Toro 28-2650

V BELT

$64.99

$

In Stock, only 1 left!

0

10

Toro 44-5940

Pulley

$151.99

$

Usually ships in 3-6 days

0

11

Toro 57-7000

V-BELT

$

$

Not available

12

Toro 44-0770

Clutch Assembly-Deck
(Superseded to 54-0220)

$989.99

$

Usually ships in 3-6 days

0

13

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

15

Toro 3212-24

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

16

Toro 28-0120

L.H. HINGE BRACKET

$74.99

$

Usually ships in 3-6 days

0

17

Toro 28-0110

LH HOOD HINGE PIN

$

$

Not available

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

19

Toro 28-0100

RH HOOD HINGE PIN

$

$

Not available

20

Toro 28-0130

RH HINGE BRKT

$74.99

$

Usually ships in 3-6 days

0

21

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

22

Toro 37-0170

SCREEN SUPT BRKT

$

$

Not available

23

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 33-0840

Heat Shield

$

$

Not available

25

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 33-2270

SCREW

$

$

Not available

27

Toro 2412-51

CABLE CLAMP

$

$

Not available

28

Toro 28-3980

Support Heat Shield

$

$

Not available

29

Toro 33-0820

HEAT SHIELD WA B

$

$

Not available
