57358 - Toro 44" Side-Discharge Mower Deck (SN: 006000001 - 006999999) (1986) FRONT AXLE ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

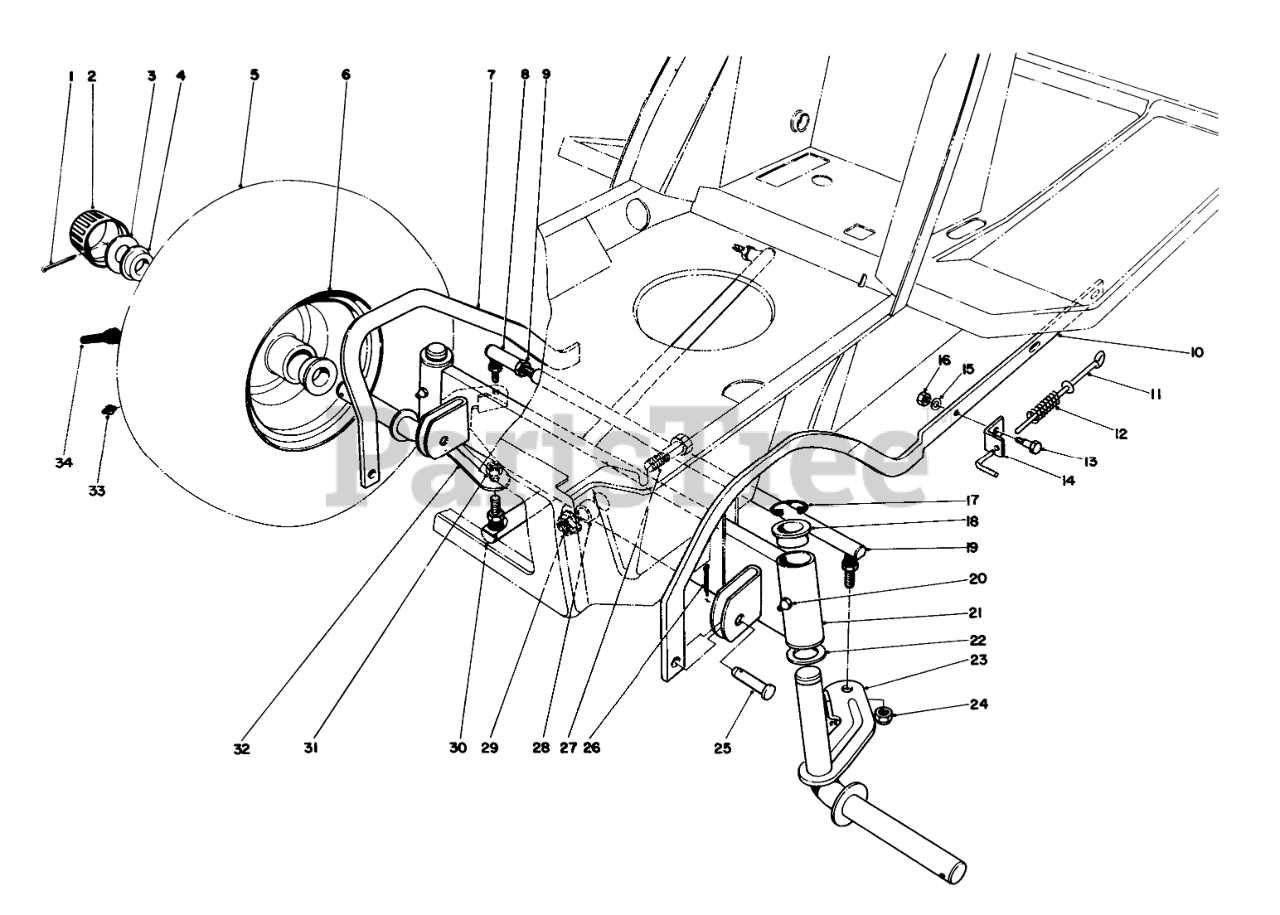

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

2

Toro 28-0060

Cap-Hub
(Superseded to 61-9780)

$7.99

$

In Stock, Qty 20+

0

3

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

4

Toro 251-210

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 2 left!

0

5

Toro 231-99

FRONT TIRE

$

$

Not available

6

Toro 242-65

FRONT RIM

$

$

Not available

7

Toro 57-6840

Scissors Link-R.H.

$

$

Not available

8

Toro 2411-32

JOINT-BALL

$33.99

$

Usually ships in 3-6 days

0

9

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

10

Toro 57-6850

Scissors Link-L.H.

$

$

Not available

11

Toro 57-6820

Pin-Tension

$

$

Not available

12

Toro 38-0860

COMP SPRING

$

$

Not available

13

Toro 38-0930

Bolt-Shoulder

$

$

Not available

14

Toro 38-0820

TENSION BELT BRKT B

$

$

Not available

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

18

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

19

Toro 47-5160

Tie Rod-Steering (Incl. Ref. #8 & 9)

$

$

Not available

20

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

21

Toro 36-3420

Front Axle (Incl. Ref. #18)

$

$

Not available

22

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

23

Toro 33-3170

LH SPINDLE WA PP

$

$

Not available

24

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

25

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

26

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

27

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

28

Toro 28-0380

SPACER-AXLE, FRONT

$3.49

$

Usually ships in 3-6 days

0

29

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

30

Toro 39-1910

STEERING ARM B

$

$

Not available

31

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

32

Toro 33-3180

RH SPINDLE WA PP

$

$

Not available

33

Toro 302-22

FITTING-GREASE

$13.99

$

Usually ships in 3-6 days

0

34

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

Toro 232-39

TUBE-INNER

Note: Not illustrated

$31.99

$

In Stock, only 1 left!

0
