57358 - Toro 44" Side-Discharge Mower Deck (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

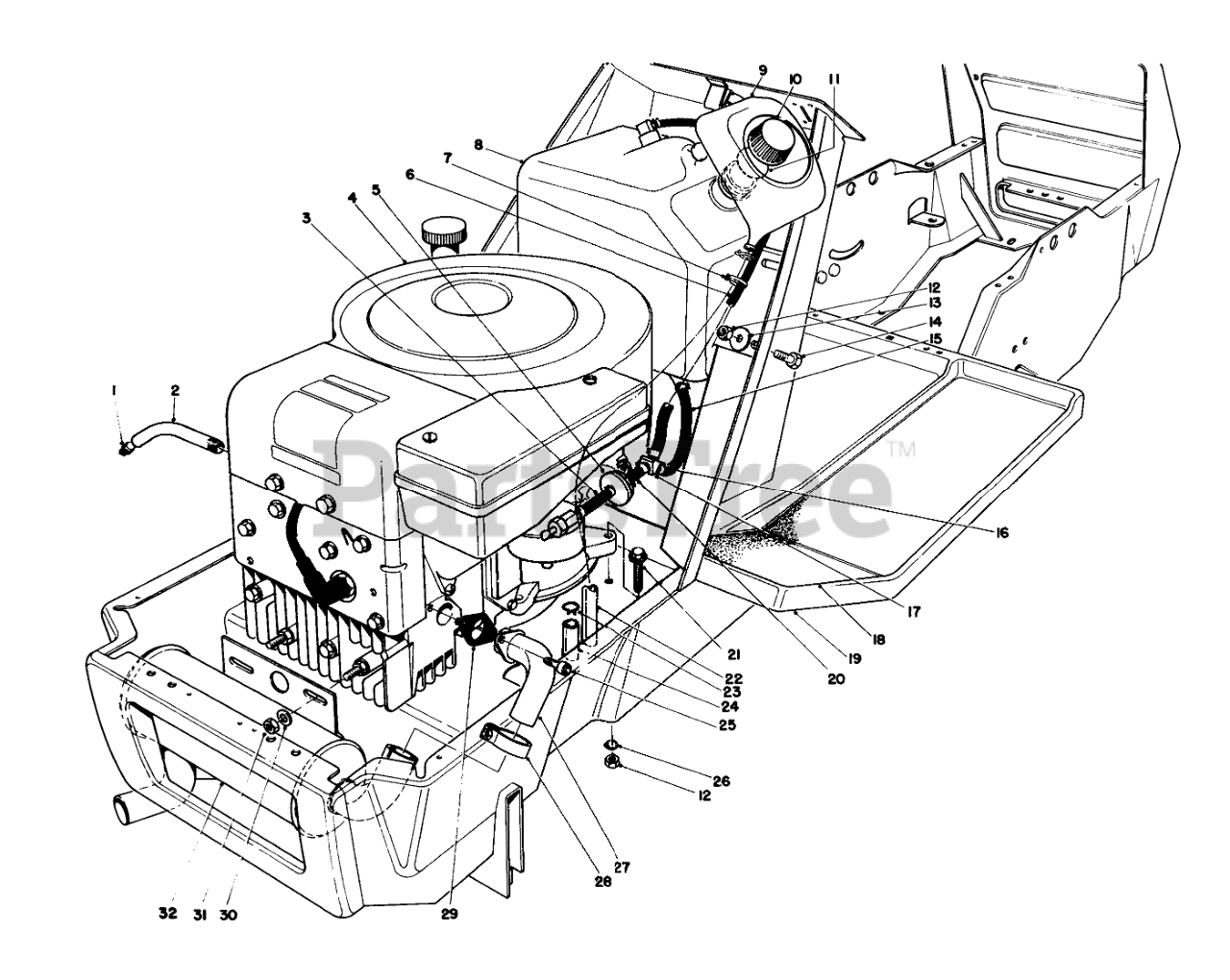

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

2

Toro 28-8650

OIL DRAIN TUBE

$

$

Not available

3

Hose-Gas

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

4

Toro 52-1810

Engine

$

$

Currently unavailable

5

Filter-Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

6

Toro 47-2981

HOSE -RETURN
(Superseded to 110-5701)

$17.99

$

Usually ships in 3-6 days

0

7

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

8

Toro 44-8240

Gas Tank Assy. (Incl. Ref. #9)
(Superseded to 13-0479)

$338.99

$

In Stock, only 1 left!

0

9

Funnel-Overflow

$

$

Not available

10

Toro 42-0682

Gas Cap Assy. (Incl. Ref. #11)

$

$

Not available

11

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 47-2980

HOSE-FUEL
(Superseded to 107-0588)

$5.99

$

In Stock, only 2 left!

0

16

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

In Stock, only 4 left!

0

17

Toro 353-778

Fitting-Barbed Y

$

$

Not available

18

Toro 27-9050

LH FOOT TREAD

$

$

Not available

Toro 27-9040

RH FOOT TREAD

Note: Not illustrated

$

$

Not available

19

Toro 44-8130

Frame
(Superseded to 66-9210)

$

$

Not available

20

Toro 47-2960

GAS HOSE

$

$

Not available

21

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 39-4030

FUNNEL HOSE

$

$

Not available

23

Toro 2412-62

HOSE CLAMP

$

$

Not available

24

Toro 39-4040

CARB DRAIN HOSE

$

$

Not available

25

Toro 3274-53

SCREW-HSH

$

$

Not available

26

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

27

Toro 28-0290

10 HP EXHAUST PIPE WA

$

$

Not available

28

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

29

Exhaust Gasket

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

32

Toro 28-0300

EXHAUST MUFFLER 10 HP

$514.99

$

Usually ships in 3-6 days

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

Toro 36-7890

Muffler-Spark Arrester (Optional)

Note: Not illustrated

$

$

Not available

Toro 12-3329

Loose Parts

Note: Not illustrated

$

$

Not available
