57358 - Toro 44" Side-Discharge Mower Deck (SN: 006000001 - 006999999) (1986) 44" CUTTING DECK MODEL NO. 57358 Parts Diagram

44" Side-Discharge Mower Deck

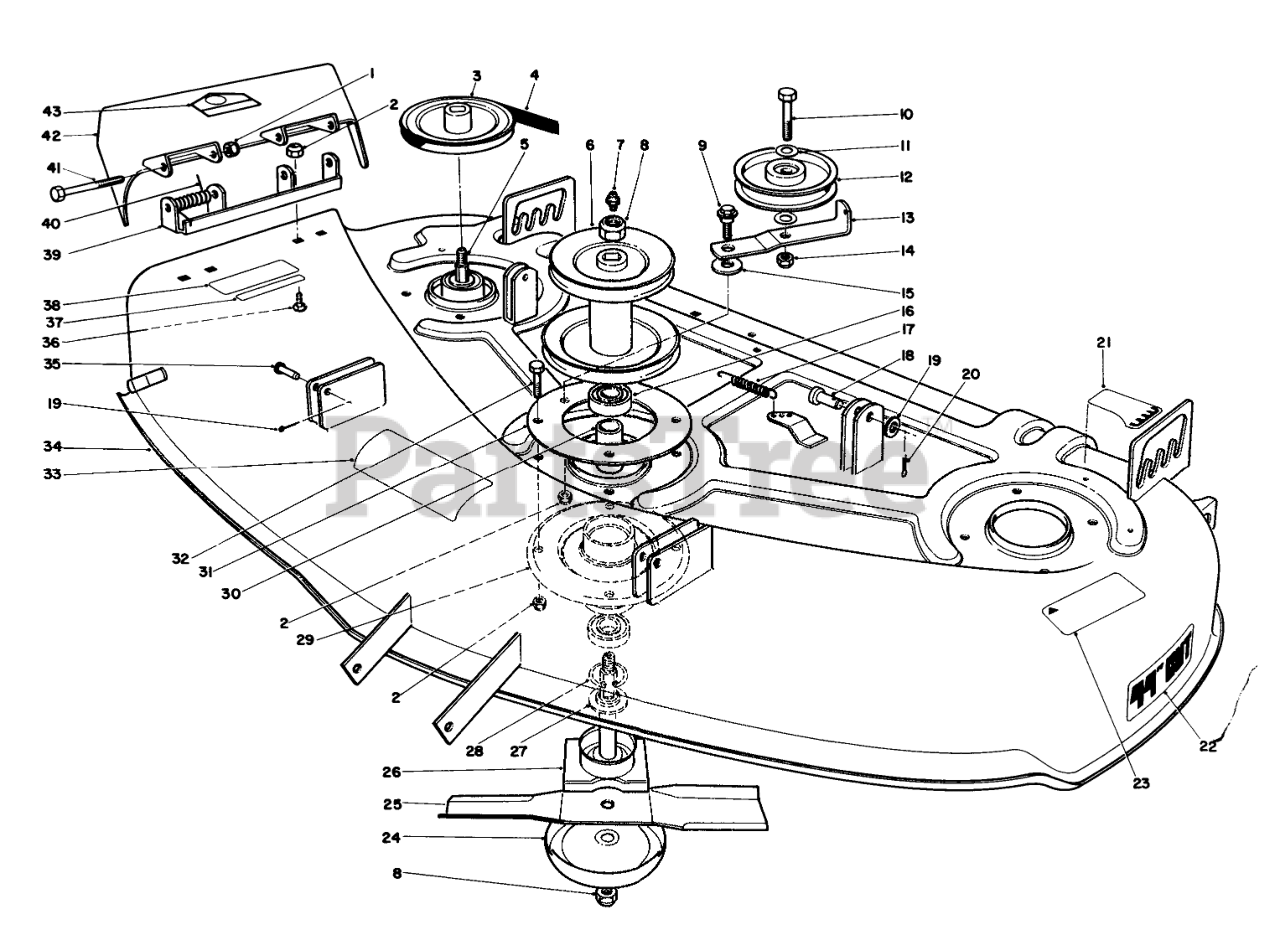

44" CUTTING DECK MODEL NO. 57358 Parts Diagram

  • Title

1

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 55-7690

DECK PULLEY

$

$

Not available

4

Toro 57-6990

V-BELT, ENG/DECK

$45.99

$

Usually ships in 3-6 days

0

5

Toro 47-0094

SPDL/BLD RET.WA

$

$

Not available

6

Toro 57-6600

PULLEY WA B

$

$

Not available

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

9

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 36-3220

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0

13

Toro 57-6520

DECK DR IDLER ARM B

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

16

Toro 251-318

BEARING-BALL

$17.99

$

Usually ships in 3-6 days

0

17

Toro 57-6540

SPRING-EXTENSION

$

$

Not available

18

Toro 283-10

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

21

Toro 57-6940

Decal

$

$

Not available

22

Toro 57-4830

44" DECK DECAL

$

$

Not available

23

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

24

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

25

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

In Stock, Qty 15

0

26

Toro 47-0093

SPDL/BLD RET.WA

$

$

Not available

27

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

28

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

29

Toro 54-0160

Spindle Tube

$

$

Not available

30

Toro 55-7680

BEARING SPACER

$

$

Not available

31

Toro 55-8280

DECK RING
(Superseded to 55-8280-01)

$

$

Not available

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 57-7010

BELT ROUTING DECAL

$

$

Not available

34

Toro 57-4840

44" DECK WA B

$

$

Not available

35

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

36

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

37

Toro 36-3400

DECAL-NO STEP
(Superseded to 93-6687)

$18.99

$

Usually ships in 3-6 days

0

38

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

39

Toro 55-8320

PIVOT BRKT WA R/B

$

$

Not available

40

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

41

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

42

Toro 57-6980

DEFLECTOR/DECAL ASM (44")(BLACK)

$

$

Not available

43

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0
