57356 (11-42) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) SPINDLE ASSEMBLY Parts Diagram

Lawn Tractor

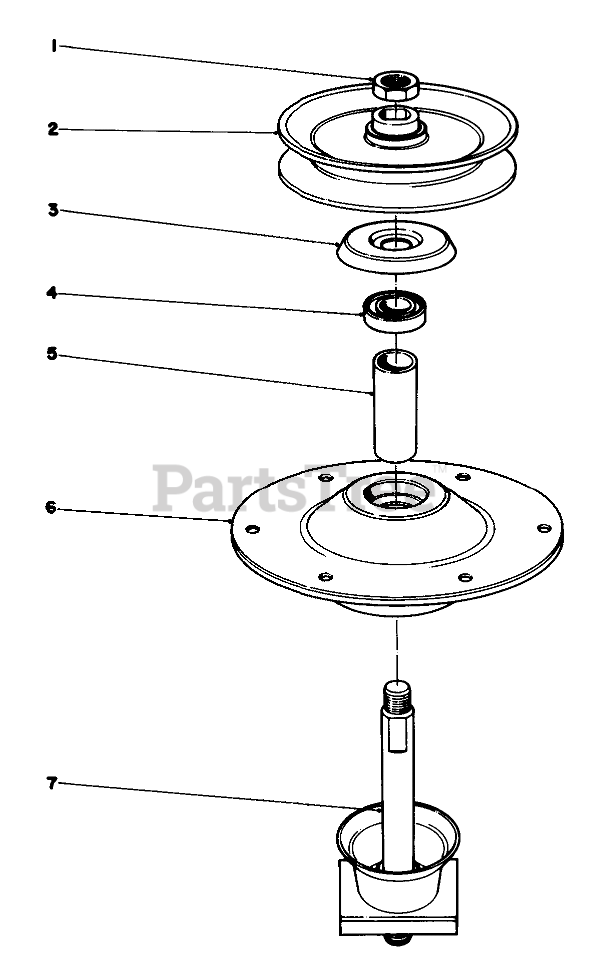

SPINDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

2

Toro 37-9390

PULLEY B

$

$

Not available

3

Toro 37-9470

Dust Cover
(Superseded to 39-7690)

$

$

Not available

4

Toro 37-9500

Bearing
(Superseded to 37-0200)

$

$

Not available

5

Toro 37-9490

SPACER

$

$

Not available

6

Toro 37-9510

Housing
(Superseded to 92-7994)

$777.99

$

Usually ships in 3-6 days

0

7

Toro 37-9480

SHAFT & SADDLE ASM

$

$

Not available
