57356 (11-42) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

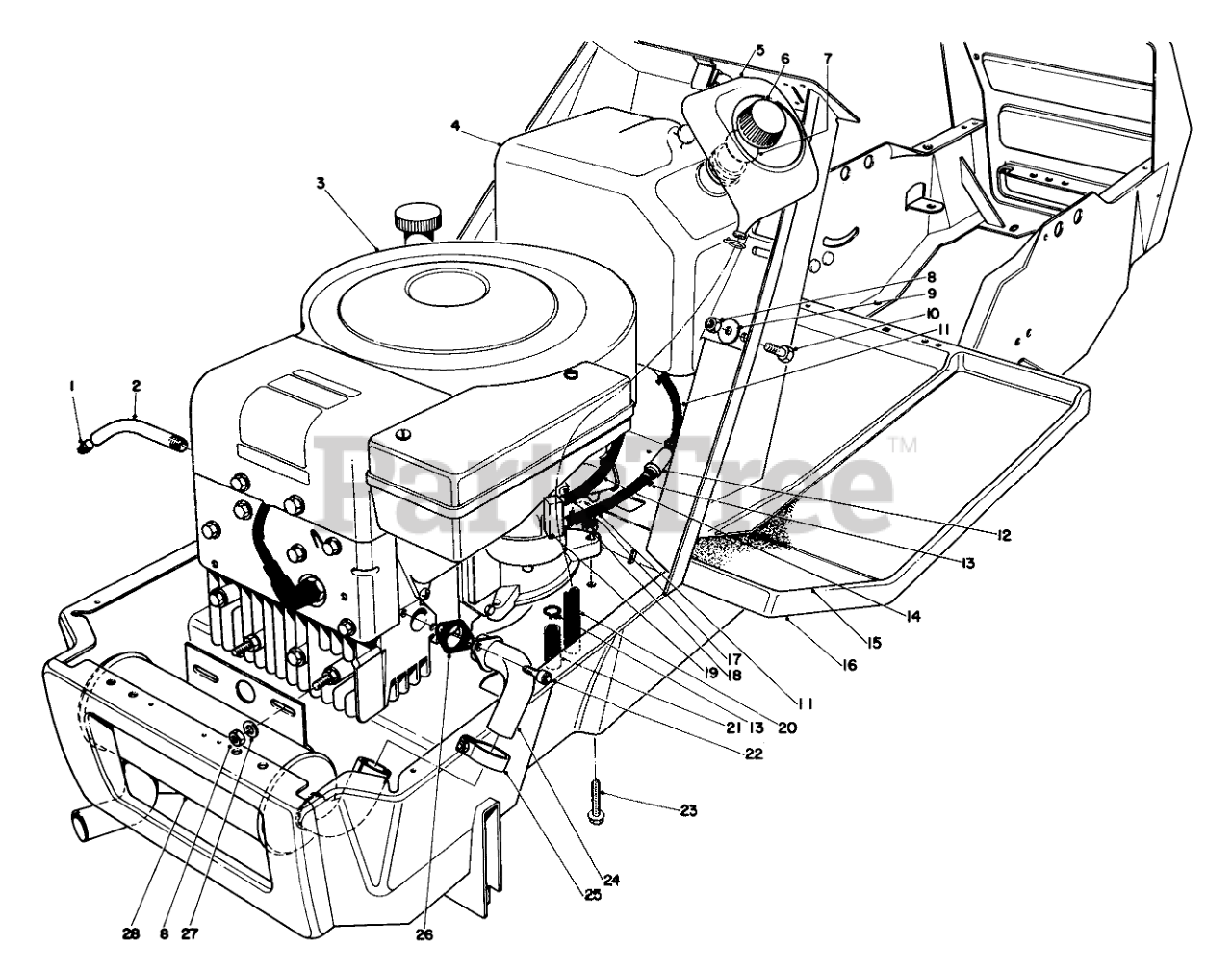

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

2

Toro 28-8650

OIL DRAIN TUBE

$

$

Not available

3

Toro 221-587

Engine

$

$

Currently unavailable

4

Toro 36-3350

Gas Tank (Incl. Ref. #5)
(Superseded to 13-0479)

$289.99

$

In Stock, only 1 left!

0

5

Toro 28-9450

Funnel Overflow
(Superseded to 13-0479)

$289.99

$

In Stock, only 1 left!

0

6

Toro 28-9680

Gas Cap Assembly (Incl. Ref. #7)
(Superseded to 42-0682)

$

$

Not available

7

Toro 28-9670

Gasket Gas Cap
(Superseded to 20-4620)

$8.99

$

In Stock, Qty 6

0

8

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

9

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 9

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 33-2140

GAS HOSE

$

$

Not available

12

Toro 2210-186

Fuel Filter
(Superseded to 38-8700)

$

$

Not available

13

Toro 2412-62

HOSE CLAMP

$

$

Not available

14

Toro 29-7870

Gas Return Hose
(Superseded to 42-5200)

$

$

Not available

15

Toro 27-9050

LH FOOT TREAD

$

$

Not available

Toro 27-9040

RH FOOT TREAD

Note: Not illustrated

$

$

Not available

16

Toro 36-2100

Frame

$

$

Not available

17

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

19

Toro 33-2260

Fitting Carburetor

$

$

Not available

20

Toro 28-9460

Hose Funnel
(Superseded to 39-4030)

$

$

Not available

21

Toro 284180

Hose Carburetor Drain

$

$

Currently unavailable

22

Toro 3274-53

SCREW-HSH

$

$

Not available

23

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Toro 28-0290

10 HP EXHAUST PIPE WA

$

$

Not available

25

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

26

Gasket Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 28-0300

EXHAUST MUFFLER 10 HP

$453.99

$

Usually ships in 3-6 days

0
