57356 (11-42) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) CUTTING DECK Parts Diagram

Lawn Tractor

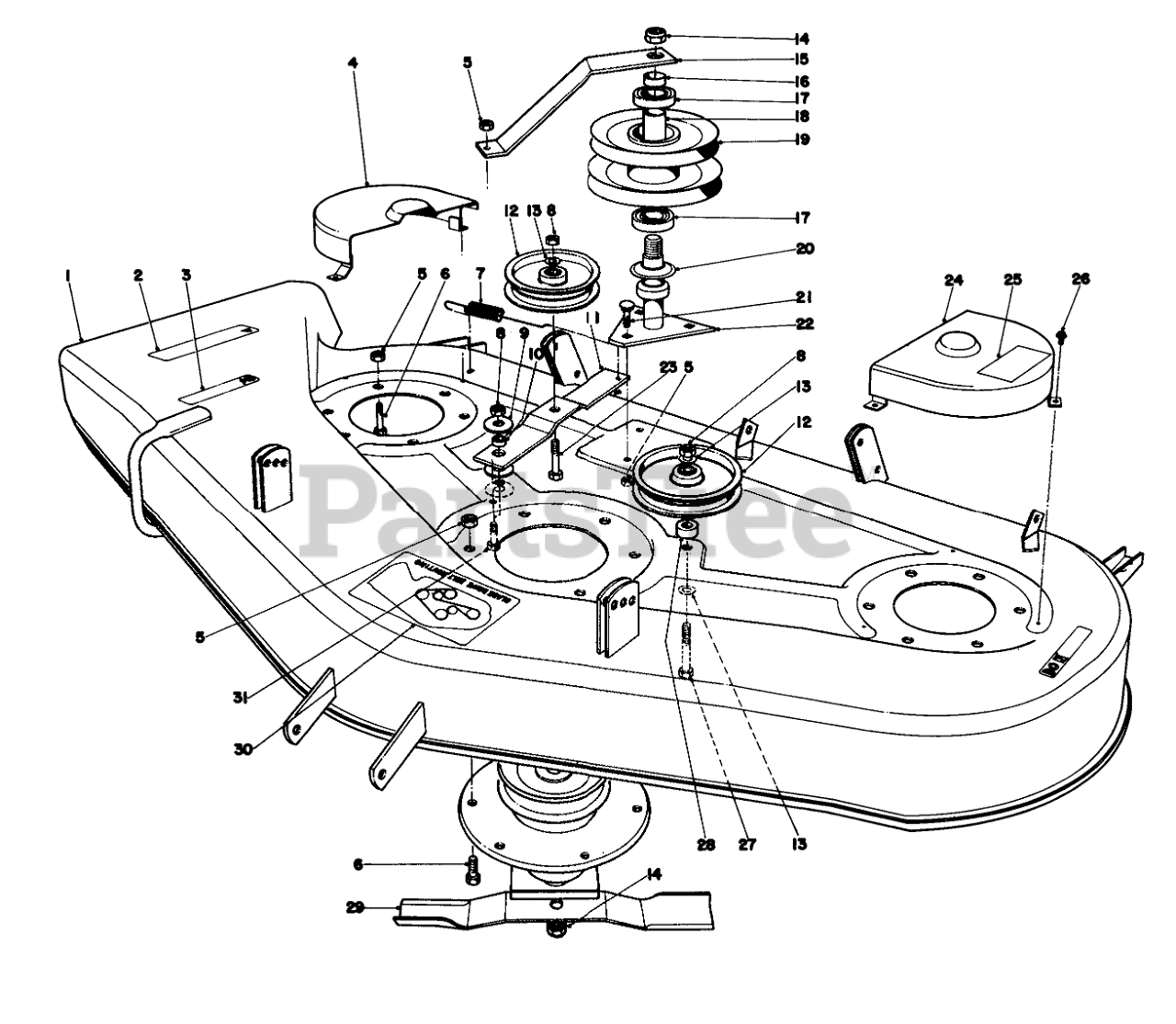

CUTTING DECK Parts Diagram

  • Title
1

$

$

Not available

2

Toro 36-3410

CAUTION DECAL

$

$

Not available

3

Toro 36-3400

DECAL-NO STEP
(Superseded to 93-6687)

$18.99

$

Usually ships in 3-6 days

0

4

Toro 37-9330

RH BELT COVER WA B

$

$

Not available

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

7

Toro 36-8040

EXT SPRING O

$

$

Not available

8

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

9

Toro 36-8020

WASHER

$

$

Not available

10

Toro 36-1430

IDLER BRKT SPACER

$17.99

$

Usually ships in 3-6 days

0

11

Toro 36-1400

Idler Pulley Bracket

$

$

Not available

12

Toro 36-3220

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0

13

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

15

Toro 36-1460

Support Spindle

$

$

Not available

16

Toro 37-0180

SPACER

$

$

Not available

17

Toro 37-0200

BEARING

$

$

Not available

18

Toro 37-0190

SPACER

$

$

Not available

19

Toro 37-0210

Pulley & Bearing Assembly

$

$

Not available

20

Toro 38-0470

DUST COVER

$

$

Not available

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 37-0220

SHAFT SADDLE ASM

$

$

Not available

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 37-9340

LH BELT COVER WA B

$

$

Not available

25

Toro 36-4240

Decal Wheel Adjustment

$

$

Not available

26

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 36-8030

SPACER O

$17.99

$

Usually ships in 3-6 days

0

29

Toro 36-1790

Blade
(Superseded to 36-1790-03)

$

$

Not available

30

Toro 36-5360

Decal Belt Routing

$

$

Not available

31

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

Toro 8-1549

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
