57356 (11-42) - Toro Lawn Tractor (SN: 005000001 - 005999999) (1985) WEIGHT BOX ASSEMBLY MODEL NO. 59138 (OPTIONAL) Parts Diagram

Lawn Tractor

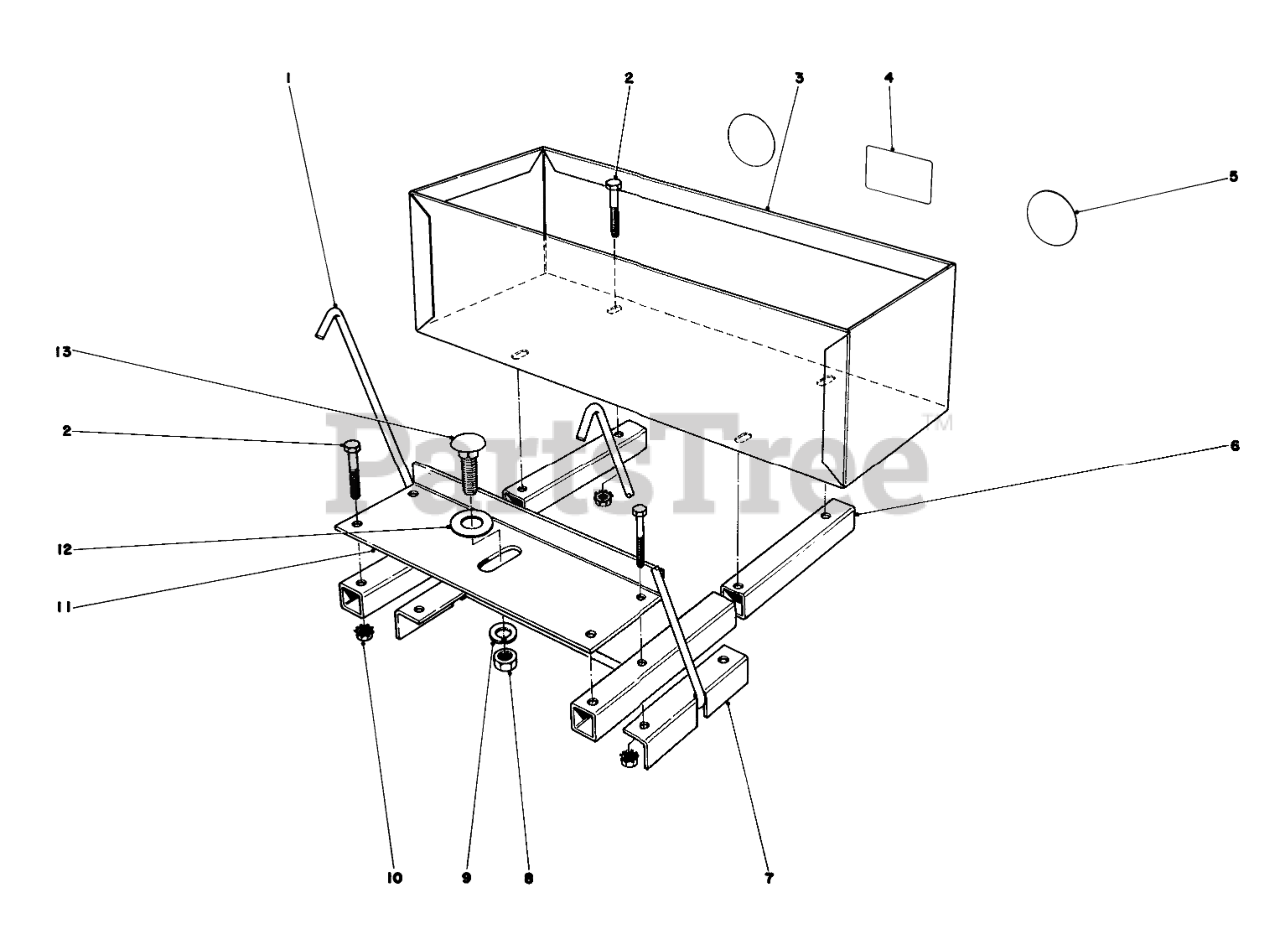

WEIGHT BOX ASSEMBLY MODEL NO. 59138 (OPTIONAL) Parts Diagram

  • Title
1

Toro 40-0640

Bracket-Support

$

$

Not available

2

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Toro 40-0600

Weight Box

$

$

Not available

4

Toro 40-0650

Decal-Weight Box

$

$

Not available

5

Toro 40-0590

Reflector

$

$

Not available

6

Toro 40-0620

Tube-Mounting

$

$

Not available

7

Toro 40-0630

Bracket-Mounting

$

$

Not available

8

Toro 3217-23

NUT-HEX

$

$

Not available

9

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

10

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

11

Toro 40-0610

Bracket-Mounting

$

$

Not available

12

Toro 3-1000

Washer

$

$

Not available

13

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0
