57356 (11-42) - Toro Lawn Tractor (SN: 004000001 - 004999999) (1984) TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

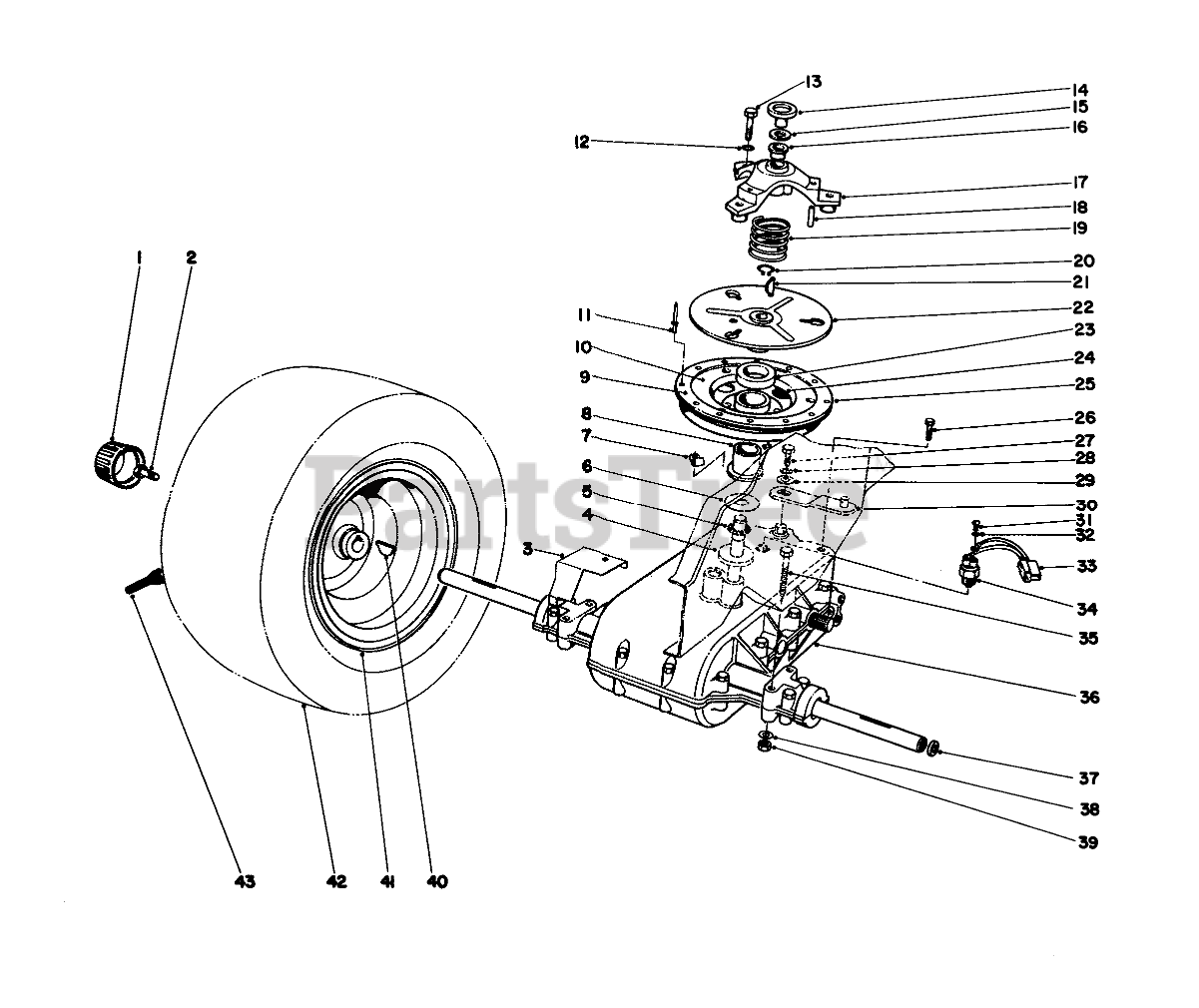

TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 28-0060

Cap-Hub
(Superseded to 61-9780)

$7.99

$

In Stock, Qty 20+

0

2

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

3

Toro 29-6940

GRASS SHIELD B

$

$

Not available

4

Toro 39-4770

SPACER

$

$

Not available

5

Toro 252-58

NEEDLE BRG

$43.99

$

Usually ships in 3-6 days

0

6

Toro 27-8820

THRUST WASHER

$

$

Not available

7

Toro 18-2970

Clamp (Incl. with Main Wire Harness)

$9.99

$

In Stock, only 4 left!

0

9

Toro 27-8800

CLUTCH PAD

$

$

Not available

10

Toro 40-4630

RETAINER RING R

$

$

Not available

11

Toro 3295-13

Rivet
(Superseded to 60-9220)

$

$

Not available

12

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

13

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 36-2130

CLUTCH CAP

$28.99

$

In Stock, only 1 left!

0

15

Toro 252-94

THRUST RACE

$9.49

$

In Stock, only 2 left!

0

16

Toro 256-259

BUSHING-FLANGE

$3.99

$

In Stock, only 1 left!

0

17

Toro 28-2560

Clutch Cover (Incl. Ref. #16 & 18)

$

$

Not available

18

Toro 252-92

NEEDLE BRG

$28.99

$

Usually ships in 3-6 days

0

19

Toro 36-2220

COMPRESSION SPRING

$

$

Not available

20

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

21

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

22

Toro 27-9030

Clutch Plate

$

$

Not available

23

Toro 284220

Felt Washer

$

$

Currently unavailable

24

$

$

Not available

25

Toro 11-0119

Sheave Assembly (Incl. Ref. #8-11)

$

$

Not available

26

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

27

Toro 329-2

SCREW-HH

$

$

Not available

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 28-2380

SHIFT LEVER WA B

$

$

Not available

31

Toro 3250-28

SCREW

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

33

Toro 52-1970

WIRE HARNESS

$

$

Not available

34

Toro 49-8300

NEUTRAL SWITCH

$

$

Not available

35

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

36

Toro 42-5160

Transaxle

$

$

Not available

37

Toro 37-4700

SPACER-WHEEL

$45.99

$

Usually ships in 3-6 days

0

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

$9.49

$

In Stock, only 1 left!

0

41

Toro 47-5150

WHEEL ASM

$

$

Not available

42

$

$

Not available

43

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

Toro 232-41

Tube
(Superseded to 232-37)

Note: Not illustrated

$33.99

$

In Stock, only 1 left!

0
