57356 (11-42) - Toro Lawn Tractor (SN: 003000001 - 003999999) (1983) TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

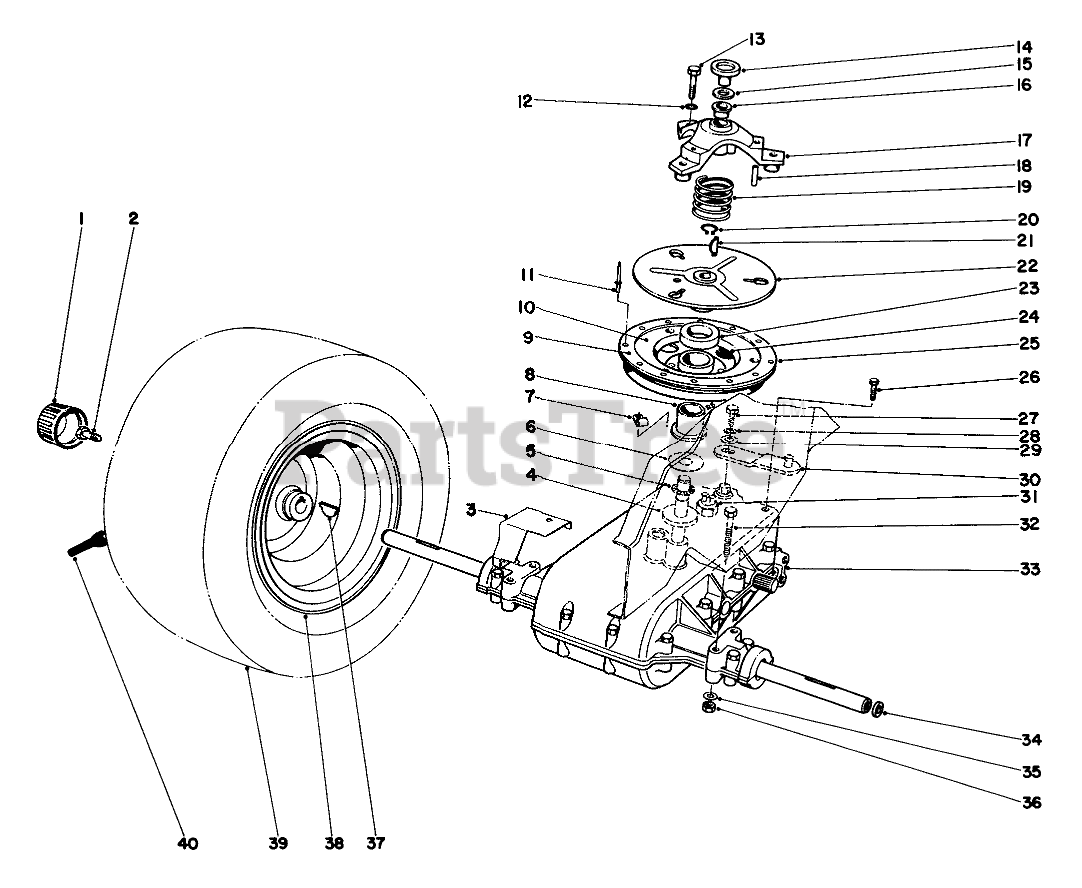

TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 28-0060

Cap-Hub
(Superseded to 61-9780)

$7.99

$

In Stock, Qty 20+

0

2

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

3

Toro 29-6940

GRASS SHIELD B

$

$

Not available

4

Toro 39-4770

SPACER

$

$

Not available

5

Toro 252-58

NEEDLE BRG

$43.99

$

Usually ships in 3-6 days

0

6

Toro 27-8820

THRUST WASHER

$

$

Not available

7

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

9

Toro 27-8800

CLUTCH PAD

$

$

Not available

10

Toro 40-4630

RETAINER RING R

$

$

Not available

11

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

12

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

13

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 36-2130

CLUTCH CAP

$28.99

$

In Stock, only 1 left!

0

15

Toro 252-94

THRUST RACE

$9.49

$

In Stock, only 2 left!

0

16

Toro 256-259

BUSHING-FLANGE

$3.99

$

In Stock, only 1 left!

0

17

Toro 28-2560

Clutch Cover (Incl. Ref. #16 & 18)

$

$

Not available

18

Toro 252-92

NEEDLE BRG

$28.99

$

Usually ships in 3-6 days

0

19

Toro 36-2220

COMPRESSION SPRING

$

$

Not available

20

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

21

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

22

Toro 27-9030

Clutch Plate

$

$

Not available

23

Toro 28-4220

WASHER FELT

$

$

Not available

24

$

$

Not available

25

Toro 11-0119

Sheave Assembly (Incl. Ref. #8-11)

$

$

Not available

26

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

27

Toro 329-2

SCREW-HH

$

$

Not available

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 28-2380

SHIFT LEVER WA B

$

$

Not available

31

Toro 28-4250

NEUTRAL SWITCH

$46.99

$

Usually ships in 3-6 days

0

32

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

33

Toro 42-5160

Transaxle

$

$

Not available

34

Toro 37-4700

SPACER-WHEEL

$45.99

$

Usually ships in 3-6 days

0

35

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

37

Toro 3257440

Hi Pro Key

$

$

Currently unavailable

38

Toro 47-5150

WHEEL ASM

$

$

Not available

39

$

$

Not available

40

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

Toro 232441

Tube Optional

Note: Not illustrated

$

$

Currently unavailable
