57356 (11-42) - Toro Lawn Tractor (SN: 001000001 - 001999999) (1981) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

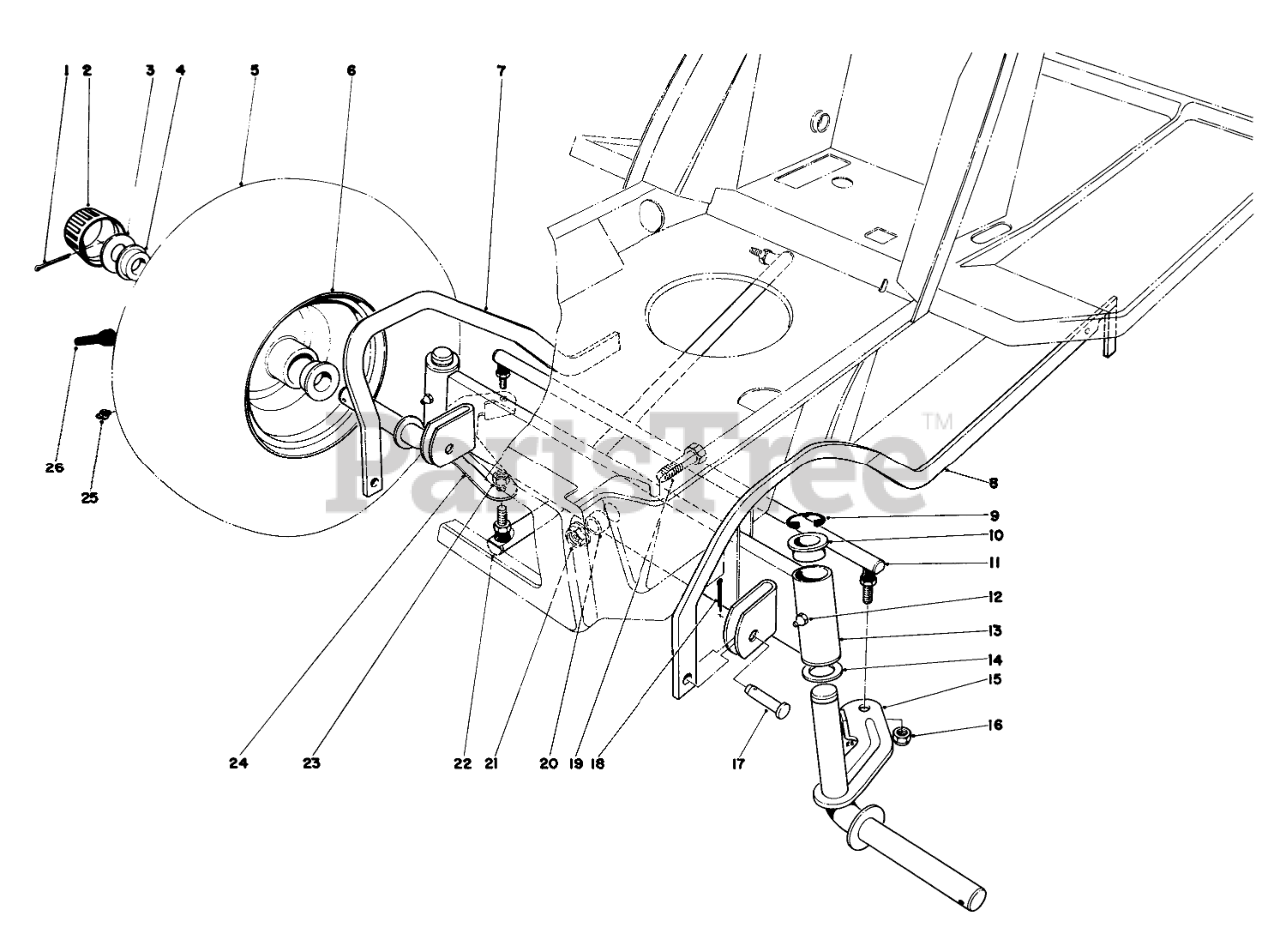

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

2

Toro 28-0060

Cap-Hub
(Superseded to 61-9780)

$7.99

$

In Stock, Qty 20+

0

3

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

4

Toro 251-210

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 3 left!

0

5

Toro 231-99

FRONT TIRE

$

$

Not available

6

Toro 242-65

FRONT RIM

$

$

Not available

7

Toro 40-1610

R/F SCISSORS LINK WAB

$

$

Not available

8

Toro 40-1620

LF SCISSORS LINK WAB

$

$

Not available

9

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

10

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

11

Toro 28-0070

Tie Rod Steering
(Superseded to 47-5160)

$

$

Not available

12

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

13

Toro 36-3420

Front Axle (Incl. Ref. #10)

$

$

Not available

14

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

15

Toro 33-3170

LH SPINDLE WA PP

$

$

Not available

16

Toro 32146-4

NUT-LOCK NI

$

$

Not available

17

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

18

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

19

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

20

Toro 28-0380

SPACER-AXLE, FRONT

$3.49

$

Usually ships in 3-6 days

0

21

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

22

Toro 39-1910

STEERING ARM B

$

$

Not available

23

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

24

Toro 33-3180

RH SPINDLE WA PP

$

$

Not available

25

Toro 302-22

FITTING-GREASE

$13.99

$

Usually ships in 3-6 days

0

26

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

Toro 232-39

TUBE-INNER

Note: Not illustrated

$31.99

$

In Stock, only 1 left!

0
