57356 (11-42) - Toro Lawn Tractor (SN: 001000001 - 001999999) (1981) 36" SNOWTHROWER ATTACHMENT MODEL 59136 Parts Diagram

Lawn Tractor

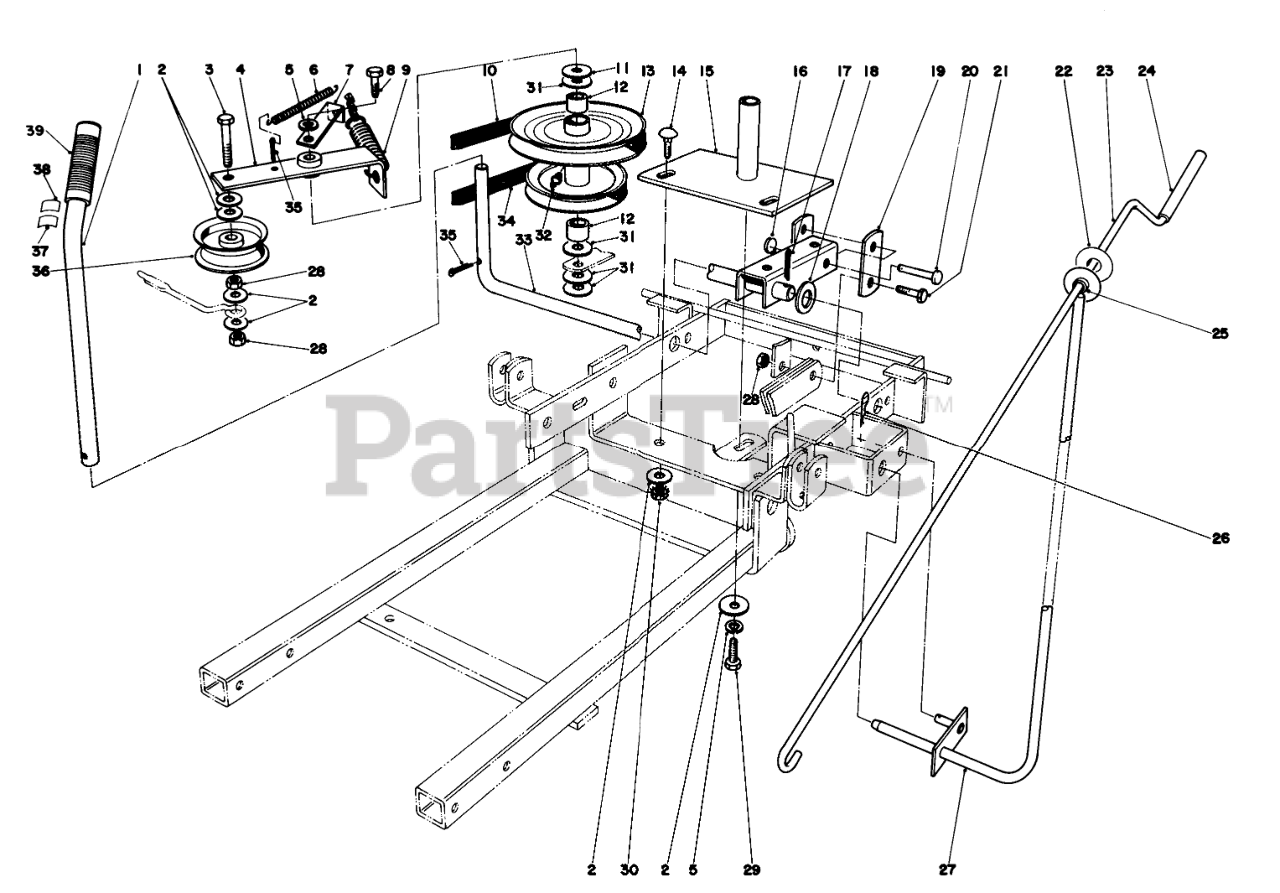

36" SNOWTHROWER ATTACHMENT MODEL 59136 Parts Diagram

  • Title
1

Toro 40-1010

Lift Handle

$

$

Not available

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

4

Toro 40-1250

Idler Arm

$

$

Not available

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 40-1280

Spring-Detent

$

$

Not available

7

Toro 40-1270

Bracket-Spring Anchor

$

$

Not available

8

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

9

Toro 40-0730

Spring

$

$

Not available

10

Toro 40-1380

V-BELT

$

$

Not available

11

Toro 40-0740

Washer

$

$

Not available

12

Toro 40-1230

Roller Bearings

$

$

Not available

13

Toro 40-1240

PULLEY HSG WA

$

$

Not available

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

15

Toro 40-1210

Mounting Bracket-Pulley

$

$

Not available

16

Toro 40-1310

Spring Clip

$

$

Not available

17

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

18

Toro 40-0970

Spacer

$

$

Not available

19

Toro 40-0960

Strap-Lift Link

$

$

Not available

20

Toro 40-0950

Pin-Clevis, Handle

$

$

Not available

21

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 40-1410

Decal-Spout Rotation

$

$

Not available

23

Toro 40-1110

Rod-Deflector Control

$

$

Not available

24

Toro 40-1100

Grip-Handle

$

$

Not available

25

Toro 40-1080

Nylon Bushing

$

$

Not available

26

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

27

Toro 40-1090

Crank Rod Support (Incl. Ref. #22 & 25)

$

$

Not available

28

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

29

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

31

Toro 3-1000

Washer

$

$

Not available

32

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

33

Toro 40-1000

Lift Bar

$

$

Not available

34

Toro 40-1390

V-Belt

$

$

Not available

35

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

36

Toro 40-1260

IDLER PULLEY ASM

$

$

Not available

37

Toro 40-1020

Decal-Lift Control

$

$

Not available

38

Toro 40-1030

Decal-Raise & Lower

$

$

Not available

39

Toro 235-21

GRIP-HANDLE

$

$

Not available
