57356 (11-42) - Toro Lawn Tractor (SN: 000000001 - 000999999) (1980) MOWER LIFT ASSEMBLY Parts Diagram

Lawn Tractor

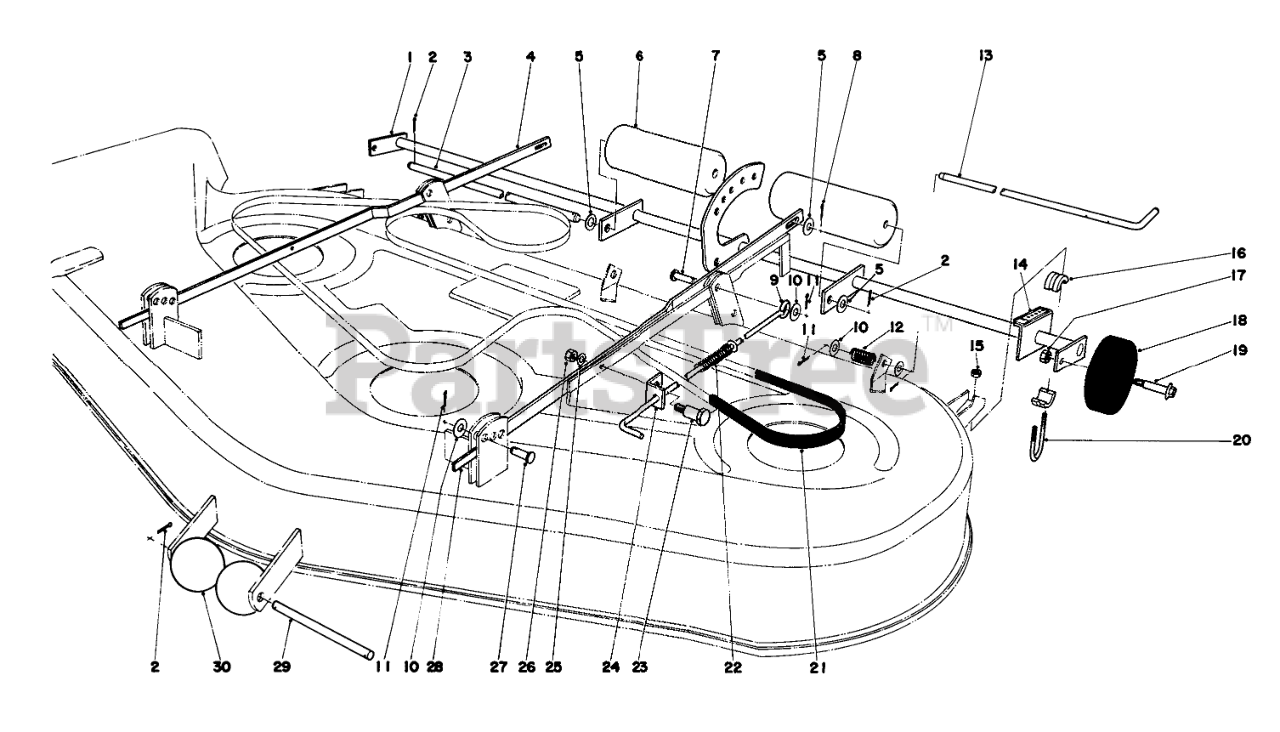

MOWER LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 38-1380

DECK WHL SHAFT WA B

$

$

Not available

2

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Toro 36-1360

ROLLER SHAFT B

$87.99

$

Usually ships in 3-6 days

0

4

Toro 36-3450

RR SCISSORS LNK B

$

$

Not available

5

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

7

Toro 283-10

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

8

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

9

Toro 38-0890

Pin Tension

$

$

Not available

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

12

Toro 3-3251

Spring

$

$

Not available

13

Toro 36-1710

WHEEL LATCH ROD B

$60.99

$

Usually ships in 3-6 days

0

14

Toro 38-1340

Decal-Height of Cut

$

$

Not available

15

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

16

Toro 36-1310

BEARING DECK SH WHEEL

$

$

Not available

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 29-6010

DECK WHEEL

$

$

Not available

19

Toro 3-2652

Bolt

$

$

Not available

20

Toro 298-11

U-BOLT

$

$

Not available

21

Toro 36-2930

V-BELT, DECK

$112.99

$

Usually ships in 3-6 days

0

22

Toro 38-0860

COMP SPRING

$

$

Not available

23

Toro 38-0930

Bolt-Shoulder

$

$

Not available

24

Toro 38-0820

TENSION BELT BRKT B

$

$

Not available

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

27

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

28

Toro 36-3460

Scissors Link Rear L.H.

$

$

Not available

29

Toro 7-0277

ROLLER SHAFT

$

$

Not available

30

Toro 294820

Roller

$

$

Currently unavailable
