57356 (11-42) - Toro Lawn Tractor (SN: 000000001 - 000999999) (1980) ENGINE BRIGGS & STRATTON MODEL 252707-0177-01 Parts Diagram

Lawn Tractor

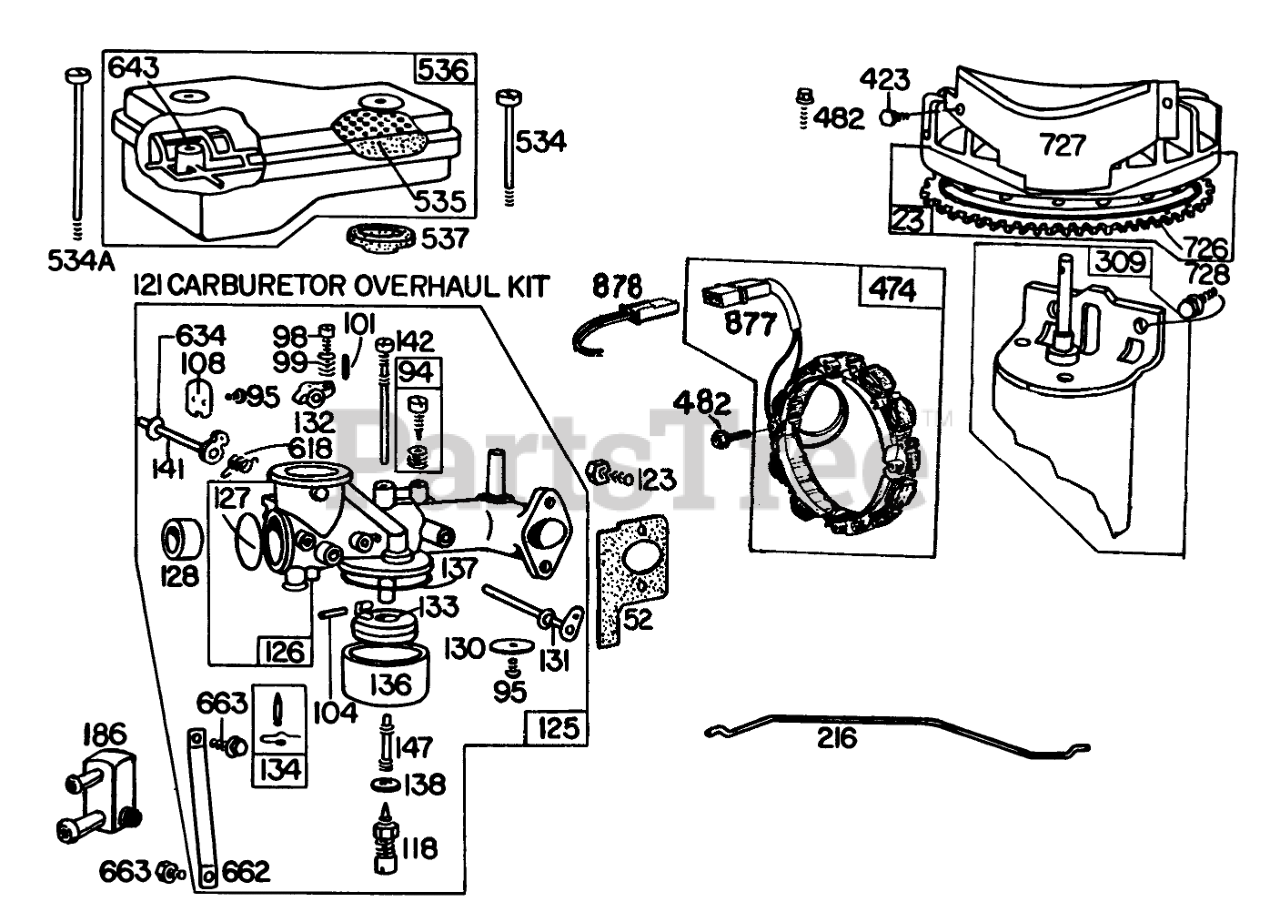

ENGINE BRIGGS & STRATTON MODEL 252707-0177-01 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$

$

Not available

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

Note: Included in Gasket Set-Part No. 393411.

$5.49

$

In Stock, Qty 10

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 391233

Valve-Needle
(Superseded to 396795)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$17.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 299852

Carburetor OverhauI Kit

$

$

Not available

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 393410

Carburetor Assembly
(Superseded to 491026)

$315.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 391787

Body Assy.-Carburetor

$

$

Not available

127

Briggs & Stratton 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211960

Venturi-Carburetor

$6.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 222858

Valve-Throttle
(Superseded to 222433)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 391512

Shaft & Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$

$

Not available

134

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$7.99

$

In Stock, only 3 left!

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$3.49

$

In Stock, Qty 17

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$4.99

$

In Stock, Qty 9

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 230932

Screw-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Not available

186

Toro 212327

Connector-Fuel pipe. Furnished by Equip. Mgr.

$

$

Currently unavailable

216

Briggs & Stratton 261274

Link-Choke

$9.99

$

Usually ships in 2-12 days

0

309

Motor-Starting (12 Volt) See chart on page 29 for replacement parts for Starting Motors.

$

$

Not available

423

Briggs & Stratton 93410

Screw

$7.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93622

Screw Air Cleaner

$6.49

$

In Stock, Qty 10

0

534A

Briggs & Stratton 93323

Screw-AirCleaner

$7.49

$

In Stock, only 1 left!

0

535

Briggs & Stratton 270843

Element-Air Cleaner
(Superseded to 270843S)

$17.99

$

In Stock, only 2 left!

0

536

Briggs & Stratton 391786

Cleaner Assembly-Air

$

$

Not available

537

Briggs & Stratton 270853

Gasket-Air Cleaner

$9.49

$

In Stock, only 1 left!

0

618

Briggs & Stratton 261116

Spring Choke

$

$

Not available

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

643

Briggs & Stratton 280118

Support-Element

$45.99

$

In Stock, only 2 left!

0

662

Briggs & Stratton 222311

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

726

Briggs & Stratton 392134

Gear-Ring (Includes Mounting Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 390233

Starter Pinion Cover
(Superseded to 395405)

$

$

Not available

728

Briggs & Stratton 93523

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 393362

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0
