57351 - Toro 32" Lawn Tractor (SN: 007000001 - 007999999) (1977) SHIFT & CLUTCH ASSEMBLY Parts Diagram

32" Lawn Tractor

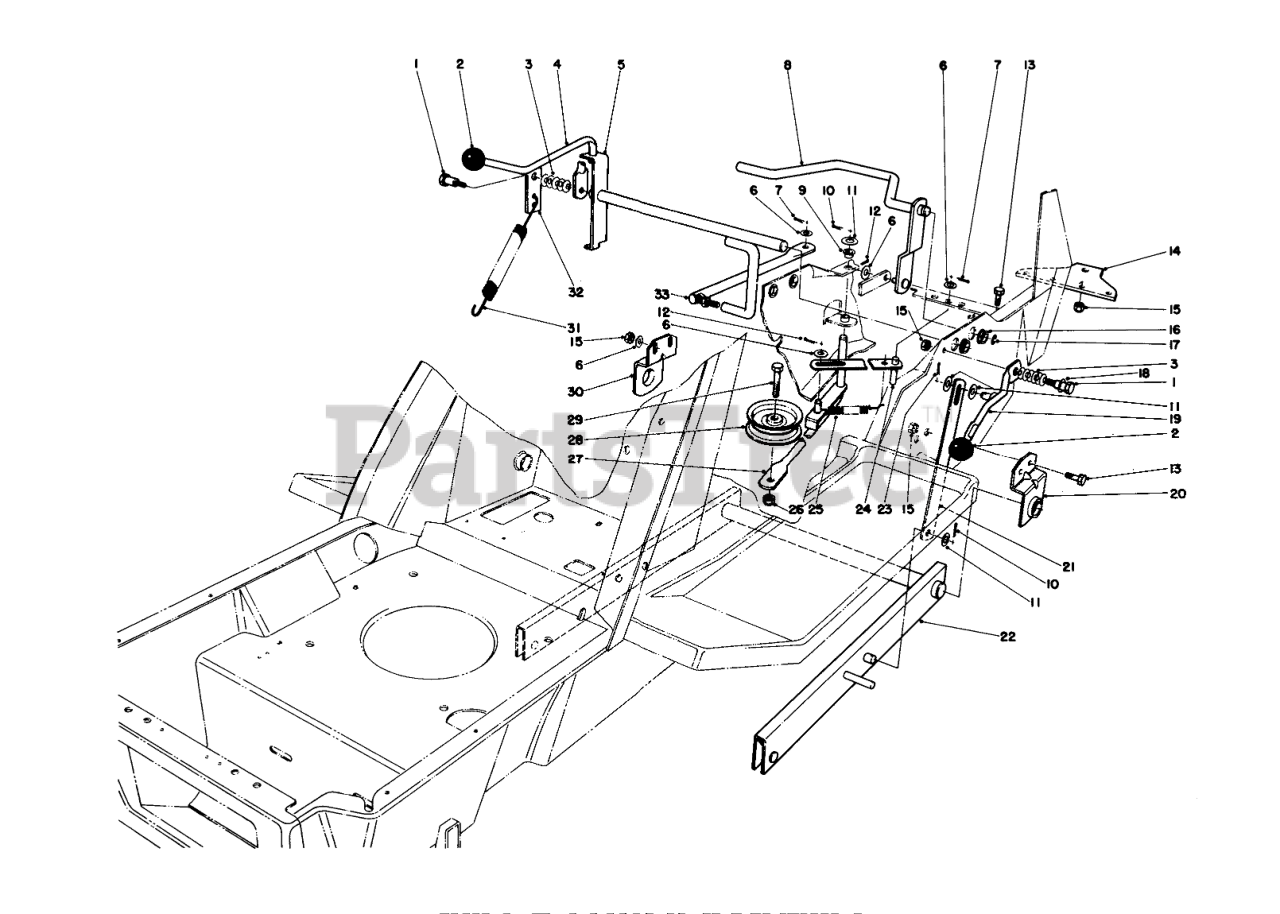

SHIFT & CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

2

$13.99

$

Usually ships in 3-6 days

0

3

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

4

Toro 28-2190

SHIFT LEVER BO

$

$

Not available

5

Toro 28-2590

Shim Lever

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 27-9090

CLUTCH ACTUATOR WA B

$

$

Not available

9

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

10

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

13

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro 28-2250

HITCH PLATE R

$

$

Not available

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

16

Toro 256-258

Nyliner
(Superseded to 86-9320)

$9.49

$

Usually ships in 3-6 days

0

17

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

18

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

19

Toro 28-2180

HOC HANDLE WA B

$

$

Not available

20

Toro 28-4050

LH PIVOT BAR RET B

$

$

Not available

21

Toro 28-0400

H.O.C. STRAP B

$

$

Not available

22

Toro 27-9180

Bar-Pivot
(Superseded to 27-9180-01)

$

$

Not available

23

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

24

Toro 28-2270

SPRING RET WA B

$

$

Not available

25

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

26

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

27

Toro 28-0500

IDLER ARM WA BO

$

$

Not available

28

Toro 28-4070

Pulley-Idler
(Superseded to 36-1020)

$

$

Not available

29

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 28-4060

RH PIVOT BAR RET B

$

$

Not available

31

Toro 27-8960

TRACTION SPRING

$

$

Not available

32

Toro 28-9400

BRKT-COBALANCE SPRING

$

$

Not available

33

Toro 28-2210

SHIFT ARM BO

$190.99

$

Usually ships in 3-6 days

0
