57351 - Toro 32" Lawn Tractor (SN: 007000001 - 007999999) (1977) REAR BODY & SEAT ASSEMBLY Parts Diagram

32" Lawn Tractor

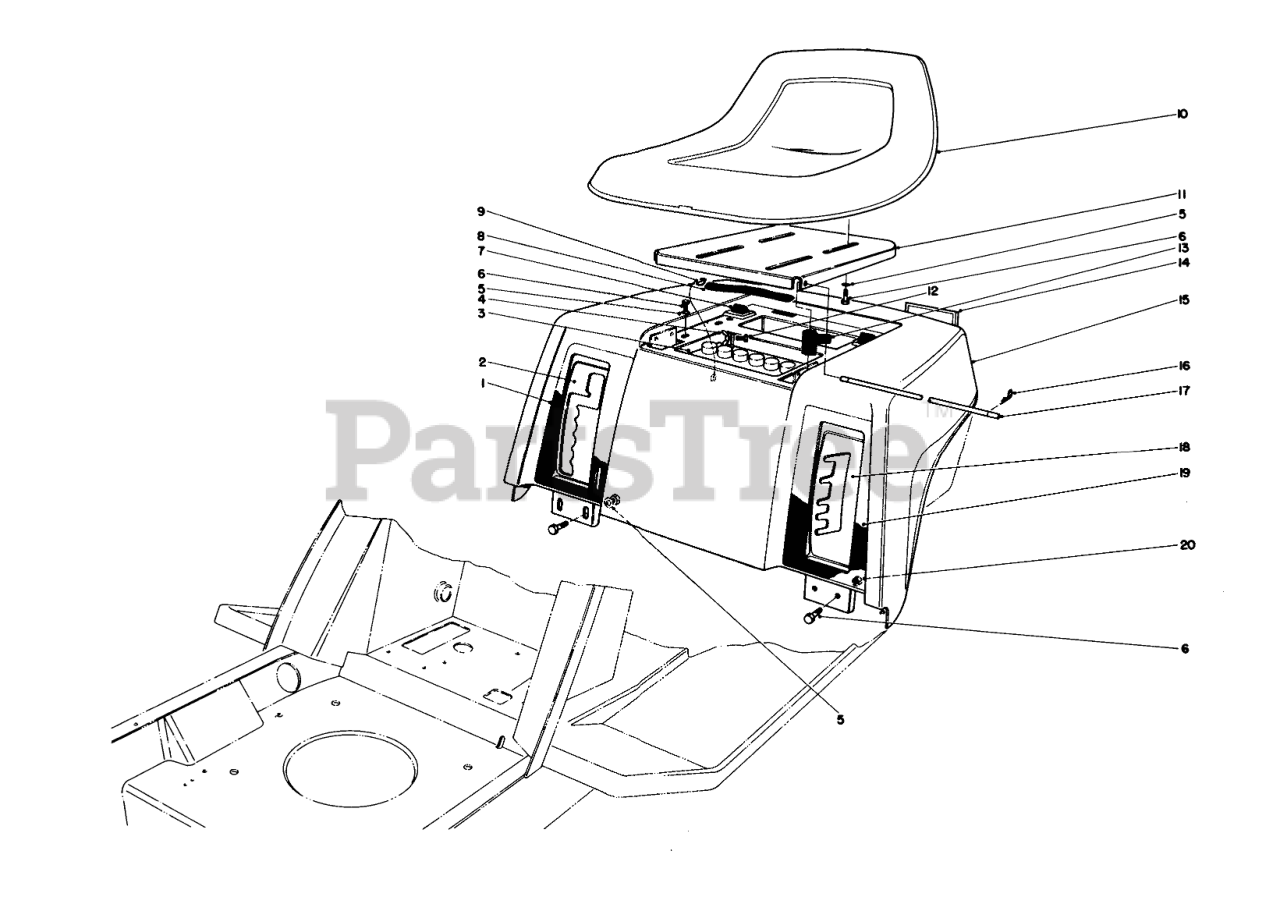

REAR BODY & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 28-4260

Decal Transmission
(Superseded to 63-5700)

$

$

Not available

2

Toro 28-0370

DETENT PLATE B

$

$

Not available

3

Toro 28-1400

BATTERY-DRY W/CARTON
(Superseded to 104-8162)

$

$

Not available

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

7

Toro 28-9440

SEAT BUMPER

$

$

Not available

8

Toro 28-4190

Battery Strap

$

$

Not available

9

Toro 28-4170

Hook

$

$

Not available

10

Toro 27-9060

Seat (Model #57351)
(Superseded to 38-0840)

$

$

Not available

Toro 28-9420

Seat (Model #57300)

Note: Not illustrated

$

$

Currently unavailable

11

Toro 28-5360

Seat Support

$

$

Not available

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

14

Toro 218-491

REFLECTOR

$

$

Not available

15

Toro 27-8850

Rear Body
(Superseded to 14-3379)

$

$

Not available

16

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Toro 28-2400

PIVOT-SEAT

$60.99

$

Usually ships in 3-6 days

0

18

Toro 28-0530

Quadrant Height of Cut

$

$

Not available

19

Toro 28-4270

Decal Height of Cut
(Superseded to 44-5840)

$

$

Not available

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0
