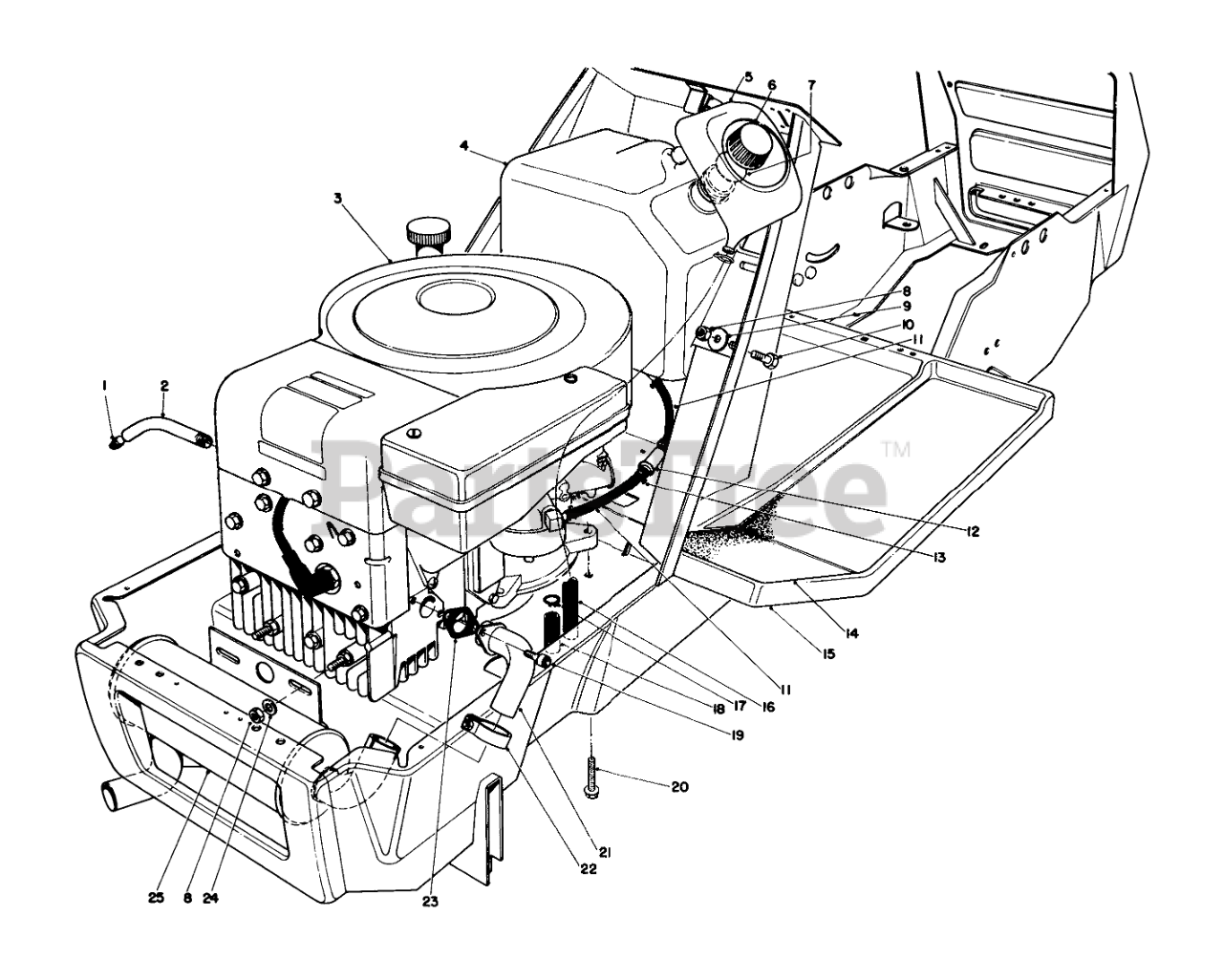

57351 - Toro 32" Lawn Tractor (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY Parts Diagram

32" Lawn Tractor

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

2

Toro 28-8650

OIL DRAIN TUBE

$

$

Not available

3

Toro 221-532

Engine (Model #57351)

$

$

Currently unavailable

Toro 221-521

Engine (Model #57300)

Note: Not illustrated

$

$

Currently unavailable

4

Toro 28-9430

Gas Tank
(Superseded to 13-0479)

$338.99

$

In Stock, only 1 left!

0

5

Toro 28-9450

Funnel Overflow
(Superseded to 13-0479)

$338.99

$

In Stock, only 1 left!

0

6

Toro 28-9680

Gas Cap (Incl. Ref. #7)
(Superseded to 42-0682)

$

$

Not available

7

Toro 28-9670

Gasket Gas Cap
(Superseded to 20-4620)

$10.99

$

In Stock, Qty 6

0

8

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

9

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 28-9510

Hose Gas

$

$

Not available

12

Toro 2210-181

Fuel Filter
(Superseded to 56-6360)

$6.49

$

In Stock, Qty 20+

0

13

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

14

Toro 27-9050

LH FOOT TREAD

$

$

Not available

Toro 27-9040

RH FOOT TREAD

Note: Not illustrated

$

$

Not available

15

Toro 28-2700

Frame

$

$

Currently unavailable

16

Toro 28-9460

Hose Funnel
(Superseded to 39-4030)

$

$

Not available

17

Toro 2412-62

HOSE CLAMP

$

$

Not available

18

Toro 28-4180

Hose Carburetor Drain
(Superseded to 39-4040)

$

$

Not available

19

Toro 3274-53

SCREW-HSH

$

$

Not available

Toro 3274-52

SCREW-HSH

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0

20

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

21

Toro 28-0290

10 HP EXHAUST PIPE WA

$

$

Not available

Toro 28-0170

Exhaust Pipe

Note: Not illustrated

$

$

Not available

22

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

Toro 28-4200

MUFFLER CLAMP

Note: Not illustrated

$

$

Not available

23

Toro 28-0260

Gasket Exhaust (Model #57351)

$

$

Not available

Toro 28-0160

Gasket Exhaust (Model #57300)

Note: Not illustrated

$

$

Not available

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 28-0300

EXHAUST MUFFLER 10 HP

$514.99

$

Usually ships in 3-6 days

0

Toro 27-9070

MUFFLER

Note: Not illustrated

$

$

Not available
