57351 - Toro 32" Lawn Tractor (SN: 007000001 - 007999999) (1977) BRAKE & CLUTCH PEDAL ASSEMBLY Parts Diagram

32" Lawn Tractor

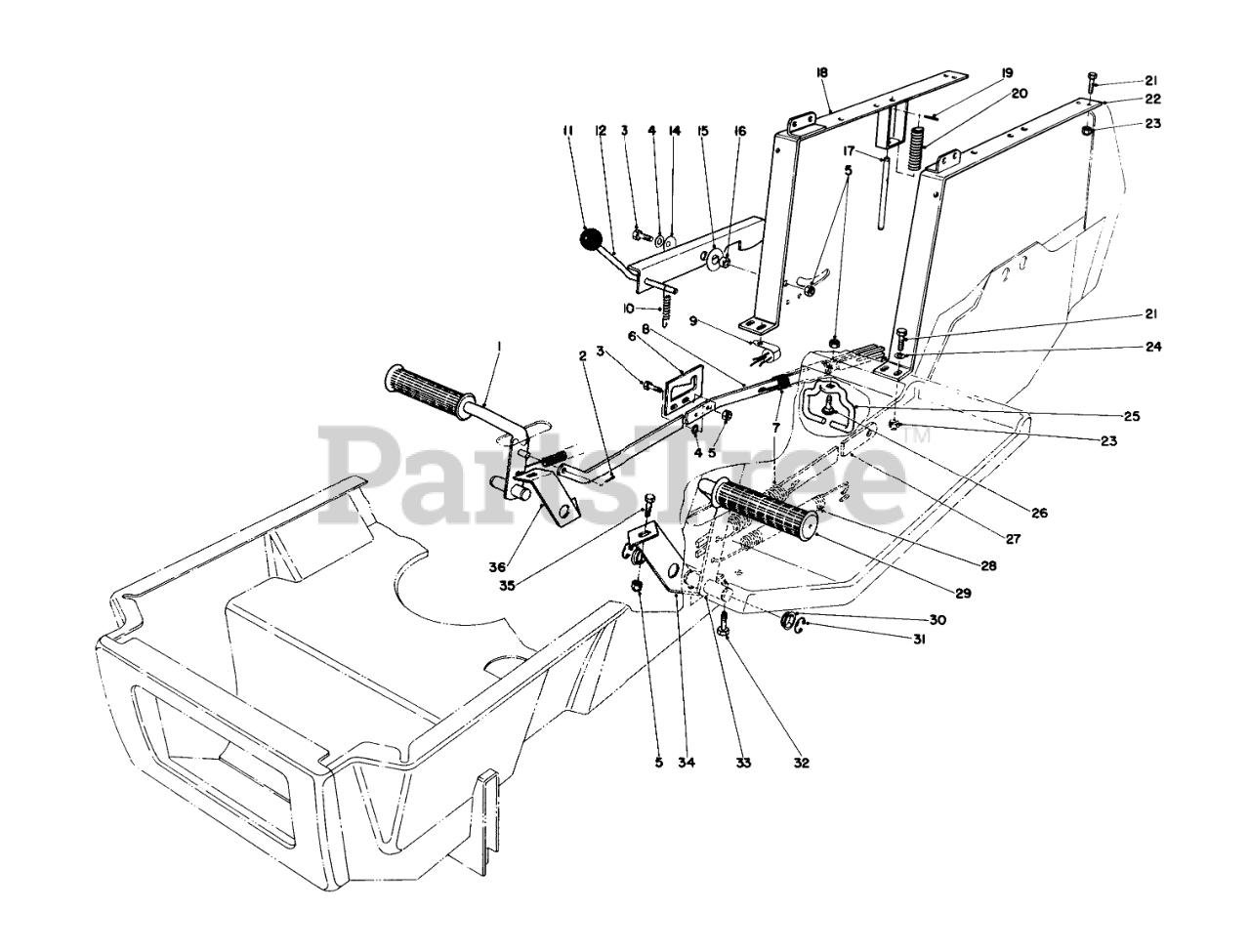

BRAKE & CLUTCH PEDAL ASSEMBLY Parts Diagram

  • Title
1

Toro 28-2530

BRAKE PEDAL WA BO

$

$

Not available

2

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

6

Toro 28-9370

LATCH PLT-BRAKE ROD

$

$

Not available

7

Toro 27-8950

EXT SPRING O

$

$

Not available

8

Toro 28-9350

LINK BRAKE ROD WAB

$

$

Not available

9

Toro 28-7890

Module Interlock
(Superseded to 95-0659)

$166.99

$

Usually ships in 3-6 days

0

10

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

11

$13.99

$

In Stock, only 4 left!

0

12

Toro 28-2570

PARKING BRAKE WA B

$

$

Not available

14

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

15

Toro 28-2450

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

16

Toro 28-2440

SPACER

$

$

Not available

17

Toro 28-2610

Pin-Seat Switch

$

$

Not available

18

Toro 28-2630

Strap-Rear Body R. H.

$

$

Not available

19

Toro 32121-8

PIN-ROLL, SLOTTED

$1.49

$

Usually ships in 3-6 days

0

20

Toro 18-9050

DECK IDLER SPRING

$

$

Not available

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 28-2640

Strap-Rear Body L.H.

$

$

Not available

23

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 29-4340

Belt Guide
(Superseded to 36-4760)

$

$

Not available

26

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

27

Toro 28-0430

CLUTCH ROD LINK B

$

$

Not available

28

Toro 27-8890

SPRING-EXTENSION

$47.99

$

Usually ships in 3-6 days

0

29

Toro 28-2470

FOOT PAD

$

$

Not available

30

Toro 256-258

Nyliner
(Superseded to 86-9320)

$9.49

$

Usually ships in 3-6 days

0

31

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

32

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

33

Toro 28-2520

CLUTCH PEDAL WA BO

$

$

Not available

34

Toro 28-0420

LH PEDAL SUPT B

$

$

Not available

35

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

36

Toro 28-0410

RH PEDAL SUPT B

$

$

Not available
