57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) REWIND STARTER NO. 590479 Parts Diagram

32" Lawn Tractor

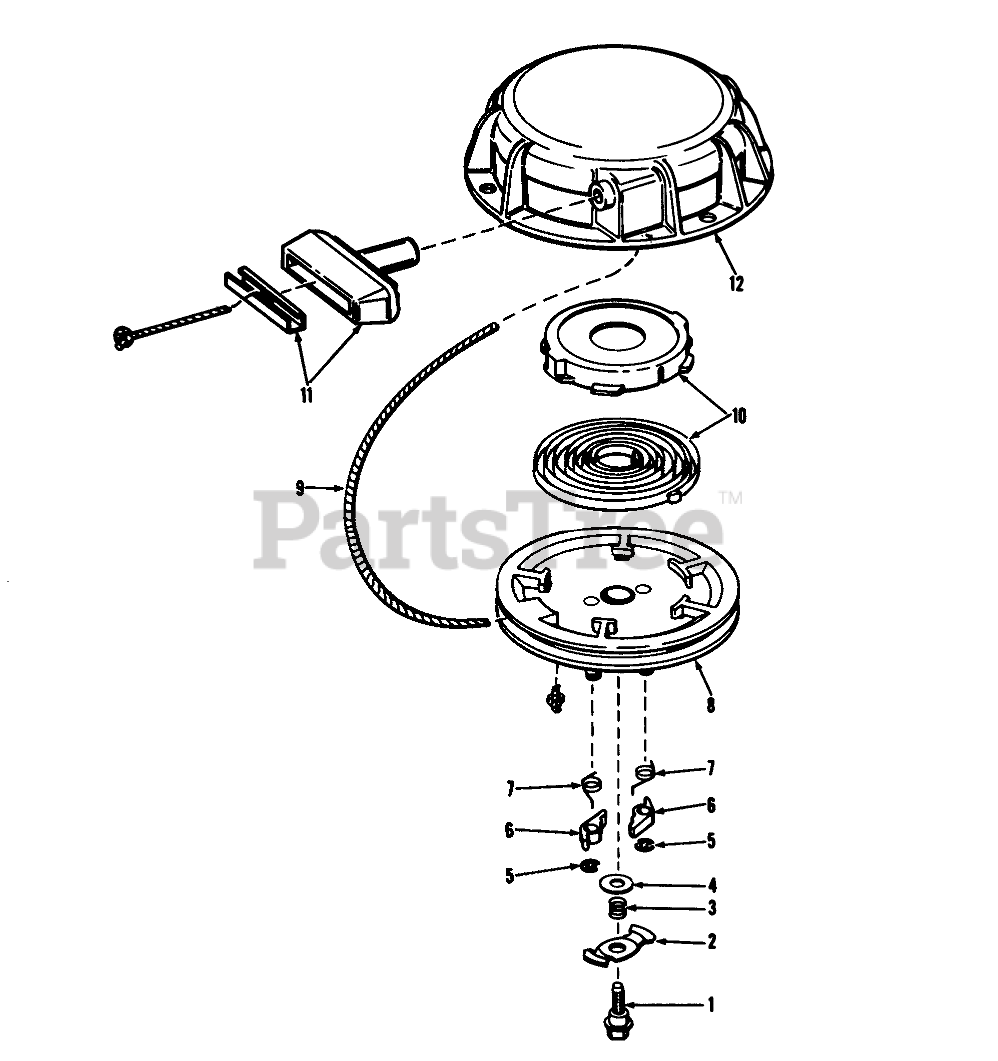

REWIND STARTER NO. 590479 Parts Diagram

  • Title
1

Tecumseh 590480

Screw, Center

$3.49

$

Usually ships in 3-12 days

0

2

Tecumseh 590481

Cam, Dog

$3.49

$

Usually ships in 3-12 days

0

3

Tecumseh 590482

Spring, Brake

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 32024

Washer, Brake

$1.99

$

Usually ships in 3-12 days

0

5

Tecumseh 590483

Ring, Retainer

$1.99

$

Usually ships in 3-12 days

0

$

$

Not available

7

Tecumseh 590485

Spring, Dog

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590486

Pulley
(Superseded to 590689B)

$108.99

$

In Stock, only 1 left!

0

9

Tecumseh 590456

Rope-Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 13

0

10

Tecumseh 590487

Spring & Keeper Assy.

$25.99

$

In Stock, only 1 left!

0

11

Tecumseh 590387

Assy., Starter

$3.99

$

In Stock, only 2 left!

0

12

Tecumseh 590488

Housing Assy., Starter

$

$

Currently unavailable
