57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) FRONT AXLE ASSEMBLY Parts Diagram

32" Lawn Tractor

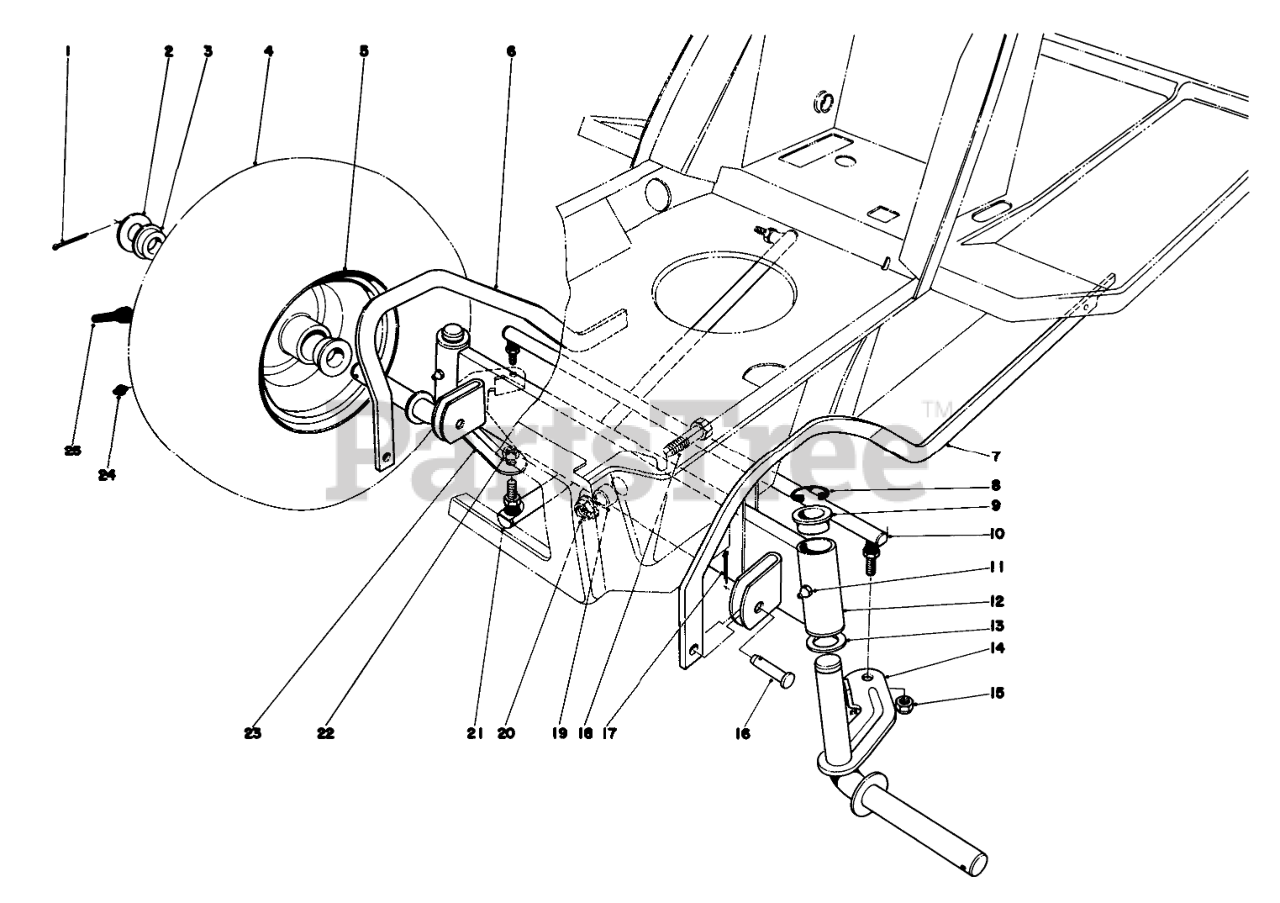

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

2

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

3

Toro 36-2430

WHEEL BSHG

$

$

Not available

4

Toro 231-96

Tire
(Superseded to 231-115)

$96.99

$

Usually ships in 3-6 days

0

5

Toro 242-63

Rim

$

$

Not available

6

Toro 28-0200

RH DECK PARALLEL LINK R

$

$

Not available

7

Toro 28-0210

LH DECK PARALEL LNKR

$

$

Not available

8

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

9

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

10

Toro 28-0070

Tie Rod Steering
(Superseded to 47-5160)

$

$

Not available

11

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

12

Toro 36-1500

FRONT AXLE WA

$

$

Not available

13

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

14

Toro 36-1560

Spindle L.H.
(Superseded to 36-1560-03)

$

$

Not available

15

Toro 32146-4

NUT-LOCK NI

$

$

Not available

16

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

17

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

18

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

19

Toro 28-0380

SPACER-AXLE, FRONT

$3.49

$

Usually ships in 3-6 days

0

20

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

21

Toro 28-0080

Steering Arm
(Superseded to 39-1910)

$

$

Not available

22

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

Toro 36-1550

SPINDLE WA RH B

$

$

Not available

24

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

25

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

Toro 232-40

Inner Tube
(Superseded to 232-38)

Note: Not illustrated

$155.99

$

Usually ships in 3-6 days

0
