57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

32" Lawn Tractor

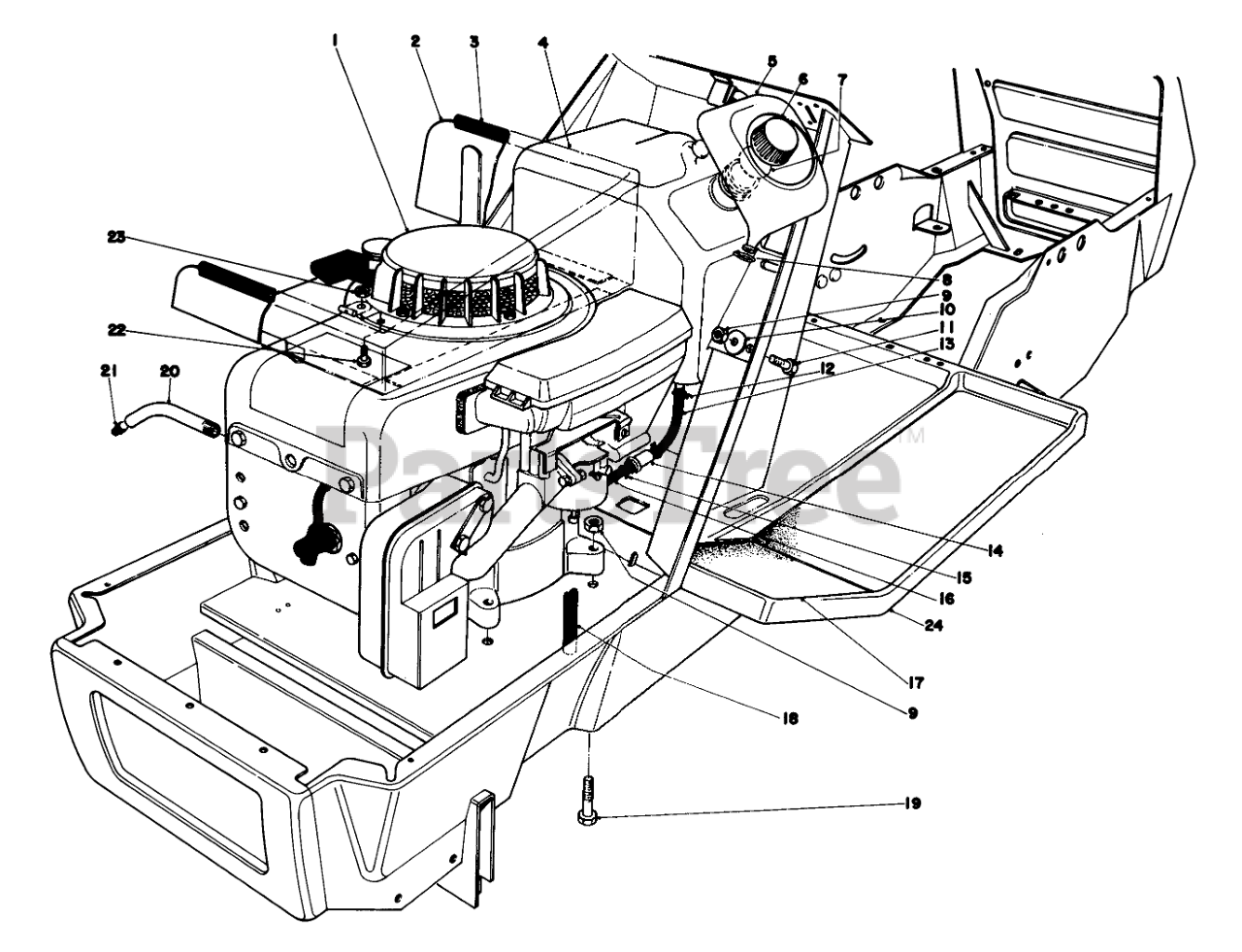

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-582

Engine

$

$

Currently unavailable

2

Toro 37-0530

AIR DUCT WA

$382.99

$

Usually ships in 3-6 days

0

3

Toro 37-0510

Seal-Hood

$

$

Not available

4

Toro 36-3360

Gas Tank (Incl. Ref. #5)
(Superseded to 13-0479)

$338.99

$

In Stock, only 1 left!

0

5

Toro 28-9450

Funnel Overflow
(Superseded to 13-0479)

$338.99

$

In Stock, only 1 left!

0

6

Toro 28-9680

Gas Cap (Incl. Ref. #7)
(Superseded to 42-0682)

$

$

Not available

7

Toro 28-9670

Gasket Gas Cap
(Superseded to 20-4620)

$10.99

$

In Stock, Qty 6

0

8

Toro 2412-62

HOSE CLAMP

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 37-0520

Hose-Gas

$

$

Not available

14

Toro 2210-181

Fuel Filter
(Superseded to 56-6360)

$6.49

$

In Stock, Qty 20+

0

15

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

16

Toro 28-9510

Hose Gas

$

$

Not available

17

Toro 27-9050

LH FOOT TREAD

$

$

Not available

Toro 27-9040

RH FOOT TREAD

Note: Not illustrated

$

$

Not available

18

Toro 28-9460

Hose Funnel
(Superseded to 39-4030)

$

$

Not available

19

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

20

Toro 28-8650

OIL DRAIN TUBE

$

$

Not available

21

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

24

Toro 36-1090

Frame

$

$

Currently unavailable
