57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) CLUTCH & ACTUATOR ASSEMBLY Parts Diagram

32" Lawn Tractor

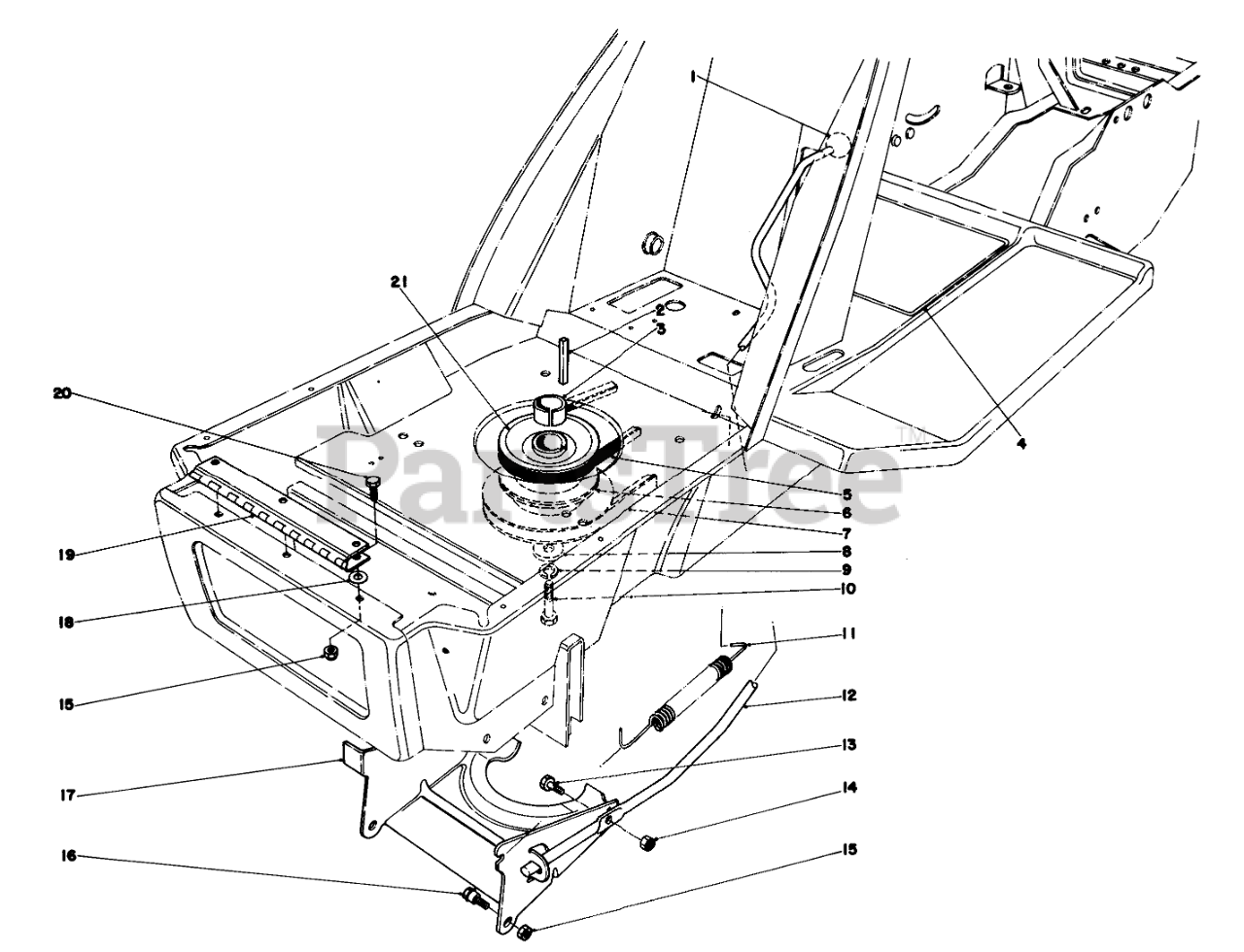

CLUTCH & ACTUATOR ASSEMBLY Parts Diagram

  • Title

1

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

2

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

3

Toro 27-8910

PULLEY SPACER

$

$

Not available

4

Toro 36-1540

Decal Instruction

$

$

Not available

5

Toro 28-2650

V BELT

$64.99

$

In Stock, only 1 left!

0

6

Toro 36-4800

Clutch & Brake-Deck
(Superseded to 8-7849)

$

$

Not available

7

Toro 28-5250

V BELT

$26.99

$

Usually ships in 3-6 days

0

8

Toro 27-8920

WASHER

$4.99

$

Usually ships in 3-6 days

0

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 3212-21

SCREW-HH
(Superseded to 3212-8)

$6.49

$

In Stock, only 4 left!

0

11

Toro 27-8960

TRACTION SPRING

$

$

Not available

12

Toro 36-1240

Engagement Lever-Clutch Actuator
(Superseded to 28-2320)

$

$

Not available

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

15

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

16

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

17

Toro 36-3160

Actuator Clutch
(Superseded to 38-2800)

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 36-1150

Hinge

$

$

Not available

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 36-4810

TOP SHEAVE

$

$

Not available
