57300 (8-32) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1979) HOOD ASSEMBLY MODEL 57300 Parts Diagram

Lawn Tractor

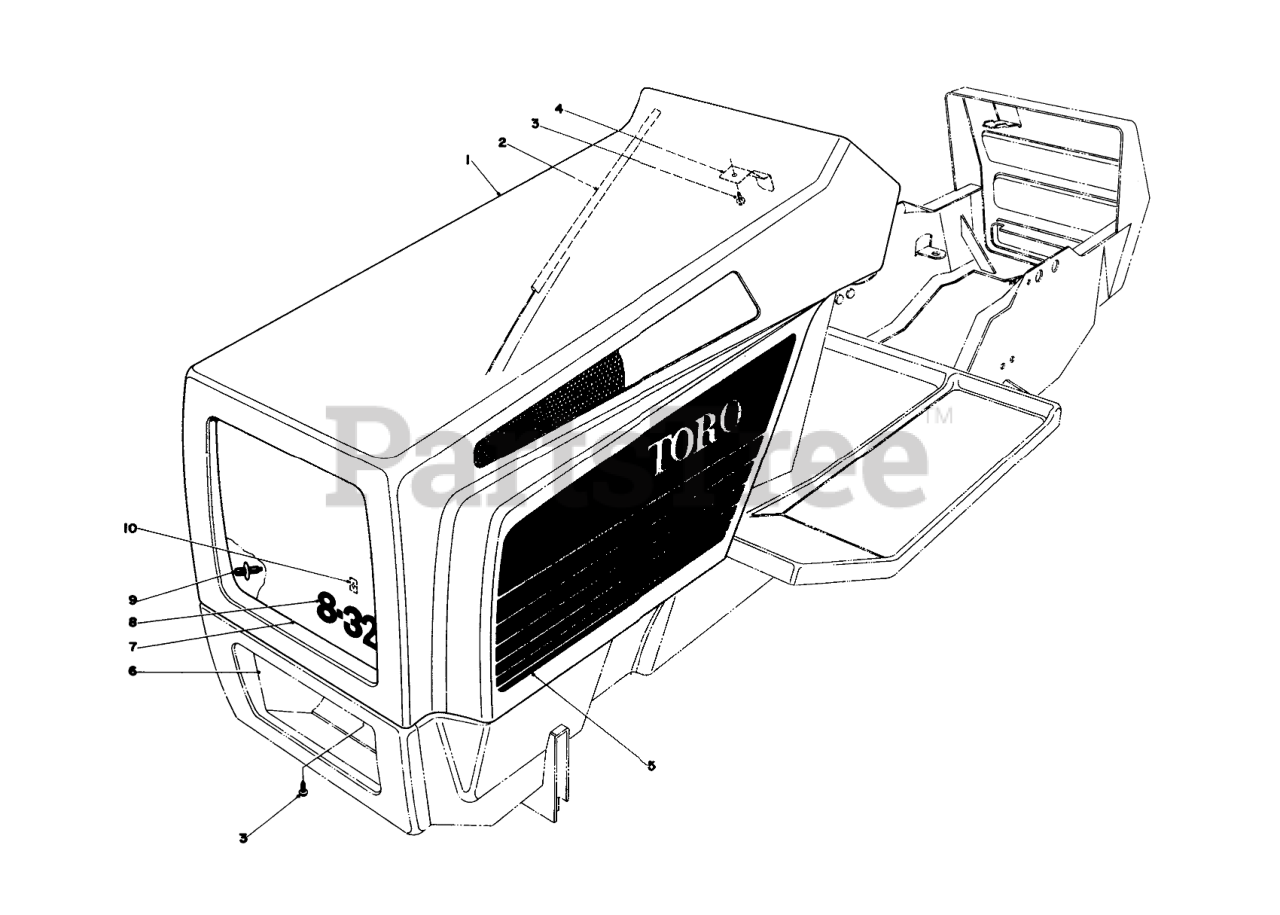

HOOD ASSEMBLY MODEL 57300 Parts Diagram

  • Title

1

Toro 8-3209

Hood Assy. (Incl. Ref. #5)

$

$

Currently unavailable

2

Toro 28-3810

RUBBER EXT SEAL

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 27-9130

SPRING LATCH

$

$

Not available

5

Toro 28-4230

Decal Hood LH.

$

$

Not available

Toro 28-4240

R.H. HOOD DECAL

Note: Not illustrated

$

$

Not available

6

Toro 28-0010

LOWER GRILLE

$74.99

$

Usually ships in 3-6 days

0

7

Toro 36-2110

HOOD GRILLE

$

$

Not available

8

Toro 28-2660

Nameplate Grille

$

$

Not available

9

Toro 27-9120

HINGE BRKT STUD

$

$

Not available

10

Toro 3290-299

CLIP

$

$

Not available

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0
