57300 (8-32) - Toro Lawn Tractor (SN: 004000001 - 004999999) (1984) CUTTING DECK MODEL 59130 Parts Diagram

Lawn Tractor

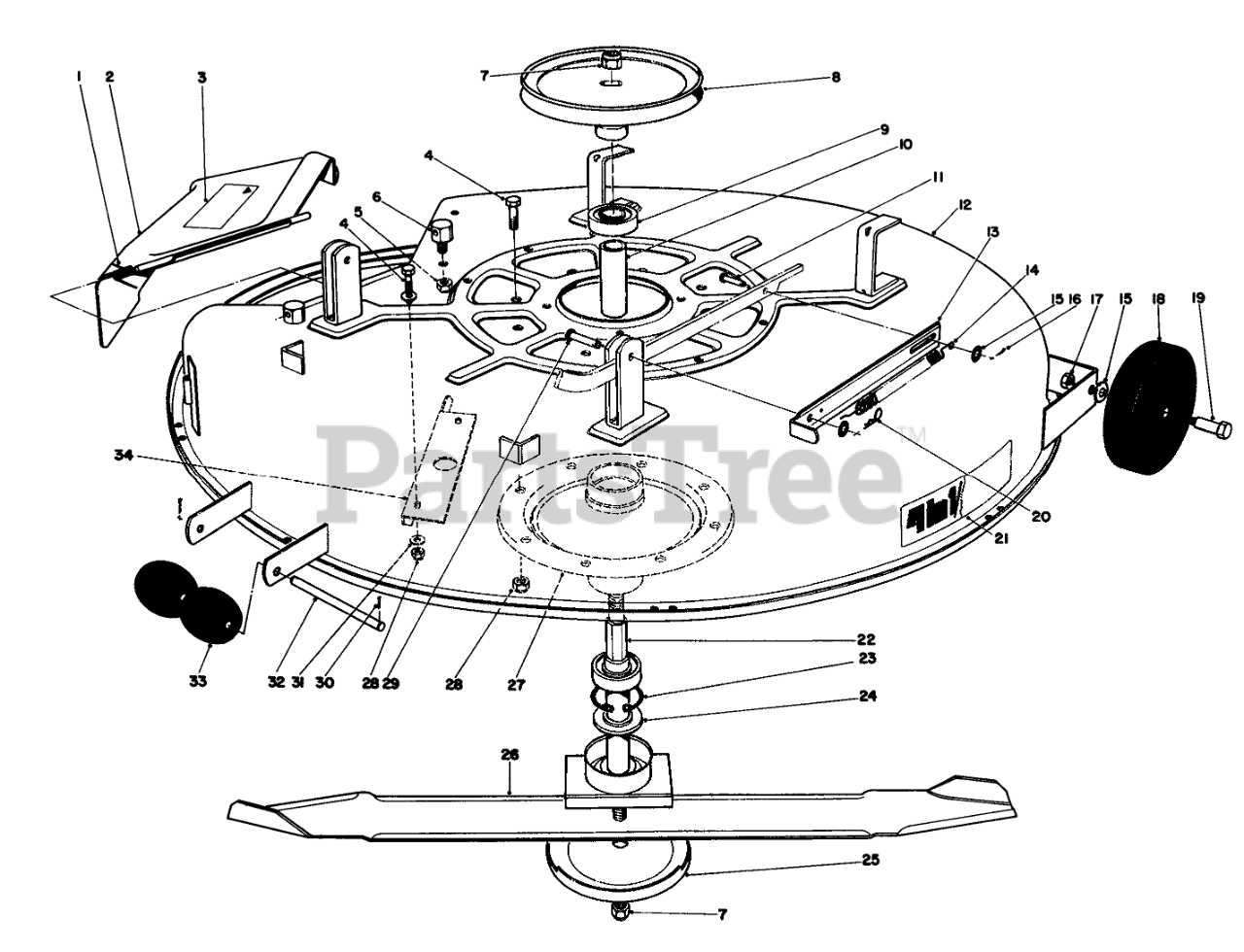

CUTTING DECK MODEL 59130 Parts Diagram

  • Title
1

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

2

Toro 44-5930

Deflector Assembly (Incl. Ref. #3)

$191.99

$

Usually ships in 3-6 days

0

3

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 6

0

6

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

7

$11.99

$

In Stock, only 4 left!

0

8

Toro 28-8000

PULLEY(BLADE DRIVE)

$

$

Not available

9

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, only 2 left!

0

10

Toro 47-0100

Spacer-Bearing
(Superseded to 83-7020)

$28.99

$

In Stock, only 1 left!

0

11

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

12

Toro 474910

Cutter Deck

$

$

Currently unavailable

13

Toro 39-5370

DECK SPRING STRAP R

$

$

Not available

14

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 29-6010

DECK WHEEL

$

$

Not available

19

$

$

Not available

20

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

21

Toro 47-7240

DECK DECAL

$

$

Not available

22

Toro 47-0090

SPINDLE SHAFT WA

$263.99

$

In Stock, only 1 left!

0

23

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

24

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

25

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

26

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$58.99

$

In Stock, only 3 left!

0

27

Toro 47-0120

Spindle Body
(Superseded to 56-7030)

$

$

Not available

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

30

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 7-0277

ROLLER SHAFT

$

$

Not available

33

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

34

Toro 44-5720

Baffle Deck
(Superseded to 44-5720-03)

$

$

Not available
