57300 (8-32) - Toro Lawn Tractor (SN: 002000001 - 002999999) (1982) CUTTING DECK MODEL 59130 Parts Diagram

Lawn Tractor

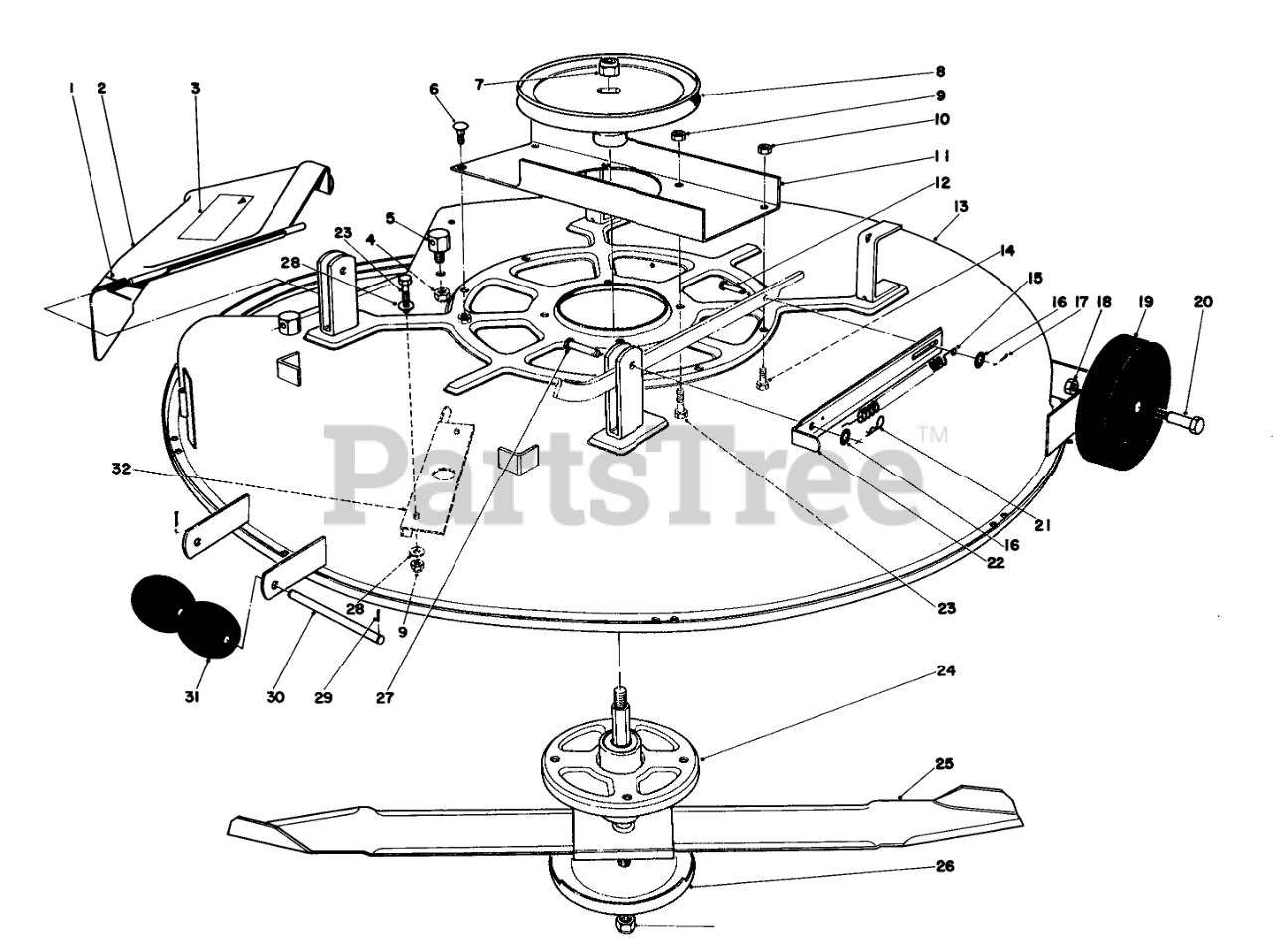

CUTTING DECK MODEL 59130 Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$25.99

$

Usually ships in 3-6 days

0

2

Toro 44-5930

Deflector Assembly (Incl. Ref. #3)

$203.99

$

Usually ships in 3-6 days

0

3

Toro 12-2890

Decal
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 11

0

4

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

5

Toro 28-7350

POST-PIVOT

$41.99

$

Usually ships in 3-6 days

0

6

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

7

Toro 17-0980

Nut

$12.99

$

In Stock, only 4 left!

0

8

Toro 28-8000

PULLEY(BLADE DRIVE)

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

11

Toro 36-1290

REINFORCEMENT CHANNEL

$

$

Not available

12

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

13

Toro 44-280

Cutter Deck (Incl. Ref. #9, 23, 28 & 32)

$

$

Currently unavailable

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

18

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

19

Toro 29-6010

DECK WHEEL

$

$

Not available

20

Toro 3-2652

Bolt

$

$

Not available

21

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

22

Toro 39-5370

DECK SPRING STRAP R

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 28-4280

Spindle Assembly
(Superseded to 63-5921)

$

$

Not available

25

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$61.99

$

In Stock, only 3 left!

0

26

Toro 7-3622

Axle Support

$

$

Currently unavailable

27

Toro 283-15

PIN-CLEVIS

$5.99

$

Usually ships in 3-6 days

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

30

Toro 7-0277

ROLLER SHAFT

$

$

Not available

31

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 11

0

32

Toro 44-5720

Baffle Deck
(Superseded to 44-5720-03)

$

$

Not available
