57300 (8-32) - Toro Lawn Tractor (SN: 001000001 - 001999999) (1981) STEERING WHEEL & DASH ASSEMBLY Parts Diagram

Lawn Tractor

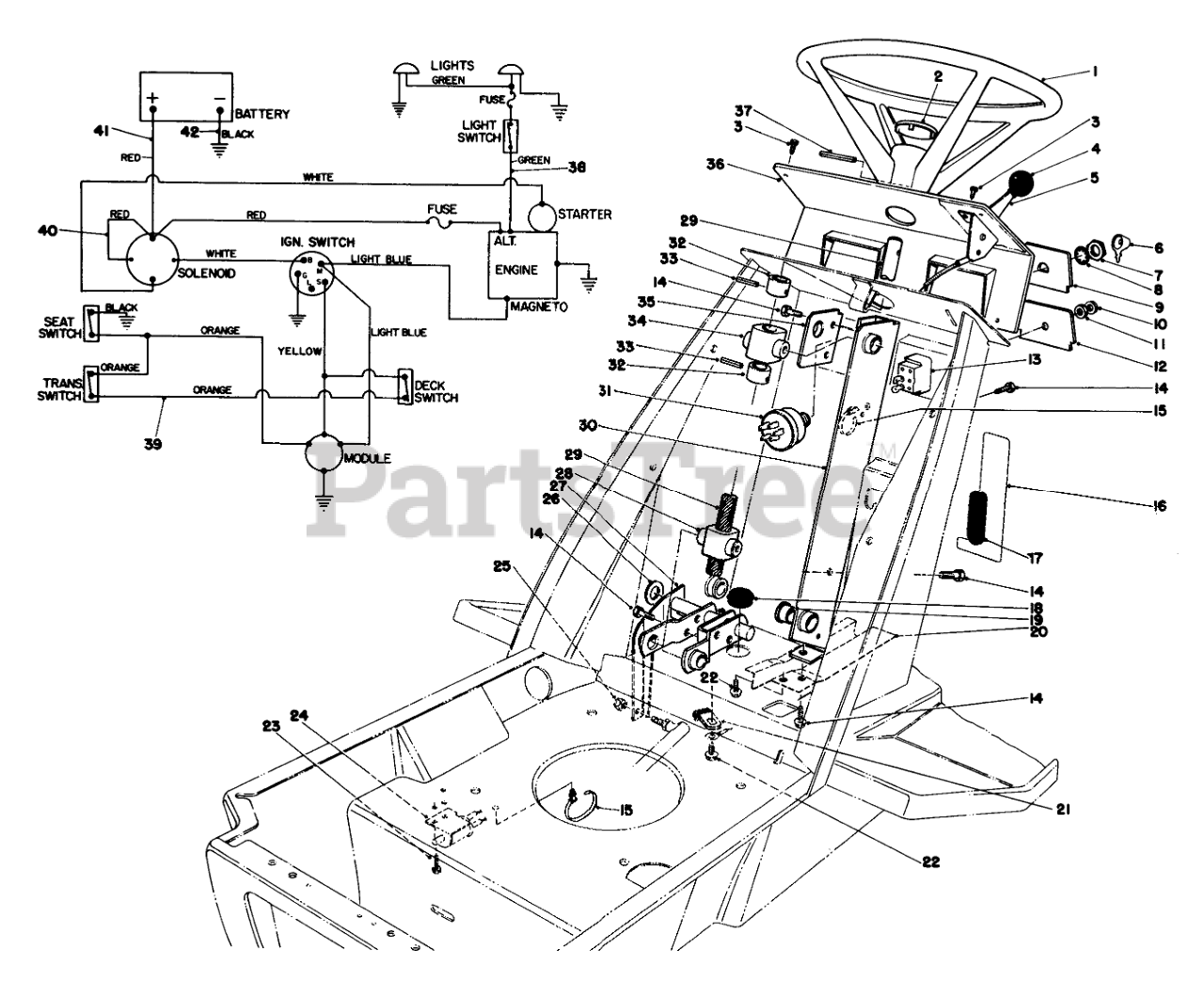

STEERING WHEEL & DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 38-0830

Steering Wheel
(Superseded to 49-3240)

$200.99

$

Usually ships in 3-6 days

0

2

Toro 38-1010

STEERING WHEEL INSERT

$

$

Not available

Toro 38-1000

STEERING WHEEL INSERT

Note: Not illustrated

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

5

Toro 38-0990

Throttle Control (Incl. Ref. #4)

$142.99

$

Usually ships in 3-6 days

0

6

Toro 2184

12 Key

$

$

Currently unavailable

7

Toro 218461

Nut

$

$

Currently unavailable

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

9

Toro 28-2690

DASH PANEL INSERT

$

$

Not available

10

Toro 18497

Beveled Facenut

$

$

Currently unavailable

11

Toro 18498

Locknut

$

$

Currently unavailable

12

Toro 8-2510

Insert-Dash Panel (Lights) (Model #57360)

$

$

Currently unavailable

Toro 8-2500

CLIP-HOLD DOWN

Note: Not illustrated

$

$

Currently unavailable

13

Toro 84110

Light Switch (Model #57360) (Incl. Ref. #10 & 11)

$

$

Currently unavailable

14

Toro 2144-11

Self Tapping Screw

$

$

Currently unavailable

15

Toro 290410

Push Mount Tie

$

$

Currently unavailable

16

Toro 6-2230

Decal-Deck

$

$

Currently unavailable

17

Toro 94780

Edge Molding

$

$

Currently unavailable

18

Toro 37-100

Grommet

$

$

Currently unavailable

19

Toro 7-9080

Flange Bearing

$

$

Currently unavailable

20

Toro 6-1570

Shield Wire Harness

$

$

Currently unavailable

21

Toro 8-2970

Clamp

$

$

Currently unavailable

22

Toro 2144-10

Screw Thread Forming

$

$

Currently unavailable

23

Toro 2144-1

Screw Thread Forming

$

$

Currently unavailable

24

Toro 8-4450

Interlock-Deck Switch

$

$

Currently unavailable

25

Toro 2146-6

Locknut

$

$

Currently unavailable

26

Toro 1-6240

Washer

$

$

Currently unavailable

27

Toro 6-3470

Steering Link

$

$

Currently unavailable

28

Toro 7-0140

Spring

$

$

Currently unavailable

29

Toro 8-5310

Shaft-Steering

$

$

Currently unavailable

30

Toro 6-2040

Bracket-Steering

$

$

Currently unavailable

31

Toro 3-0660

Ignition Switch (Incl. Ref. #6-8)

$

$

Currently unavailable

32

Toro 8-3940

Collar-Steering Shaft

$

$

Currently unavailable

33

Toro 2121-31

Roll Pin

$

$

Currently unavailable

34

Toro 7-0150

Spacer

$

$

Currently unavailable

35

Toro 8-0390

Bail Lift Pin

$

$

Currently unavailable

36

Toro 8-2460

Panel-Dash

$

$

Currently unavailable

37

Toro 2121-78

Roll Pin

$

$

Currently unavailable

38

Toro 8-1030

Wire Harness Lights (Model #57360)

$

$

Currently unavailable

39

Toro 8-0880

Wire Harness

$

$

Currently unavailable

40

Toro 8-7880

Handle, R.H.

$

$

Currently unavailable

41

Toro 8-3890

Wire Assembly (Battery to Solenoid)

$

$

Currently unavailable

42

Toro 8-3860

Drive Shaft

$

$

Currently unavailable
