57300 (8-32) - Toro Lawn Tractor (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY MODEL 57360 Parts Diagram

Lawn Tractor

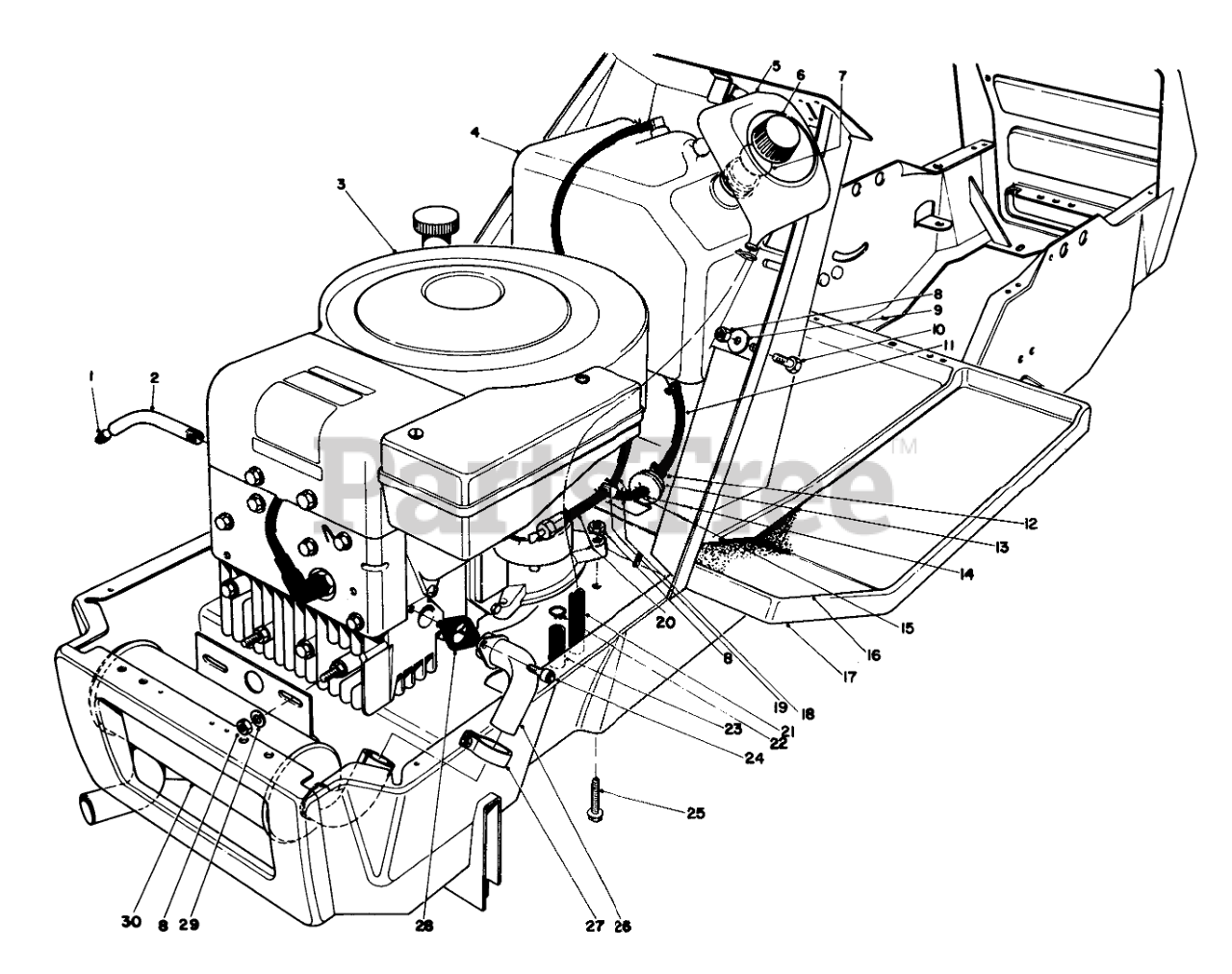

ENGINE ASSEMBLY MODEL 57360 Parts Diagram

  • Title

1

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

2

Toro 28-8650

OIL DRAIN TUBE

$

$

Not available

3

Toro 221-681

Engine

$

$

Currently unavailable

Toro 221-606

Engine

Note: Not illustrated

$

$

Currently unavailable

4

Toro 42-5330

Gas Tank Assembly (Incl.Ref. #5)
(Superseded to 13-0479)

$289.99

$

In Stock, only 1 left!

0

5

Funnel Overflow

$

$

Not available

6

Toro 28-9680

Gas Cap Assembly (Incl. Ref. #7)
(Superseded to 42-0682)

$

$

Not available

7

Toro 28-9670

Gasket Gas Cap
(Superseded to 20-4620)

$8.99

$

In Stock, Qty 6

0

8

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

9

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 9

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 43-7150

Gas Hose

$

$

Not available

12

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 42-5240

Nut
(Superseded to 56-6360)

$6.99

$

In Stock, Qty 7

0

14

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

15

Toro 42-5200

Hose Gas Return

$

$

Not available

16

Toro 27-9050

LH FOOT TREAD

$

$

Not available

Toro 27-9040

RH FOOT TREAD

Note: Not illustrated

$

$

Not available

17

Toro 38-0870

Frame

$

$

Not available

18

Toro 42-5210

Hose Gas

$

$

Not available

19

Toro 353-778

Fitting-Barbed Y

$

$

Not available

20

Toro 42-5230

Hose Gas

$

$

Not available

21

Toro 39-4030

FUNNEL HOSE

$

$

Not available

22

Toro 2412-62

HOSE CLAMP

$

$

Not available

23

Toro 394040

Hose-Carburetor Drain

$

$

Currently unavailable

24

Toro 3274-53

SCREW-HSH

$

$

Not available

25

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 28-0290

10 HP EXHAUST PIPE WA

$

$

Not available

27

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

28

Exhaust Gasket

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 28-0300

EXHAUST MUFFLER 10 HP

$453.99

$

Usually ships in 3-6 days

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

Toro 36-7890

Muffler-Spark Arrester (Optional)

Note: Not illustrated

$

$

Not available

Toro 8-9859

Loose Parts

Note: Not illustrated

$

$

Not available
