57300 (8-32) - Toro Lawn Tractor (SN: 001000001 - 001999999) (1981) CUTTING DECK Parts Diagram

Lawn Tractor

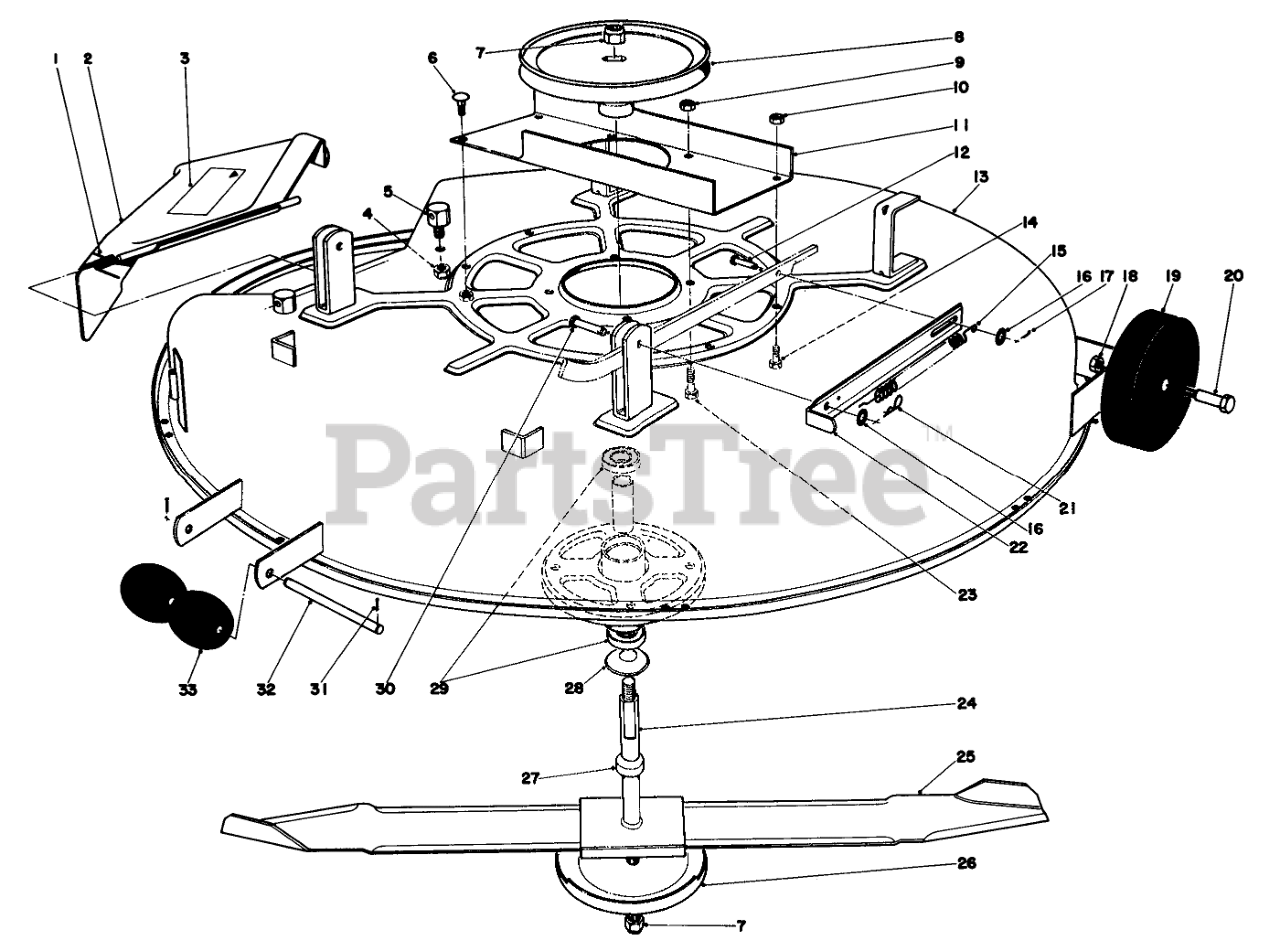

CUTTING DECK Parts Diagram

  • Title
1

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

2

Toro 28-8190

Deflector Assembly (Incl. Ref. #3)

$

$

Not available

3

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

4

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

5

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

6

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

$11.99

$

In Stock, only 4 left!

0

8

Toro 28-8000

PULLEY(BLADE DRIVE)

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

$

$

Currently unavailable

11

Toro 36-1290

REINFORCEMENT CHANNEL

$

$

Not available

12

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

13

Toro 39-5790

Cutter Deck

$

$

Not available

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

18

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

19

Toro 29-6010

DECK WHEEL

$

$

Not available

20

$

$

Not available

21

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

22

Toro 39-5370

DECK SPRING STRAP R

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 28-4280

Spindle Assembly (Incl. Ref. #27-29)
(Superseded to 63-5921)

$

$

Not available

25

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$58.99

$

In Stock, only 3 left!

0

26

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

27

Toro 38-3180

SPACER

$

$

Not available

28

Toro 38-0470

DUST COVER

$

$

Not available

29

Toro 37-0200

BEARING

$

$

Not available

30

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

31

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

32

Toro 7-0277

ROLLER SHAFT

$

$

Not available

33

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0
