57300 (8-32) - Toro Lawn Tractor (SN: 001000001 - 001999999) (1981) 36" SNOWTHROWER ATTACHMENT MODEL NO. 59136 Parts Diagram

Lawn Tractor

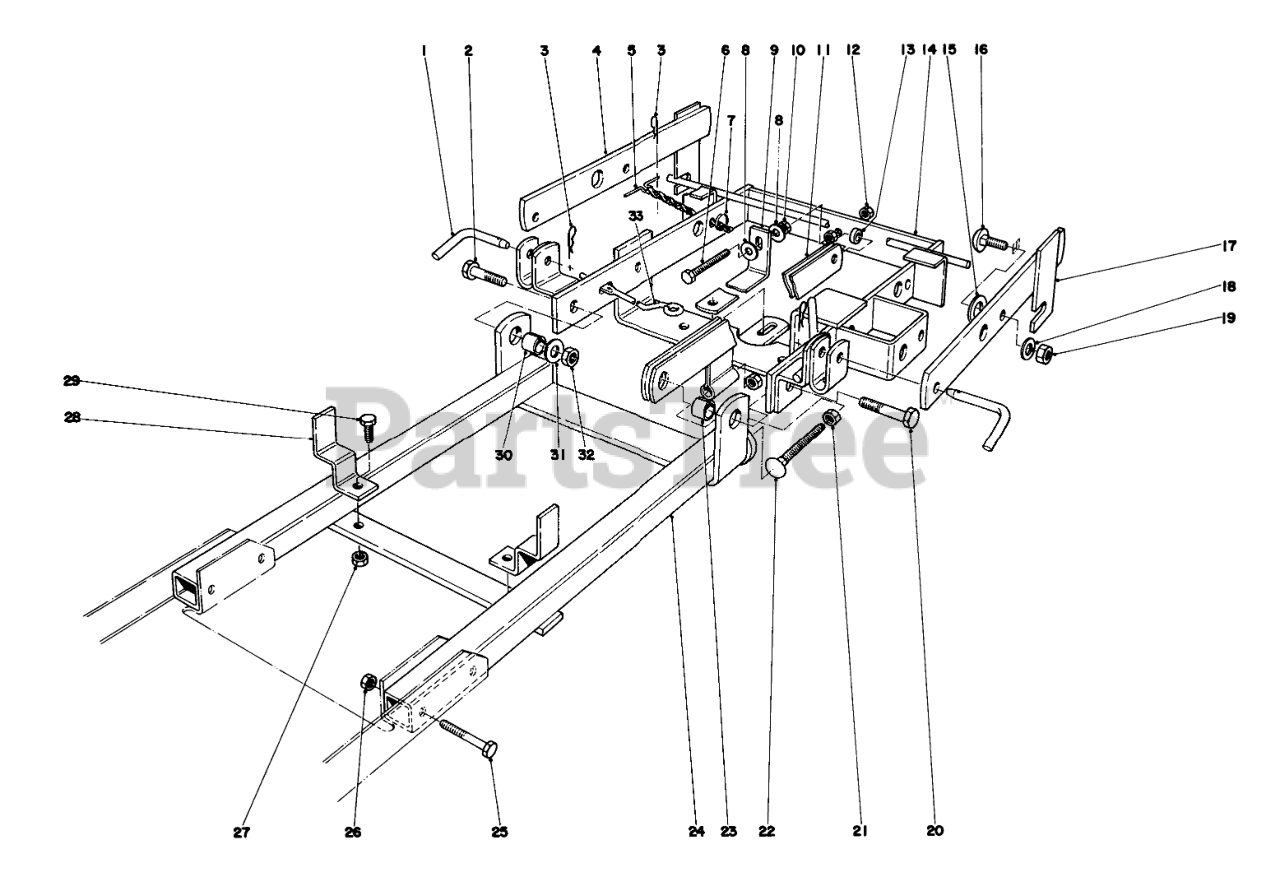

36" SNOWTHROWER ATTACHMENT MODEL NO. 59136 Parts Diagram

  • Title
1

Toro 40-1330

Pin-Roller, Locating

$

$

Not available

2

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

3

Toro 3290-225

TINNERMAN NUT

$9.99

$

In Stock, only 4 left!

0

4

Toro 40-1340

MountingBracket-R.H.

$

$

Not available

5

Toro 40-1300

Chain & Toggle

$

$

Not available

6

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

7

Toro 40-1310

Spring Clip

$

$

Not available

8

Toro 32564

Washer

$

$

Currently unavailable

9

Toro 40-1220

Bracket-Belt Adjust

$

$

Not available

10

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

11

Toro 40-0940

Lift Extension

$

$

Not available

12

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

13

Toro 40-0980

Spacer

$

$

Not available

14

Toro 40-1200

Mounting Frame-Upper

$

$

Not available

15

Toro 40-1320

Washer-Flat

$

$

Not available

16

Toro 3233-23

Carriage Bolt

$

$

Not available

17

Toro 40-1350

Mounting Bracket-L.H.

$

$

Not available

18

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

20

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

21

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 40-1590

Carriage Bolt

$

$

Not available

23

Toro 40-1360

Spacer-Bearing

$

$

Not available

24

Toro 40-0930

Mounting Frame

$

$

Not available

25

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

27

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

28

Toro 40-0990

Stop-Position

$

$

Not available

29

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 40-1370

Spacer-Idler Pulley

$

$

Not available

31

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

33

Toro 40-1290

Wire-Belt Guide

$

$

Not available
