57241 - Toro 32" Lawn Tractor (SN: 003000001 - 003999999) (1973) REAR AXLE ASSEMBLY Parts Diagram

32" Lawn Tractor

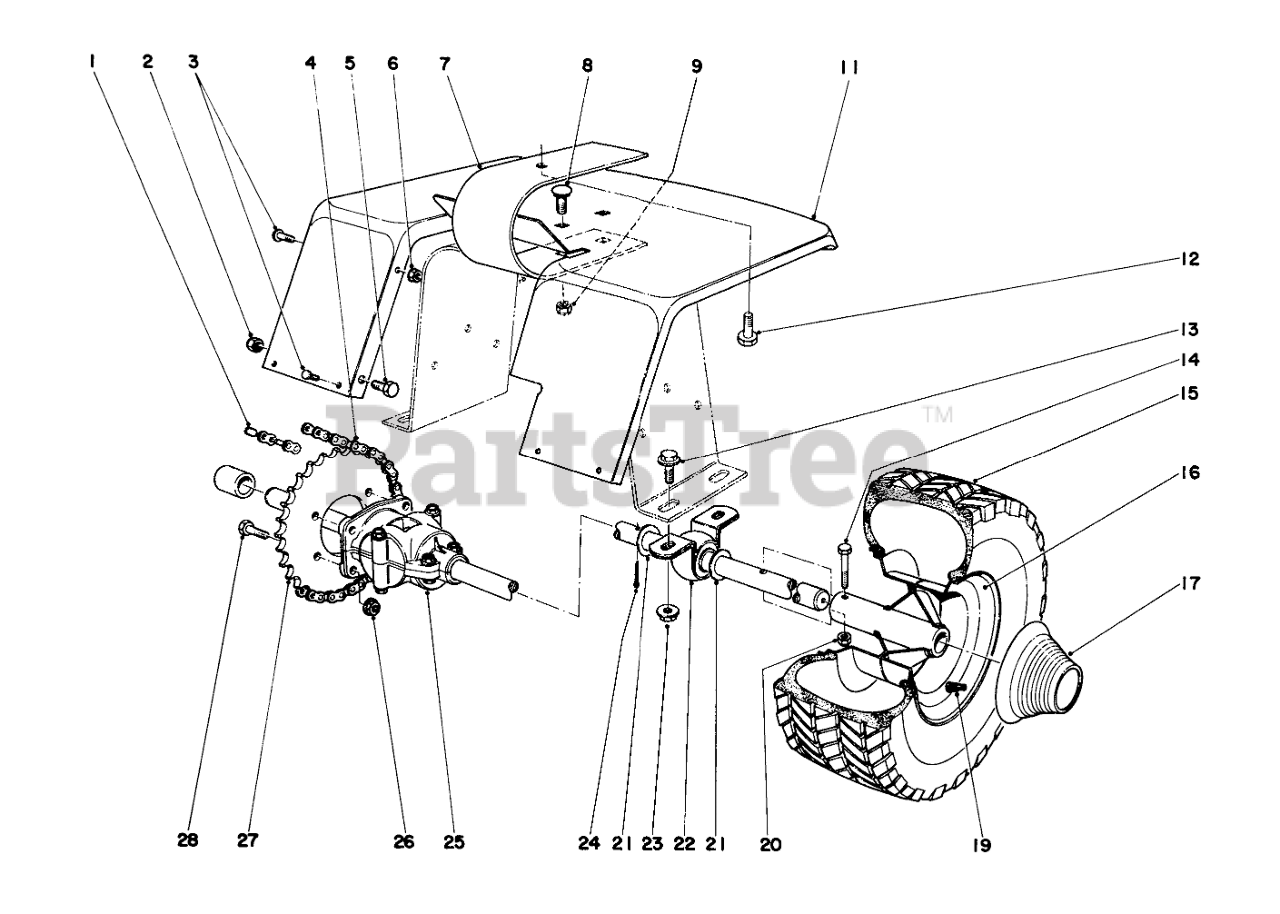

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

2

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

3

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

4

Toro 12-3670

Chain

$

$

Currently unavailable

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

7

Toro 7-8650

Seat Spring

$

$

Currently unavailable

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

9

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

11

Toro 7-3745

Fender

$

$

Currently unavailable

12

Toro 3235-4

Capscrew

$

$

Currently unavailable

13

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 231-68

Tire Turf King

$

$

Currently unavailable

Toro 231-56

Tire

Note: Not illustrated

$

$

Currently unavailable

16

Toro 241-116

Rim

$

$

Currently unavailable

17

Toro 12-9200

Hub Cap-Rear

$

$

Currently unavailable

19

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

20

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 14

0

21

Toro 11-4930

WASHER

$

$

Not available

22

Toro 12-3340

PILLOW BLOCK

$

$

Not available

23

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

25

Toro 12-3650

Differential

$

$

Currently unavailable

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 12-1940

Sprocket

$

$

Not available

28

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
