57228 - Toro 32" Lawn Tractor (SN: 003000001 - 003999999) (1973) MAGNETO NO. 610681A (ELECTRIC) Parts Diagram

32" Lawn Tractor

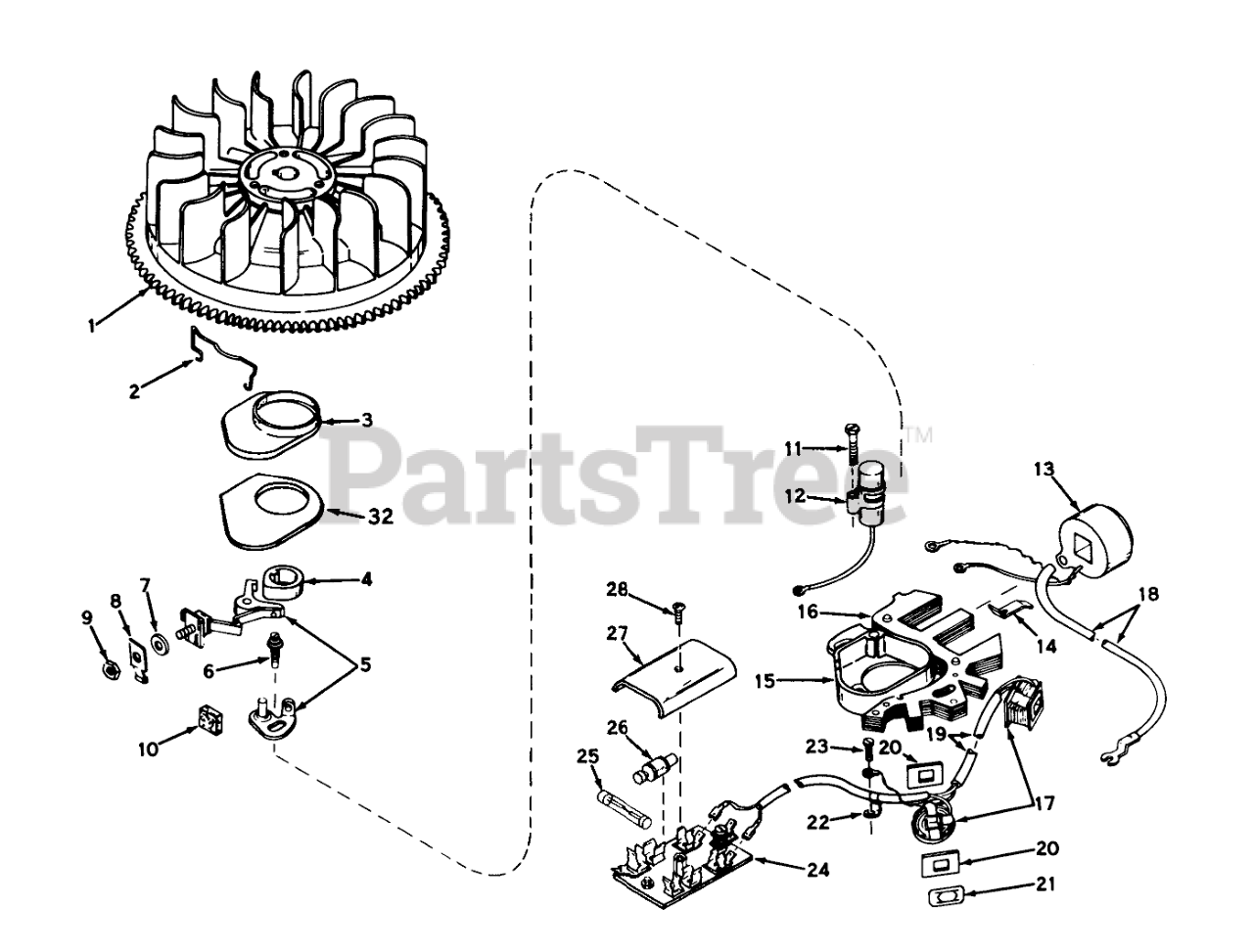

MAGNETO NO. 610681A (ELECTRIC) Parts Diagram

  • Title

1

Tecumseh 30755

Flywheel

$

$

Currently unavailable

2

Tecumseh 30836

Spring, Dust cover

$

$

Not available

3

Tecumseh 30550

Cover, Dust
(Superseded to 610947)

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30992

Cam-Breaker

$

$

Not available

5

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 29181

Breaker Screw

$

$

Not available

7

Tecumseh 610385

Washer

$

$

Not available

8

Tecumseh 30843

Terminal
(Superseded to 33356)

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 610408

DECAL

$

$

Currently unavailable

10

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

12

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 6

0

13

Tecumseh 30560A

Coil Assy. (Incl. No. 18)

$48.99

$

In Stock, only 1 left!

0

14

Tecumseh 29629

Spring Coil Wedge

$

$

Not available

15

Tecumseh 30833A

Stator Plate Assy. (Incl. Nos. 2, 3, 5 Thru 28 & 32)

$

$

Currently unavailable

16

Tecumseh 30834

CONTOUR PLUS II CUTTING DECK

$

$

Currently unavailable

17

Tecumseh 30835

Generator Coils & Leads

$

$

Currently unavailable

18

Tecumseh 30554

Wire, Lead

$

$

Not available

19

Tecumseh 30840

Sleeve, Insulation

$

$

Currently unavailable

20

Tecumseh 30838

Shield, Coil

$

$

Currently unavailable

21

Tecumseh 30839

Clip, Coil fastening
(Superseded to 610969)

$

$

Not available

22

Tecumseh 30837

Clip, Ground

$

$

Currently unavailable

23

Tecumseh 610288

Screw, Ground

$

$

Currently unavailable

24

Tecumseh 30841

Plate, Rectifier (Does not incl. 25 & 26)

$

$

Currently unavailable

25

Tecumseh 29561

Fuse

$3.49

$

Usually ships in 3-12 days

0

26

Tecumseh 30842

Rectifier
(Superseded to 36909)

$39.99

$

Usually ships in 3-12 days

0

27

Tecumseh 30064

Cover, Panel

$

$

Not available

28

Tecumseh 30066

Screw

$

$

Currently unavailable

32

Tecumseh 30883

Gasket Dust
(Superseded to 610955)

$

$

Not available
