57228 - Toro 32" Lawn Tractor (SN: 003000001 - 003999999) (1973) FRONT AXLE ASSEMBLY Parts Diagram

32" Lawn Tractor

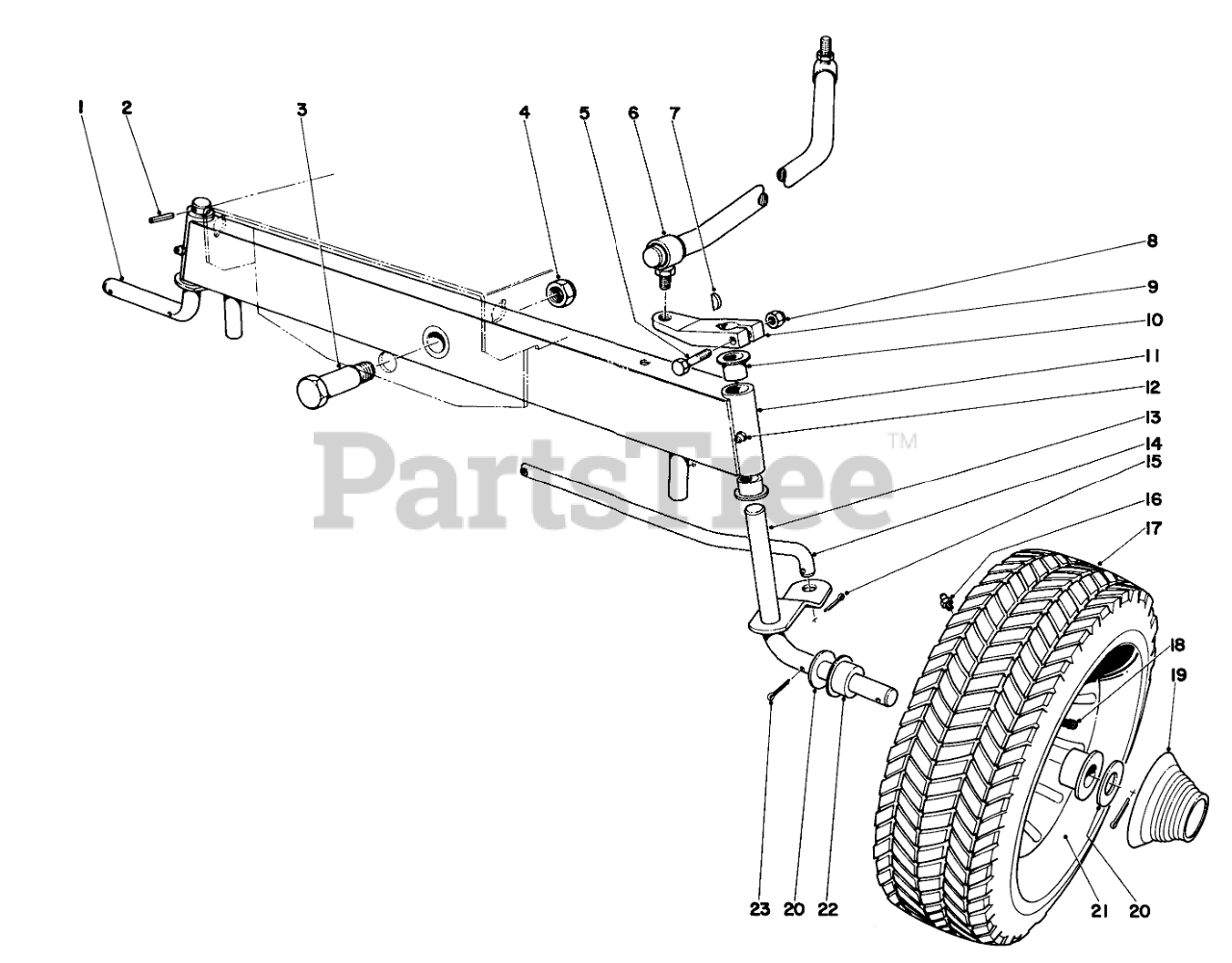

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3718

Spindle

$

$

Not available

2

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

3

Toro 7-3884

Shoulder Bolt

$

$

Not available

4

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

5

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

6

Toro 12-7690

Drag Link

$

$

Not available

7

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

9

Toro 7-3706

Arm Steering

$

$

Currently unavailable

10

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

11

Toro 12-3790

Front Axle (Incl. Ref. #10)

$

$

Not available

12

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

13

Toro 7-3715

Spindle

$

$

Not available

14

Toro 7-3776

Tie Rod

$

$

Currently unavailable

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 231-77

Tire Turf King
(Superseded to 231-116)

$

$

Not available

Toro 231-55

Tire

Note: Not illustrated

$

$

Not available

18

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

19

Toro 7-3932

FRONT HUB CAP

$

$

Not available

20

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

21

Toro 217-80

Rim (Incl. Ref. #22)

$218.99

$

Usually ships in 3-6 days

0

22

Toro 256-170

BUSHING

$

$

Not available

23

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0
