57228 - Toro 32" Lawn Tractor (SN: 003000001 - 003999999) (1973) FRAME ASSEMBLY Parts Diagram

32" Lawn Tractor

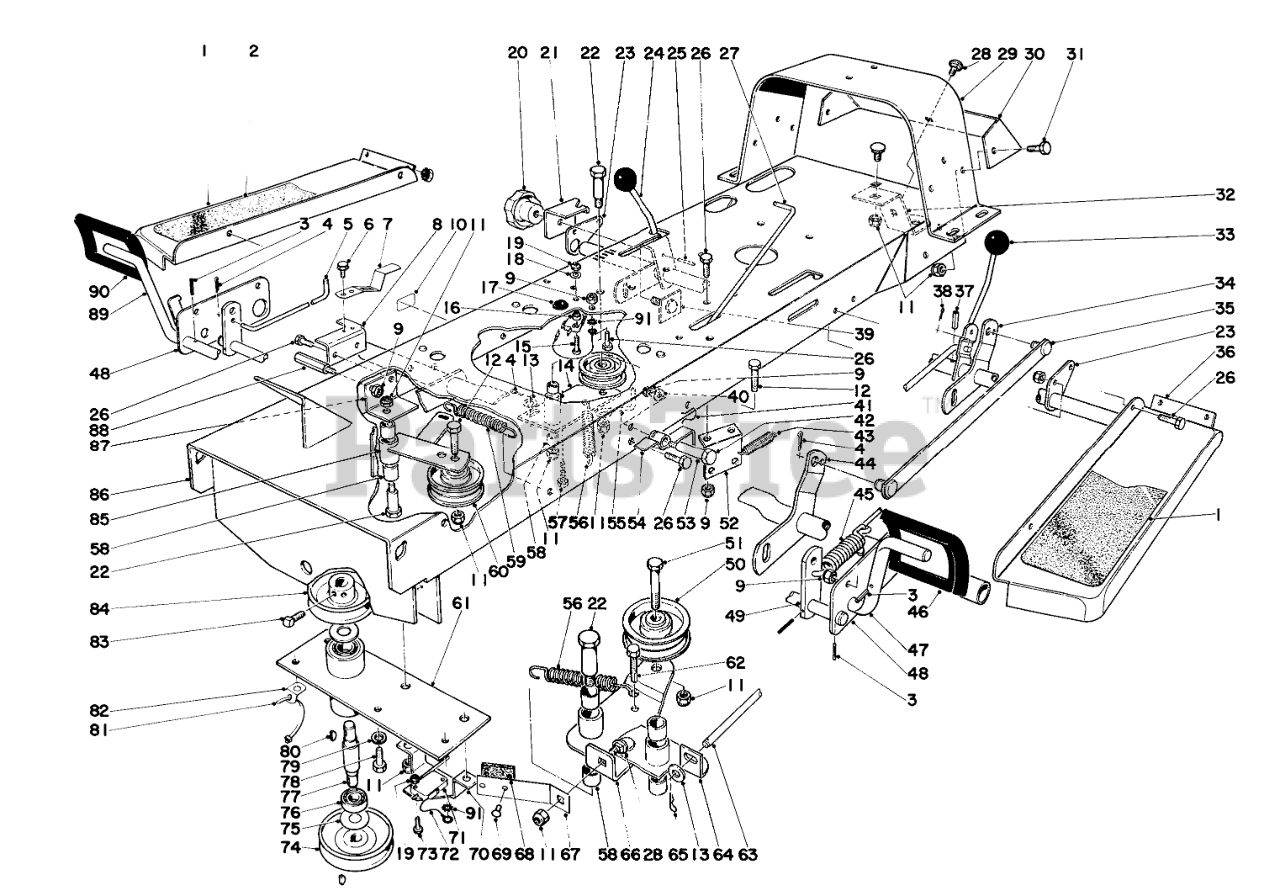

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3680

Footrest

$

$

Currently unavailable

2

Toro 7-3894

Foot Pad

$

$

Currently unavailable

3

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 7-3741

Clutch Rod

$

$

Currently unavailable

6

Toro 32140-66

Screw

$

$

Currently unavailable

7

Toro 12-5340

Brake Lock

$

$

Currently unavailable

8

Toro 12-5330

Bracket-Brake Lock

$

$

Currently unavailable

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 12-4020

Decal Brake

$

$

Currently unavailable

11

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 12-3760

Idler Arm (Incl. Ref. #58)

$

$

Currently unavailable

15

Toro 3290-329

SCREW-PPH

$

$

Not available

16

Toro 12-3330

Spacer

$

$

Currently unavailable

17

Toro 237-62

GROMMET

$

$

Currently unavailable

18

Toro 5-1254

WASHER

$

$

Not available

19

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

20

Toro 7-3902

Knob

$

$

Not available

21

Toro 7-3772

Slide Height Adj.

$

$

Not available

22

Toro 12-7610

Axle Bolt

$

$

Currently unavailable

23

Toro 7-3671

Bracket Tube

$

$

Currently unavailable

24

Toro 7-3763

Rod Control Hgt. Adj.

$

$

Currently unavailable

25

Toro 32121-5

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Toro 12-5350

Brake Rod

$

$

Currently unavailable

28

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

29

Toro 7-3678

Rear Support

$

$

Currently unavailable

30

Toro 7-3790

Frame Member Rear

$

$

Currently unavailable

31

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

32

Toro 7-3775

Bracket Hitch

$

$

Currently unavailable

33

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

34

Toro 7-3758

Rear Height Adj. Tube

$

$

Not available

35

Toro 7-3761

Height Adj. Link

$

$

Currently unavailable

36

Toro 7-3681

Footrest

$

$

Currently unavailable

37

Toro 32121-29

1/8 X 1-3/8 ROLL PIN

$

$

Not available

38

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

39

Toro 7-3667

Knob Plate

$

$

Currently unavailable

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 12-5410

Retainer Clutch Lock

$

$

Currently unavailable

42

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

43

Toro 7-1322

Spring

$

$

Not available

44

Toro 7-9150

Front Height Adj. Tube

$

$

Not available

45

Toro 12-5360

Spring Brake Rod

$

$

Not available

46

Toro 7-3901

CLUTCH PAD

$

$

Currently unavailable

47

Toro 12-3890

Clutch Pedal

$

$

Currently unavailable

48

Toro 7-3670

Plate Tube

$

$

Currently unavailable

49

Toro 7-3683

Arm Lever

$

$

Currently unavailable

50

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

51

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Toro 7-3967

Belt Guide

$

$

Currently unavailable

53

Toro 17-0410

Spacer

$

$

Currently unavailable

54

Toro 12-5380

Clutch Lock

$

$

Currently unavailable

55

Toro 7-0751

Belt Retainer

$

$

Currently unavailable

56

Toro 7-3970

Spring

$

$

Not available

57

Toro 32140-14

Sems Screw

$

$

Currently unavailable

58

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

59

Toro 12-7600

Spring-Idler Tension

$

$

Currently unavailable

60

Toro 12-6700

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

61

Toro 7-3730

Pulley Tube

$

$

Not available

62

Toro 32140-92

Sems Screw

$

$

Currently unavailable

63

Toro 7-3885

Clutch Rod Blade

$

$

Currently unavailable

64

Toro 7-3800

Pivot Bracket (Incl. Ref. #58)

$

$

Currently unavailable

65

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

66

Toro 12-3690

Idler Plate (Incl. Ref. #58)

$

$

Currently unavailable

67

Toro 7-3801

Clutch Brake

$

$

Currently unavailable

68

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

69

Toro 3295-21

Rivet

$

$

Currently unavailable

70

Toro 12-3480

Bracket Switch

$

$

Currently unavailable

71

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

72

Toro 12-8330

Wire Assembly

$

$

Currently unavailable

73

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

74

Toro 12-7780

Pulley

$

$

Currently unavailable

75

Toro 7-0777

Bearing Washer

$

$

Not available

76

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

77

Toro 7-3728

Pulley Shaft

$

$

Currently unavailable

78

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

79

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

80

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

81

Toro 7-3123

Cable Tie

$

$

Not available

82

Toro 12-5440

Strap Cable Tie

$

$

Currently unavailable

83

Toro 3242-1

5/16-18 X 1/2 SQ HD

$4.49

$

Usually ships in 3-6 days

0

84

Toro 7-3796

Pulley

$

$

Not available

85

Toro 17-0380

Idler Plate (Incl. Ref. #58)

$

$

Currently unavailable

86

Toro 12-3620

Frame

$

$

Currently unavailable

87

Toro 12-3880

Mount Idler Pulley

$

$

Currently unavailable

88

Toro 7-3668

Pedal Stop

$

$

Currently unavailable

89

Toro 12-5300

Brake Pedal

$

$

Currently unavailable

90

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

91

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
