57222 - Toro 32" Lawn Tractor (SN: 001000001 - 001999999) (1971) STEERING AND TRANSMISSION ASSEMBLY Parts Diagram

32" Lawn Tractor

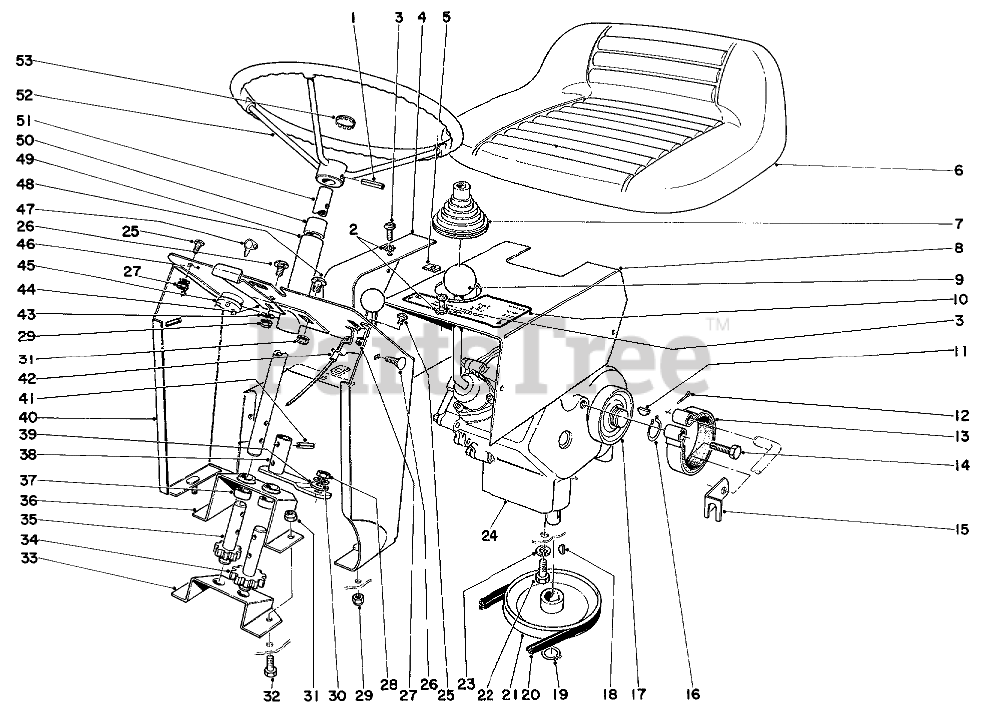

STEERING AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 7

0

2

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

4

Toro 7-3873

Chain Guard

$

$

Not available

5

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

6

Toro 7-7950

Seat

$

$

Currently unavailable

7

Toro 7-3893

Boot Shift Lever

$

$

Not available

8

Toro 7-3784

Cover Transmission

$

$

Currently unavailable

9

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

10

Toro 7-8130

Decal Model 57111

$

$

Currently unavailable

Toro 7-8140

Decal Model 57222

Note: Not illustrated

$

$

Currently unavailable

11

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

12

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

13

Toro 7-6340

Brake Band

$

$

Not available

14

Toro 32104-28

He Ha. Screw

$

$

Not available

15

Toro 7-6300

Retainer Brake Rod

$

$

Currently unavailable

16

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

17

Toro 7-3785

Brake Drum

$

$

Currently unavailable

18

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

19

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

20

Toro 7-3890

TRANS TO ENGINE BELT

$

$

Not available

21

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

24

Toro 7-3708

Transmission

$

$

Currently unavailable

25

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

26

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

27

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

28

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

29

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

30

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

31

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

33

Toro 7-3710

Bracket Steering

$

$

Not available

34

Toro 7-3733

Steering Gear

$

$

Currently unavailable

35

Toro 7-3734

Pinion Gear

$

$

Currently unavailable

36

Toro 7-3711

Support Steering

$

$

Currently unavailable

37

Toro 7-3747

Spacer

$

$

Not available

38

Toro 7-3883

Steering Arm

$

$

Currently unavailable

39

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

40

Toro 7-4940

Rear Hood Support (Recoil)

$

$

Currently unavailable

Toro 7-4810

Rear Hood Support (Electric)

Note: Not illustrated

$

$

Currently unavailable

41

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

42

Toro 7-4100

Throttle Control

$

$

Currently unavailable

43

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 7-5080

Hood Latch

$

$

Currently unavailable

45

Toro 7-5240

STARTER SWITCH

$

$

Not available

46

Toro 7-8420

Decal Dash Model 57043

$

$

Currently unavailable

Toro 7-8410

Decal Dash Model 57077

Note: Not illustrated

$

$

Currently unavailable

47

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

48

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

49

Toro 7-3725

Steering Tube Assy.

$

$

Currently unavailable

50

Toro 256-167

BUSHING

$

$

Not available

51

Toro 7-3723

Shaft Steering

$

$

Currently unavailable

52

Toro 7-3722

Steering Wheel

$

$

Currently unavailable

53

Toro 7-3892

Plug

$

$

Currently unavailable
