57222 - Toro 32" Lawn Tractor (SN: 001000001 - 001999999) (1971) REAR AXLE ASSEMBLY Parts Diagram

32" Lawn Tractor

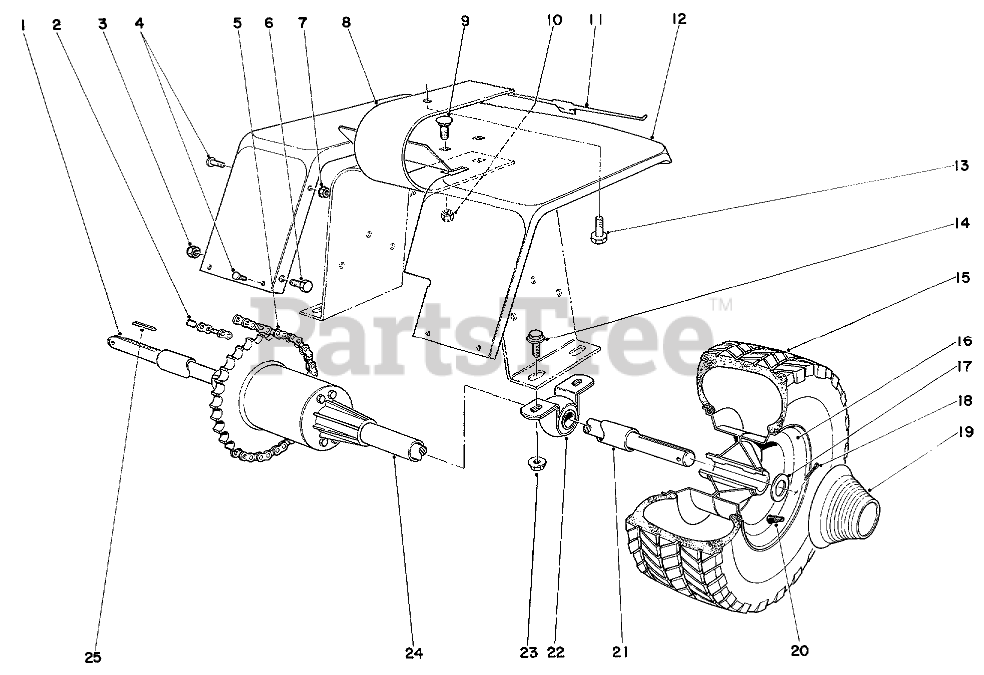

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-8620

Differential Model #136

$

$

Currently unavailable

2

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

4

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

5

Toro 7-3786

Roller Chain

$

$

Not available

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

8

Toro 7-8650

Seat Spring

$

$

Currently unavailable

9

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

11

Toro 7-8050

Decal

$

$

Currently unavailable

12

Toro 7-3745

Fender

$

$

Currently unavailable

13

Toro 3235-4

Capscrew

$

$

Currently unavailable

14

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

15

Toro 231-56

Tire

$

$

Currently unavailable

16

Toro 217-98

Wheel Rim

$

$

Currently unavailable

17

Toro 7-4115

Waxer

$

$

Currently unavailable

18

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

19

Toro 7-4116

Hub Cap

$

$

Currently unavailable

20

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

21

Toro 7-8640

Tube Rear Axle

$

$

Currently unavailable

22

Toro 7-3770

PILLOW BLOCK

$

$

Not available

23

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 7-3877

Tube Rear Axle

$

$

Currently unavailable

25

Toro 5-1865

KEY

$

$

Not available
