57222 - Toro 32" Lawn Tractor (SN: 001000001 - 001999999) (1971) MODEL 29965 STARTER MOTOR ASSEMBLY (ELECTRIC) Parts Diagram

32" Lawn Tractor

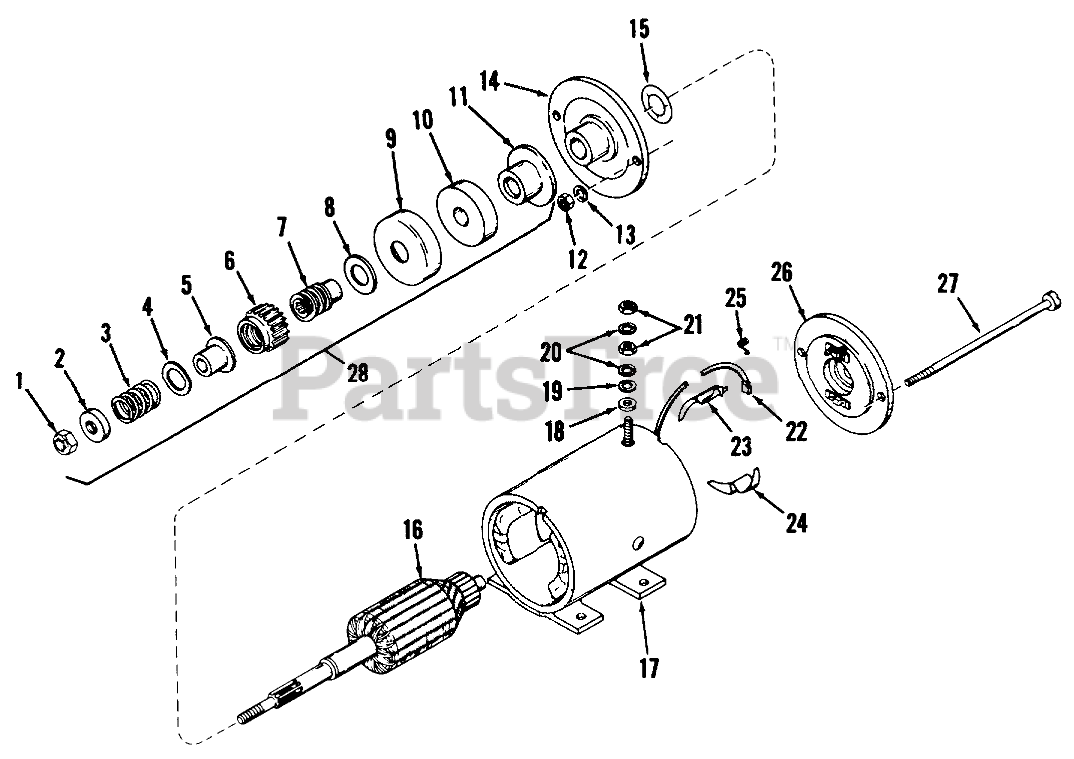

MODEL 29965 STARTER MOTOR ASSEMBLY (ELECTRIC) Parts Diagram

  • Title

1

Tecumseh 30004

Nut, Elastic stop

$

$

Currently unavailable

2

Tecumseh 28692

51084 3 1/2HP W/334

$

$

Currently unavailable

3

Tecumseh 28693

Spring, Anti-drift

$

$

Currently unavailable

4

Tecumseh 28694

Washer, Pinion

$

$

Currently unavailable

5

Tecumseh 28695

Sleeve, Anti-drift

$

$

Currently unavailable

6

Tecumseh 30005

Gear, Pinion

$

$

Currently unavailable

7

Tecumseh 30006

Shaft, Screw

$

$

Currently unavailable

8

Tecumseh 30007

Washer, Thrust
(Superseded to 650791)

$0.99

$

In Stock, only 3 left!

0

9

Tecumseh 30008

Cup, Cushion

$

$

Currently unavailable

10

Tecumseh 30009

Cushion, Rubber

$

$

Currently unavailable

11

Tecumseh 30010

Washer, Thrust

$

$

Currently unavailable

12

Tecumseh 30011

Nut, Securing

$

$

Currently unavailable

13

Tecumseh 30012

Washer, Lock

$

$

Currently unavailable

14

Tecumseh 31590

Cap Assy., Drive end (Incl. bearing)

$

$

Currently unavailable

15

Tecumseh 30014

Washer, Spacing (.010 thick)(Use as required)

$

$

Currently unavailable

15

Tecumseh 30015

Washer, Spacing (.02 thick)(Use as required)

$

$

Currently unavailable

16

Tecumseh 30016

Armature

$

$

Currently unavailable

17

Tecumseh 30017

Housing Assy., (Incl. pole shoes, field coils, terminal post, straight mounting bracket, Nos. 18 thru 21, 23, 24, and 1 of 22)

$

$

Currently unavailable

18

Tecumseh 28707

Washer, Insulating

$

$

Currently unavailable

19

Tecumseh 28708

Washer, Plain

$

$

Currently unavailable

20

Tecumseh 28709

Washer, Lock
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 28710

61710/VAR.HILLER AT
(Superseded to 650864)

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 30018A

Brush & Spring Kit (Incl. No. 25)

$

$

Currently unavailable

23

Tecumseh 30019

Insulation

$

$

Currently unavailable

24

Tecumseh 30020

Insulation

$

$

Currently unavailable

25

Tecumseh 30021

Spring, Brush

$

$

Currently unavailable

26

Tecumseh 30022

End Cap Assy., Commutator (Incl. Nos. 25 and 1 of 22)

$

$

Currently unavailable

27

Tecumseh 30023

Bolt, Thru

$

$

Currently unavailable

28

Tecumseh 30003

Drive Assy., Complete (Incl. Nos. 1 thru 11)

$

$

Currently unavailable
