57222 - Toro 32" Lawn Tractor (SN: 001000001 - 001999999) (1971) FRAME ASSEMBLY Parts Diagram

32" Lawn Tractor

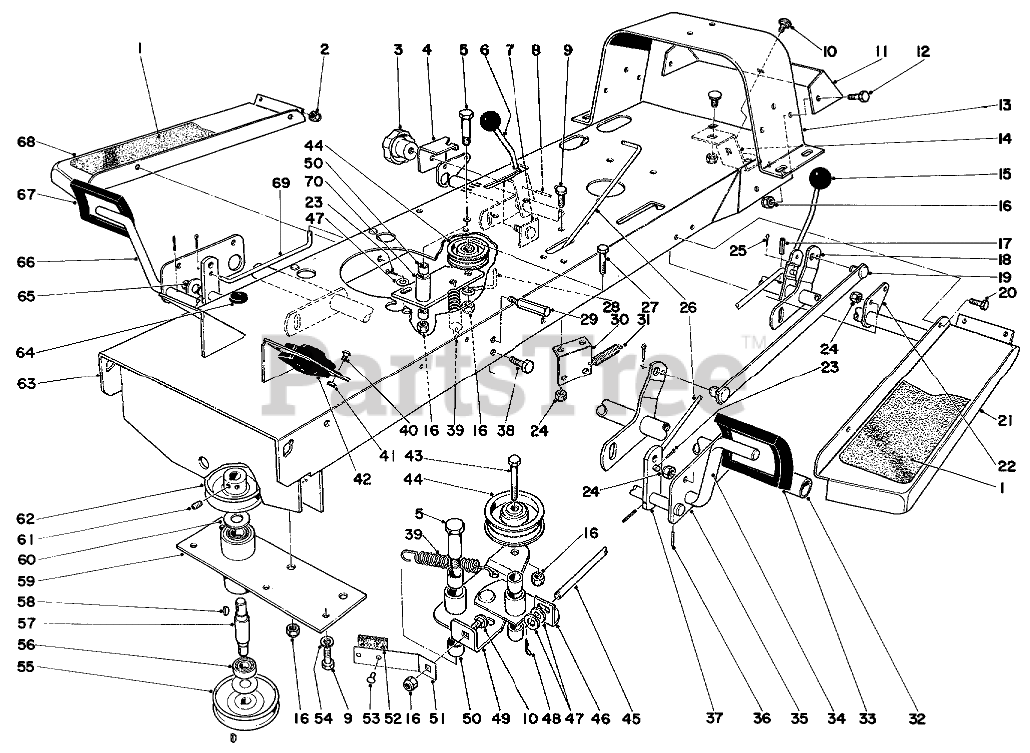

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 7-3894

Foot Pad

$

$

Currently unavailable

2

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

3

$

$

Not available

4

Toro 7-3772

Slide Height Adj.

$

$

Not available

5

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

6

Toro 7-3763

Rod Control Hgt. Adj.

$

$

Currently unavailable

7

Toro 7-3667

Knob Plate

$

$

Currently unavailable

8

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

9

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

10

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Toro 7-3790

Frame Member Rear

$

$

Currently unavailable

12

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

13

Toro 7-3678

Rear Support

$

$

Currently unavailable

14

Toro 7-3775

Bracket Hitch

$

$

Currently unavailable

15

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

16

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

17

Toro 32121-29

1/8 X 1-3/8 ROLL PIN

$

$

Not available

18

Toro 7-3758

Rear Height Adj. Tube

$

$

Not available

19

Toro 7-3761

Height Adj. Link

$

$

Currently unavailable

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Toro 7-3681

Footrest

$

$

Currently unavailable

22

Toro 7-3671

Bracket Tube

$

$

Currently unavailable

23

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

24

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

25

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

26

Toro 7-6350

Brake Rod

$

$

Currently unavailable

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 7-0751

Belt Retainer

$

$

Currently unavailable

29

Toro 7-3668

Pedal Stop

$

$

Currently unavailable

30

Toro 7-3967

Belt Guide

$

$

Currently unavailable

31

Toro 7-1322

Spring

$

$

Not available

32

Toro 7-3737

Front Height Adj. Tube

$

$

Not available

33

Toro 7-3901

CLUTCH PAD

$

$

Currently unavailable

34

Toro 7-3688

Clutch Pedal

$

$

Currently unavailable

35

Toro 7-3670

Plate Tube

$

$

Currently unavailable

36

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

37

Toro 7-3683

Arm Lever

$

$

Currently unavailable

38

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

39

Toro 7-3970

Spring

$

$

Not available

40

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

41

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

42

Toro 7-6990

Mount Rubber

$

$

Currently unavailable

43

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

45

Toro 7-3885

Clutch Rod Blade

$

$

Currently unavailable

46

Toro 7-3800

Pivot Bracket

$

$

Currently unavailable

47

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

49

Toro 7-3751

Idler Plate

$

$

Currently unavailable

50

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

51

Toro 7-3801

Clutch Brake

$

$

Currently unavailable

52

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

53

Toro 3295-21

Rivet

$

$

Currently unavailable

54

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

55

Toro 7-3794

Pulley

$

$

Currently unavailable

56

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

57

Toro 7-3728

Pulley Shaft

$

$

Currently unavailable

58

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

59

Toro 7-3730

Pulley Tube

$

$

Not available

60

Toro 7-0777

Bearing Washer

$

$

Not available

61

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

62

Toro 7-3796

Pulley

$

$

Not available

63

Toro 7-7220

Frame

$

$

Currently unavailable

64

Toro 237-62

GROMMET

$

$

Currently unavailable

65

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

66

Toro 7-3690

Brake Pedal

$

$

Currently unavailable

67

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

68

Toro 7-3680

Footrest

$

$

Currently unavailable

69

Toro 7-3741

Clutch Rod

$

$

Currently unavailable

70

Toro 7-3740

Idler Arm

$

$

Currently unavailable
