57222 - Toro 32" Lawn Tractor (SN: 001000001 - 001999999) (1971) ENGINE TECUMSEH MODEL NOS. V70-125148 (RECOIL) AND NOS. V70-125149 (ELECTRIC) Parts Diagram

32" Lawn Tractor

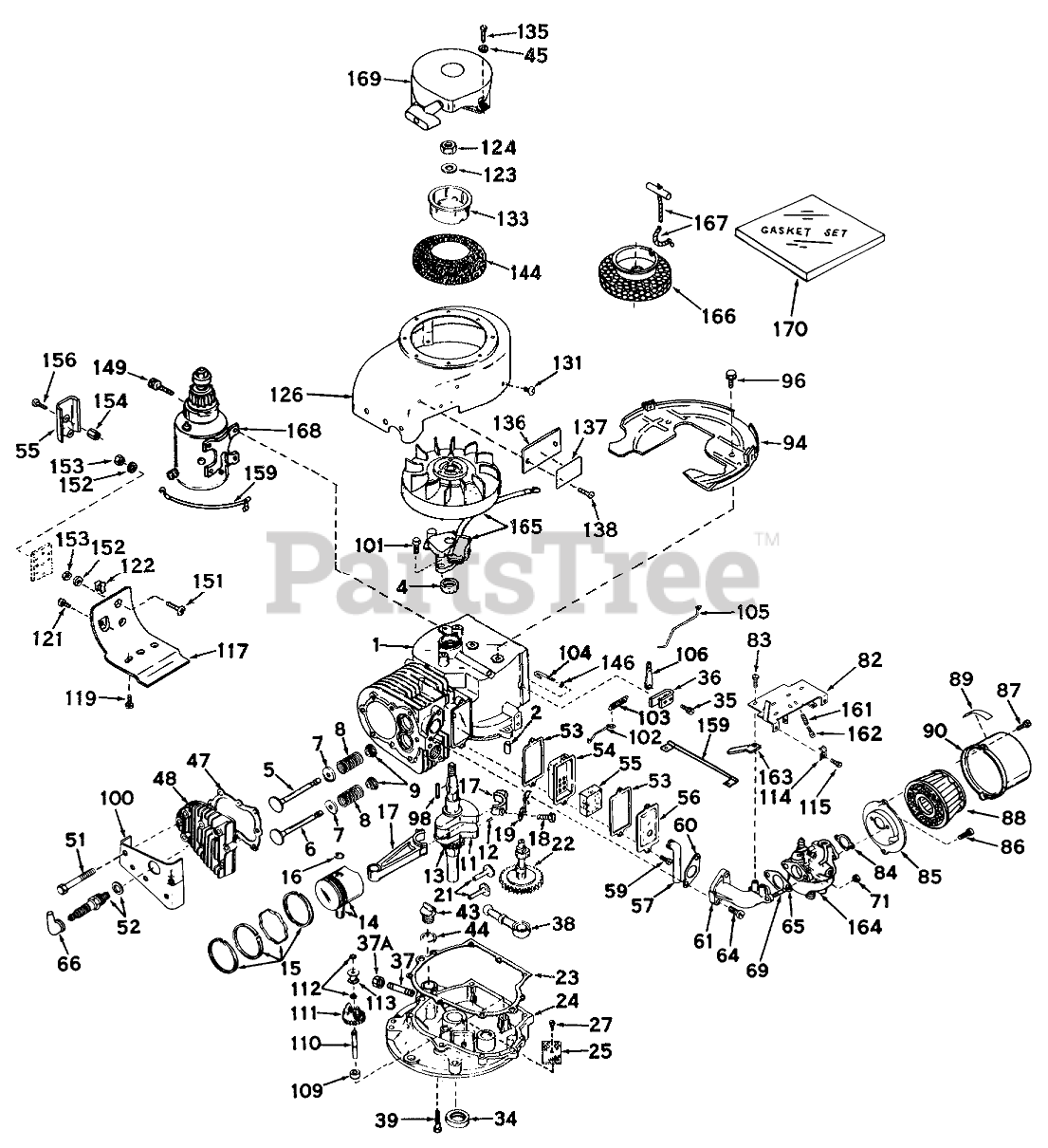

ENGINE TECUMSEH MODEL NOS. V70-125148 (RECOIL) AND NOS. V70-125149 (ELECTRIC) Parts Diagram

  • Title

1

Tecumseh 32640

Cylinder Assy. (Incl. Nos. 2 & 4)

$

$

Currently unavailable

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

4

Tecumseh 32630

Oil Seal

Note: Indicates items included in Gasket Set, Part No. 32658A.

$8.49

$

Usually ships in 3-12 days

0

5

Tecumseh 32783

Valve, Intake (Std.) (Incl. No. 9)

$16.99

$

In Stock, only 2 left!

0

5

Tecumseh 32784

Valve, Intake (1/32" oversize) (Incl. No. 9)

$69.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27878A

Valve, Exhaust (Std.) (Incl. No. 9)

$23.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27880A

Valve, Exhaust (1/32" oversize) (Incl. No. 9)

$

$

Not available

7

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

9

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

11

Tecumseh 32925

Crankshaft Assy. (Incl. Nos. 12 & 13)
(Superseded to 32925B)

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Gear-Crankshaft

$11.99

$

In Stock, only 1 left!

0

14

Tecumseh 32592

Piston & Pin Assy. (Std.) (Incl. 2 of No. 16)
(Superseded to 32592B)

$52.99

$

In Stock, only 1 left!

0

14

Tecumseh 32593

Piston & Pin Assy. (.010 over-size) (Incl. 2 of No. 16)
(Superseded to 32593B)

$57.99

$

In Stock, only 1 left!

0

14

Tecumseh 32594

Piston & Pin Assy. (.020 over-size) (Incl. 2 of No. 16)
(Superseded to 32594B)

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 32595

"O"Ring

$

$

Not available

15

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 32597

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 32591A

Rod Assy., Connecting (Incl. Nos. 18 & 19)
(Superseded to 32591C)

$

$

Not available

18

Tecumseh 650662

Screw, Hex Hd.
(Superseded to 650662C)

$3.99

$

Usually ships in 3-12 days

0

19

Tecumseh 32590

Plate, Lock

$

$

Not available

21

Tecumseh 27893

Lifter Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

22

Tecumseh 32114

Screw

$92.99

$

Usually ships in 3-12 days

0

23

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Indicates items included in Gasket Set, Part No. 32658A.

$4.49

$

In Stock, Qty 6

0

24

Tecumseh 31471B

Flange Assy., Mounting (Incl. Nos. 25, 27, 34, 37, 43, 44 & 110)
(Superseded to 31471D)

$158.99

$

In Stock, only 1 left!

0

25

Tecumseh 31355

Screen-Oil Filter

$5.49

$

Usually ships in 3-12 days

0

27

Tecumseh 29117

Screw

$1.99

$

In Stock, only 1 left!

0

34

Tecumseh 27897

Seal-Oil

Note: Indicates items included in Gasket Set, Part No. 32658A.

$8.49

$

In Stock, Qty 17

0

35

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 8

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

37

Tecumseh 30968

Nipple, Pipe

$7.49

$

Usually ships in 3-12 days

0

37A

Tecumseh 30969

Cap-Pipe

$5.49

$

In Stock, only 1 left!

0

38

Tecumseh 31350

Pump Assy., Oil

$

$

Currently unavailable

39

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

43

Tecumseh 27625

Plug-Fill, Oil

$2.49

$

In Stock, Qty 7

0

44

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket Set, Part No. 32658A.

$1.99

$

In Stock, only 3 left!

0

45

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

47

Tecumseh 32631

Gasket-Cylinder Head
(Superseded to 32631A)

Note: Indicates items included in Gasket Set, Part No. 32658A.

$11.99

$

In Stock, Qty 9

0

48

Tecumseh 30938A

CYLINDER HEAD
(Superseded to 36446)

Note: Indicates items included in Gasket Set, Part No. 32658A.

$

$

Not available

51

Tecumseh 650697

Screw Hex Hd. Cap
(Superseded to 650697A)

$1.99

$

In Stock, only 3 left!

0

52

Toro 121943

Plug, Spark (Champion J-8 or equiv.)

$

$

Currently unavailable

53

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates items included in Gasket Set, Part No. 32658A.

$1.49

$

In Stock, Qty 10

0

54

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

55

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

56

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

57

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

Usually ships in 3-12 days

0

59

Tecumseh 650128

Screw

Note: Indicates items included in Gasket Set, Part No. 32658A.

$5.49

$

Usually ships in 3-12 days

0

60

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates items included in Gasket Set, Part No. 32658A.

$5.99

$

In Stock, Qty 20+

0

61

Tecumseh 32632

Pipe-Intake

$26.99

$

Usually ships in 3-12 days

0

64

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

65

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set, Part No. 32658A.

$2.99

$

In Stock, Qty 8

0

66

Tecumseh 27276

51005 GIL.ROTARY TI
(Superseded to 610118)

$6.49

$

In Stock, only 2 left!

0

69

Tecumseh 32633

Stud

$

$

Currently unavailable

71

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

82

Tecumseh 32181

Depth Bar
(Superseded to 32181A)

$

$

Not available

83

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

84

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates items included in Gasket Set, Part No. 32658A.

$4.49

$

In Stock, Qty 20+

0

85

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 1 left!

0

86

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

87

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

88

Tecumseh 30727

Element

$7.49

$

In Stock, only 2 left!

0

89

Tecumseh 31752

Decal

$

$

Not available

90

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

94

Tecumseh 29536

Baffle Blower Housing

$18.99

$

Usually ships in 3-12 days

0

96

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

98

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

100

Tecumseh 30939

Cover, Cylinder head
(Superseded to 30939B)

$

$

Not available

101

Tecumseh 650489

Screw

$

$

Not available

101

Tecumseh 650516

Screw, Hex Hd. Cap, Sems

$1.99

$

Usually ships in 3-12 days

0

102

Tecumseh 32582

Link Governor Spring

$1.99

$

In Stock, only 4 left!

0

103

Tecumseh 31361

Spring Governor

$1.99

$

In Stock, Qty 5

0

104

Tecumseh 30669

Rod, Governor (Incl. No. 146)

$7.49

$

In Stock, only 1 left!

0

105

Tecumseh 31823

Link Governor

$1.99

$

In Stock, only 4 left!

0

106

Tecumseh 31357

Lever-Governor

$1.99

$

In Stock, only 1 left!

0

109

Tecumseh 31707

Spacer
(Superseded to 31707A)

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 30668

Shaft, Governor

$1.99

$

Usually ships in 3-12 days

0

111

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, only 1 left!

0

112

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

113

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

114

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

115

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

117

Tecumseh 30622

Emnsion, Blower Housing
(Superseded to 30622A)

$

$

Not available

119

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

121

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

121

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

122

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

123

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

124

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

126

Tecumseh 33211

Housing, Blower (Model V70-125148)
(Superseded to 32223A)

$

$

Currently unavailable

126

Tecumseh 32222

Housing, Blower (Model V70-125149)
(Superseded to 32223A)

$

$

Currently unavailable

131

Tecumseh 29747A

Screw, Hex Hd.
(Superseded to 29747B)

$1.99

$

In Stock, Qty 9

0

133

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

135

Tecumseh 30513

Screw

$0.99

$

Usually ships in 3-12 days

0

136

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

137

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

138

Tecumseh 29309

DRIVE STUD

$

$

Currently unavailable

144

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

146

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

149

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

151

Tecumseh 28726

56008 ADN.KIT 28727

$

$

Currently unavailable

152

Tecumseh 28727

Lockwasher (Model V70-125149)

$

$

Currently unavailable

153

Tecumseh 28728

33144C/45C/49A/53A

$

$

Currently unavailable

154

Tecumseh 30065

Nut, Long (Model V70-125149)

$

$

Currently unavailable

155

Tecumseh 30064

Cover, Panel

$

$

Not available

156

Tecumseh 30066

Screw

$

$

Currently unavailable

159

Tecumseh 28468

Wire, Ground
(Superseded to 35349)

$

$

Not available

159

Tecumseh 30831

Wire, Ground

$5.49

$

In Stock, only 1 left!

0

161

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

162

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

163

Tecumseh 32704

Clip

$

$

Currently unavailable

164

Tecumseh 631447

Carburetor
(Superseded to 631792A)

$

$

Not available

165

Tecumseh 610689A

Magneto

$

$

Not available

165

Tecumseh 610681A

Magneto, Alternator (Model V70-125149)

$

$

Currently unavailable

166

Tecumseh 28301

Hub & Screen, Rope Starter

$23.99

$

Usually ships in 3-12 days

0

167

Tecumseh 590343

Rope Assy., Starter

$5.49

$

Usually ships in 3-12 days

0

168

Tecumseh 29965

Motor, Starter
(Superseded to 35765A)

Note: The 29965 and 32468A starter motors used interchangeably. Refer to service number stamped on end cap of motor for identification.

$212.99

$

Usually ships in 3-12 days

0

168

Tecumseh 32468A

Motor, Starter
(Superseded to 35765A)

Note: The 29965 and 32468A starter motors used interchangeably. Refer to service number stamped on end cap of motor for identification.

$212.99

$

Usually ships in 3-12 days

0

169

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0

170

Tecumseh 32658A

Gasket Set
(Superseded to 33239A)

$35.99

$

Usually ships in 3-12 days

0
