57204 - Toro 32" Lawn Tractor (SN: 000000001 - 000999999) (1970) MODEL 610689A MAGNETO ASSEMBLY (RECOIL) Parts Diagram

32" Lawn Tractor

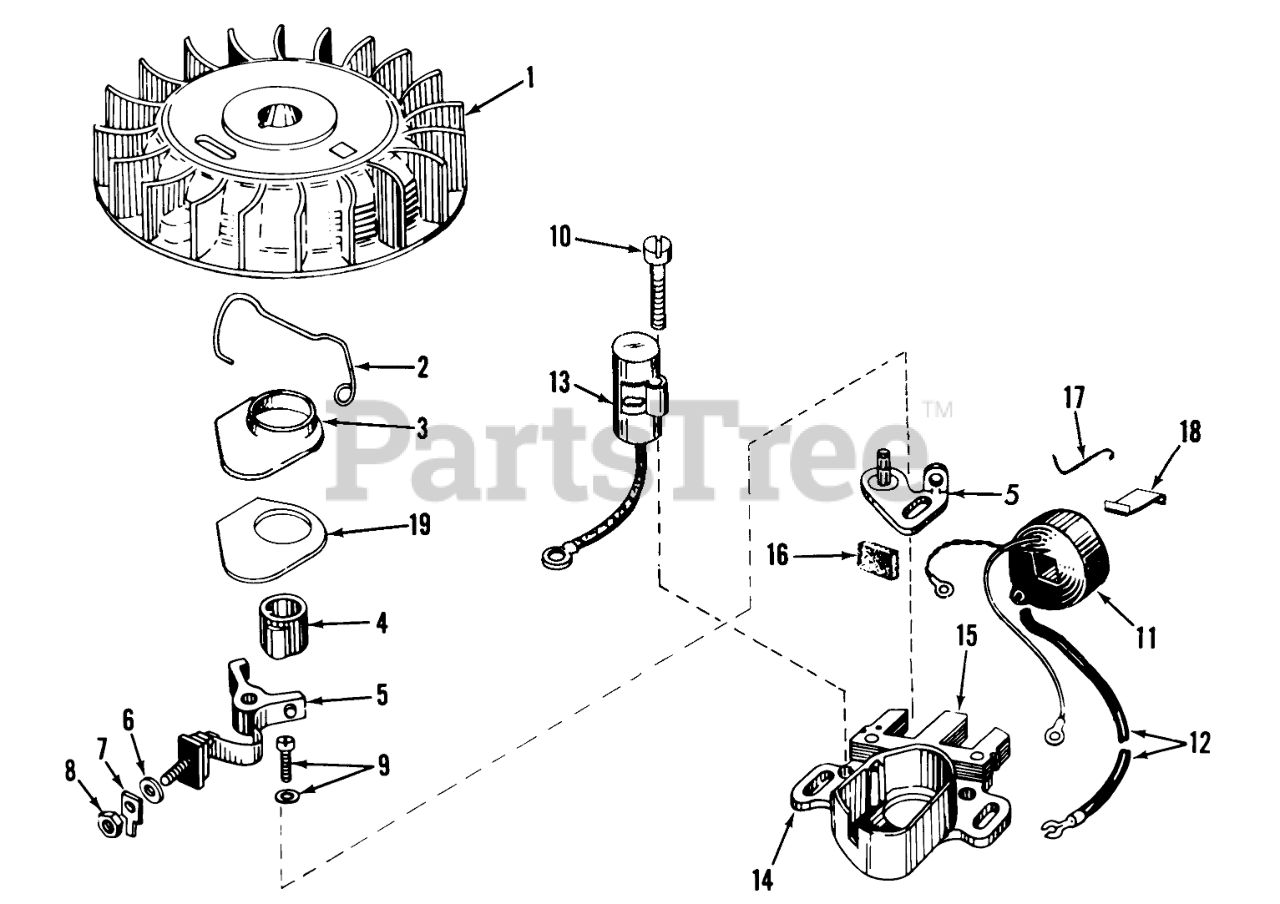

MODEL 610689A MAGNETO ASSEMBLY (RECOIL) Parts Diagram

  • Title

1

Tecumseh 30555

Flywheel

$

$

Not available

2

Tecumseh 30551

Spring Breaker Box

$

$

Not available

3

Tecumseh 30550

Cover, Dust
(Superseded to 610947)

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30992

Cam-Breaker

$

$

Not available

5

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 1 left!

0

6

Tecumseh 610385

Washer

$

$

Not available

7

Tecumseh 30843

Terminal
(Superseded to 33356)

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 610408

DECAL

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

$

$

Not available

10

Toro 0610593

Screw, Condenser Fastening

$

$

Currently unavailable

11

Tecumseh 30560

Coil Assy., (Incl. Ref. Nos. 12, 13 & 18)
(Superseded to 30560A)

$48.99

$

In Stock, only 1 left!

0

12

Tecumseh 30554

Wire, Lead

$

$

Not available

13

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 9

0

14

Tecumseh 30545

Core & Plate

$

$

Not available

15

Tecumseh 30461A

Stator Assy., (Incl. Nos. 2, 3, 5 thru 14 & 16 thru 19)
(Superseded to 756143)

$

$

Not available

16

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

17

Tecumseh 31311

Clip, Coil

$

$

Not available

18

Tecumseh 29629

Spring Coil Wedge

$

$

Not available

19

Tecumseh 30883

Gasket Dust
(Superseded to 610955)

$

$

Not available
