57204 - Toro 32" Lawn Tractor (SN: 000000001 - 000999999) (1970) HOOD AND ENGINE ASSEMBLY Parts Diagram

32" Lawn Tractor

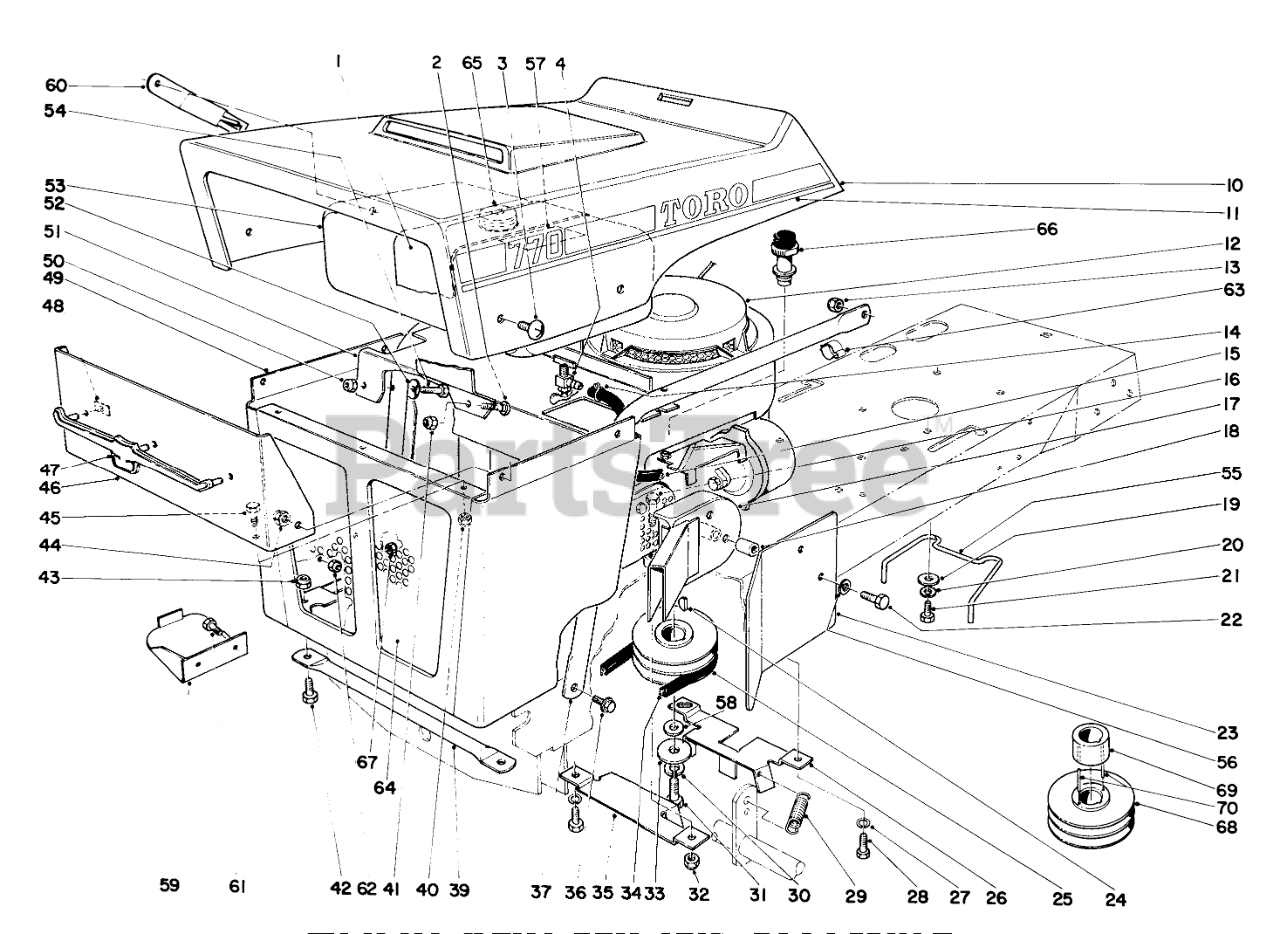

HOOD AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4900

Strap Gas Tank

$

$

Currently unavailable

2

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

3

Toro 3258-158S

Truss Head Screw

$

$

Currently unavailable

4

Toro 304-88

Hose Fitting

$

$

Currently unavailable

10

Toro 7-4980

Hood

$

$

Currently unavailable

11

Toro 7-6450

Decal Hood L. H. (Recoil)

$

$

Currently unavailable

Toro 7-6440

Decal Hood R. H. (Recoil)

Note: Not illustrated

$

$

Currently unavailable

Toro 7-6460

Decal Hood R. H. (Electric)

Note: Not illustrated

$

$

Currently unavailable

Toro 7-6470

Decal Hood L. H. (Electric)

Note: Not illustrated

$

$

Currently unavailable

12

Toro 221-344

Engine (Recoil)

$

$

Currently unavailable

Toro 221-345

Engine (Electric)

Note: Not illustrated

$

$

Currently unavailable

13

Toro 32152-4S

Nut

$

$

Currently unavailable

14

Toro 2412-6

CLAMP-HOSE

$

$

Not available

15

Toro 7-3983

Hose

$

$

Currently unavailable

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 7-5070

Muffler Baffle

$

$

Not available

18

Toro 7-5180

Spacer Muffler

$

$

Currently unavailable

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

21

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

23

Toro 7-5100

Heat Shield Muffler

$

$

Currently unavailable

24

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

25

Toro 7-3748

Engine Pulley

$

$

Currently unavailable

26

Toro 7-5050

Belt Guide

$

$

Not available

27

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

28

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 7-3970

Spring

$

$

Not available

30

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

31

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

32

32152-1S

Nut

$

$

Not available

33

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

34

Toro 7-3887

ENGINE BELT

$

$

Not available

35

Toro 7-3766

Belt Guide

$

$

Currently unavailable

36

Toro 32140-15

1/4-20X5/8 THDG SEMS

$

$

Currently unavailable

37

Toro 7-3905

Support Gas Tank L. H.

$

$

Currently unavailable

Toro 7-3906

Support Gas Tank R. H.

Note: Not illustrated

$

$

Currently unavailable

39

Toro 7-3682

Rod Grille Mount

$

$

Currently unavailable

40

Toro 32152-4S

Nut

$

$

Currently unavailable

41

32152-1S

Nut

$

$

Not available

42

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

43

Toro 32152-4S

Nut

$

$

Currently unavailable

44

32152-1S

Nut

$

$

Not available

45

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

46

Toro 7-3451

Grille Panel

$

$

Currently unavailable

47

Toro 7-3441

Bullshead

$

$

Currently unavailable

48

Toro 3290-275

Timmerman Nut

$

$

Currently unavailable

49

Toro 7-5170

Grille Assembly (Recoil)

$

$

Currently unavailable

Toro 7-4910

Grille Assembly (Electric)

Note: Not illustrated

$

$

Currently unavailable

50

Toro 32152-4S

Nut

$

$

Currently unavailable

51

Toro 7-3904

Bracket Gas Tank

$

$

Currently unavailable

52

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

53

Toro 7-4920

Gas Tank

$

$

Not available

54

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

55

Toro 7-4310

Belt Retainer

$

$

Currently unavailable

56

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

57

Toro 7-4600

Decal

$

$

Currently unavailable

58

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

59

Toro 7-4510

Trimmer Support

$

$

Currently unavailable

60

Toro 7-4610

Clip Trimmer

$

$

Currently unavailable

61

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

62

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

63

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

64

Toro 7-5040

Grille Panel

$

$

Currently unavailable

65

Toro 222-16

GAS CAP

$

$

Not available

66

Toro 7-5210

Oil Minder (Recoil)

$

$

Currently unavailable

67

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

68

Toro 7-6810

Engine Pulley used on Model #57204-000451 thru 000877

$

$

Currently unavailable

69

Toro 7-6820

Adapter used on Model #57204-000451 thru 000877

$

$

Currently unavailable

70

Toro 32121-24

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0
