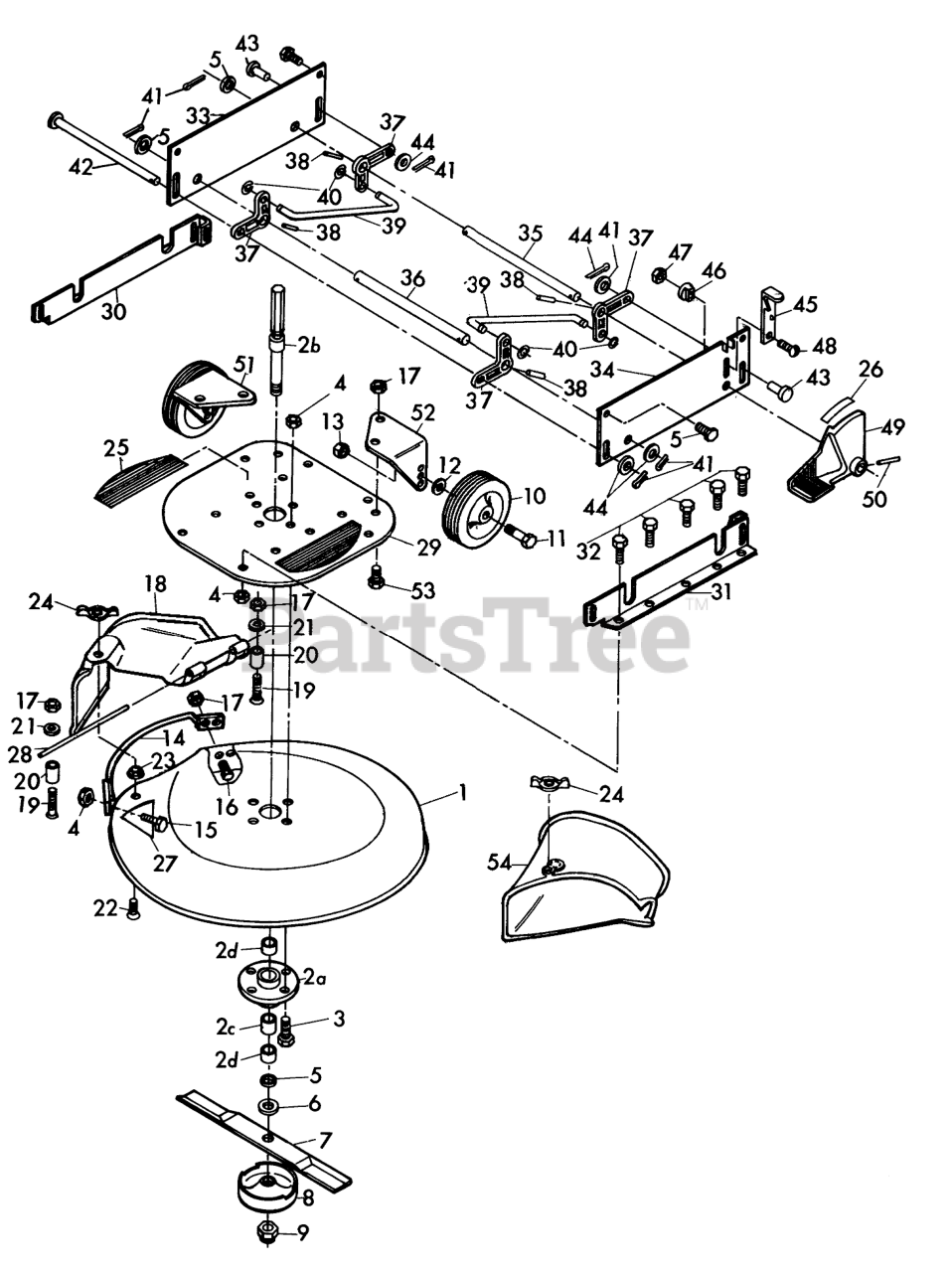

57201 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) MOWER ATTACHMENT PARTS LIST Parts Diagram

25" Lawn Tractor

MOWER ATTACHMENT PARTS LIST Parts Diagram

  • Title

1

Toro 7-3435

Mower Housing

$

$

Currently unavailable

2

Toro 7-3521

Spindle Housing Consists of:

$

$

Currently unavailable

Toro 7-0287

MOWER SPINDLE HOUSING

$

$

Not available

Toro 7-3413

b. Spindle Assembly

$

$

Currently unavailable

Toro 7-0290

c. Spacer

$

$

Currently unavailable

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 32152-1(s

Nut

$

$

Currently unavailable

5

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

6

Toro 7-0253

WASHER

$

$

Not available

7

Toro 7-3467

Blade

$

$

Currently unavailable

8

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

9

32152-6(s

Nut

$

$

Not available

10

Toro 7-0261

Wheel

$

$

Currently unavailable

11

Toro 7-0262

Axle

$

$

Currently unavailable

12

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

32152-2(s

Nut

$

$

Not available

14

Toro 3-7718

Rod

$

$

Currently unavailable

15

Toro 32122-33

5/16-18X5/8 TRS HD MS

$

$

Not available

16

Toro 3290-145

SCREW

$5.99

$

Usually ships in 3-6 days

0

17

32152-4(s

Nut

$

$

Not available

18

Toro 3-0674

DEFLECTOR

$

$

Not available

19

Toro 32108-7

Screw

$

$

Not available

20

Toro 3-5528

Spacer

$

$

Not available

21

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32108-21

5/16-18X7/8 FLT HD MS

$

$

Currently unavailable

23

Toro 3290-147

PAL NUT

$

$

Not available

24

Toro 3-2625

Wing Nut

$

$

Not available

25

Toro 7-0771

Footpad

$

$

Currently unavailable

26

Toro 7-0273

Cutting Height Decal

$

$

Currently unavailable

27

Toro 7-3402

Safety Decal

$

$

Currently unavailable

28

Toro 3-1176

Hinge Pin

$

$

Currently unavailable

29

Toro 7-3422

Shroud

$

$

Currently unavailable

30

Toro 7-3518

Mounting Bracket (R.H. lower)

$

$

Currently unavailable

31

Toro 7-3520

Mounting Bracket (L.H. lower)

$

$

Currently unavailable

32

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

33

Toro 7-0264

Mounting Plate R.H.

$

$

Currently unavailable

34

Toro 7-0263

Mounting Plate L.H.

$

$

Currently unavailable

35

Toro 7-0267

Rear Pivot Shaft

$

$

Currently unavailable

36

Toro 7-0266

Front Pivot Shaft

$

$

Currently unavailable

37

Toro 7-0265

Bell Crank

$

$

Not available

38

Toro 32121-71(s

Roll Pin

$

$

Currently unavailable

39

Toro 7-0268

Lift Link

$

$

Currently unavailable

40

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

41

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

42

Toro 7-0270

Lift Shaft

$

$

Not available

43

Toro 7-0271

Lift Pin

$

$

Currently unavailable

44

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

45

Toro 7-0274

Lift Pawl

$

$

Currently unavailable

46

Toro 7-0275

Pawl Slide Nut

$

$

Currently unavailable

47

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

48

Toro 32140-53(s

Screw

$

$

Currently unavailable

49

Toro 7-0272

Lift Ratchet

$

$

Currently unavailable

50

Toro 32121-71(s

Roll Pin

$

$

Currently unavailable

51

Toro 7-0258

Wheel Bracket R.H.

$

$

Currently unavailable

52

Toro 7-0260

Wheel Bracket L.H.

$

$

Currently unavailable

53

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Bagging Attachment Adapter Not Included With Tractor

$

$

Not available
