57201 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) FRONT END AND WHEELS Parts Diagram

25" Lawn Tractor

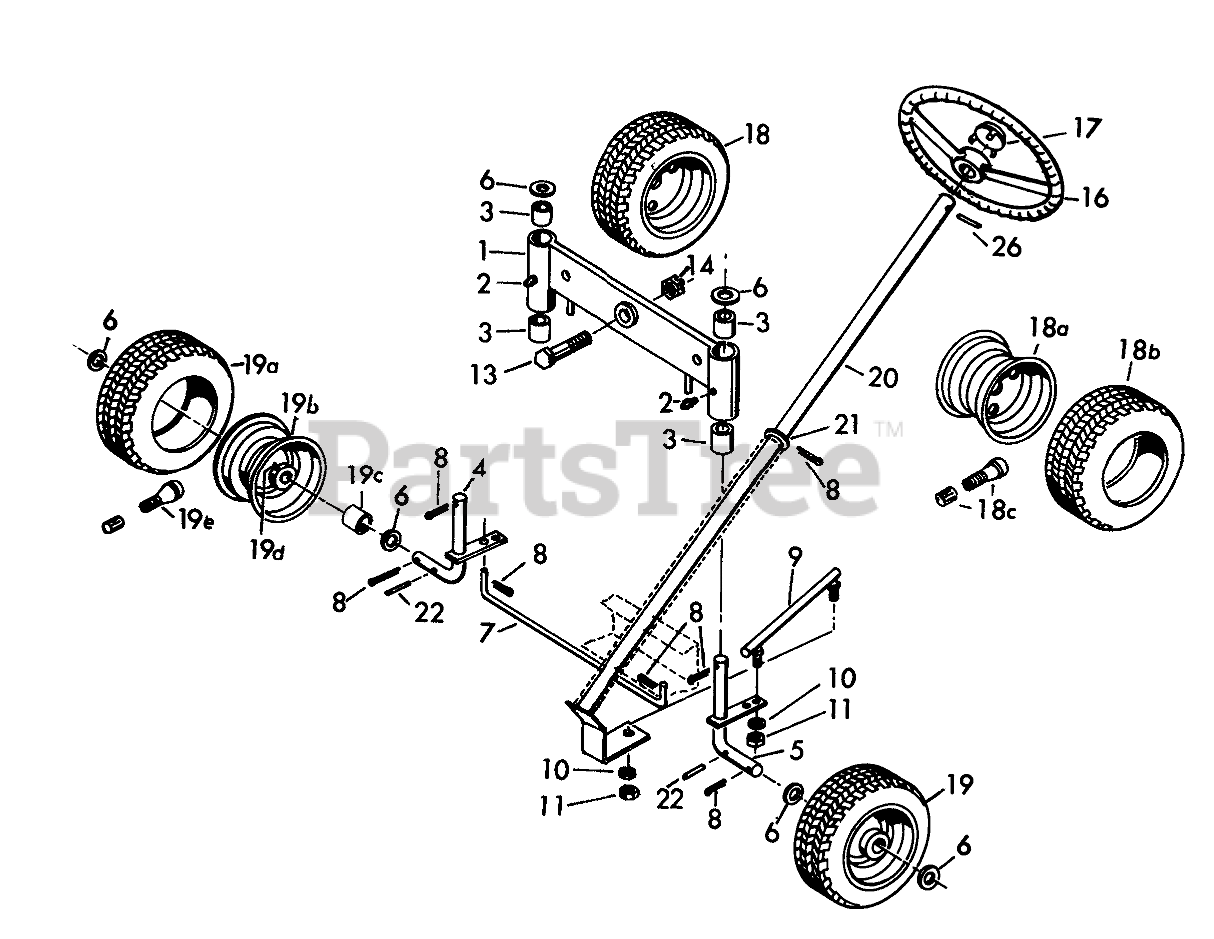

FRONT END AND WHEELS Parts Diagram

  • Title

1

Toro 7-3534

Front Axle Housing

$

$

Currently unavailable

2

Toro 302-43(s

Grease Fitting

$

$

Currently unavailable

3

Toro 256-192(s

Bushing

$

$

Currently unavailable

4

Toro 7-3415

Axle-Right Hand

$

$

Not available

5

Toro 7-3416

Axle-Left Hand

$

$

Currently unavailable

6

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

7

Toro 7-0176

Tie Rod

$

$

Currently unavailable

8

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

9

Toro 7-3457

Ball Joint Assembly

$

$

Currently unavailable

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

13

Toro 7-3623

Bolt

$

$

Currently unavailable

14

32152-6(s

Nut

$

$

Not available

16

Toro 7-0470

Steering Wheel

$

$

Currently unavailable

17

Toro 7-0921

Steering Wheel Cap

$

$

Currently unavailable

18

Toro 7-3001

Rear Wheel Assembly Consists of

$

$

Not available

Toro 217-73(s

a. Rim

$

$

Currently unavailable

231-49(S

Tire

$

$

Not available

Toro 232-27(S

Valve

$

$

Currently unavailable

19

Toro 7-3462

Front Wheel Assembly Consists of

$

$

Not available

Toro 231-55(s

a. Tire

$

$

Currently unavailable

217-80(s

b. Rim

$

$

Not available

256-170(s

c. Bearing

$

$

Not available

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 7-3465

Steering Post

$

$

Currently unavailable

21

Toro 7-0126

Washer

$

$

Not available

22

Toro 32121-70(s

Pin

$

$

Currently unavailable

23

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

26

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0
