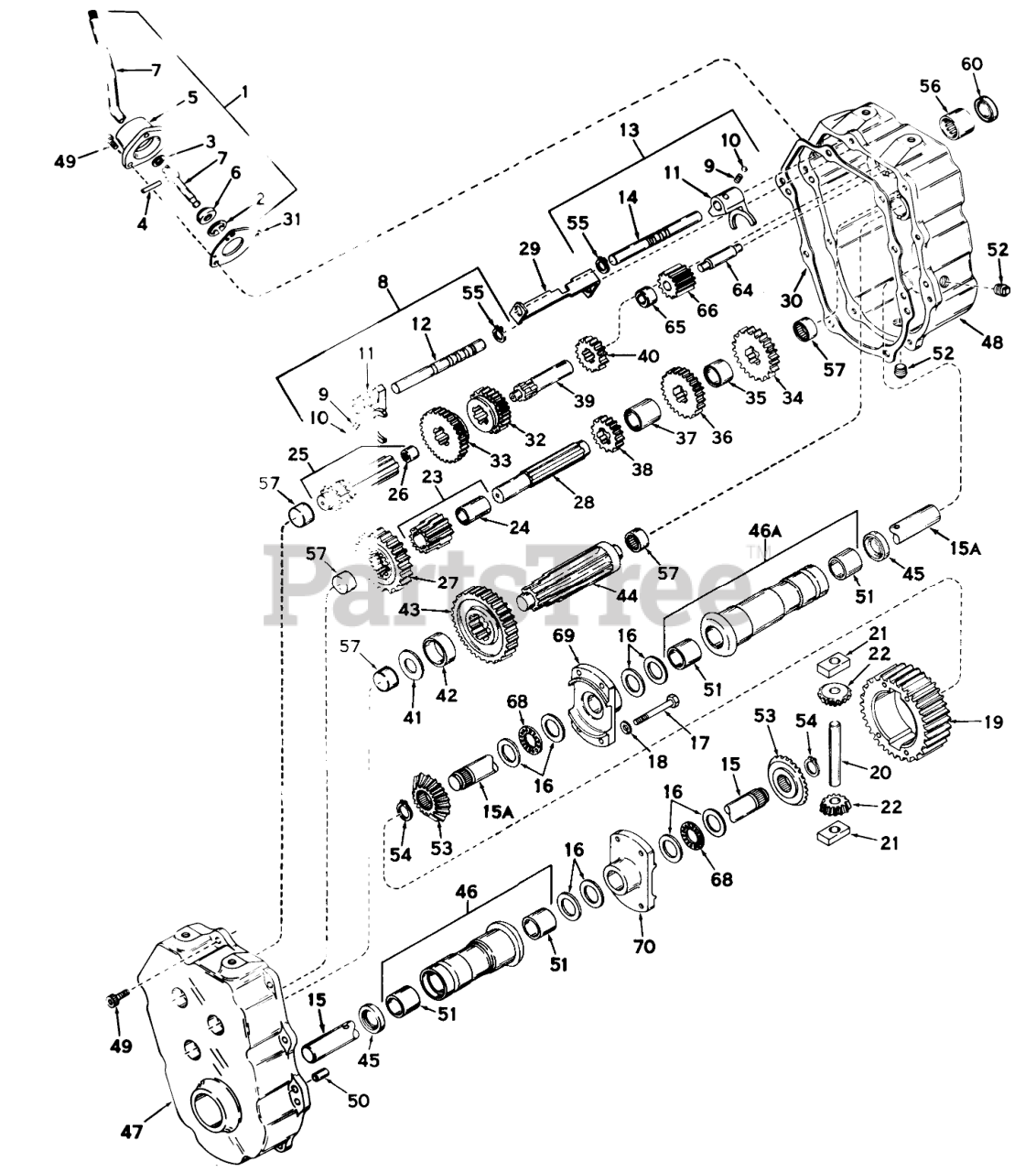

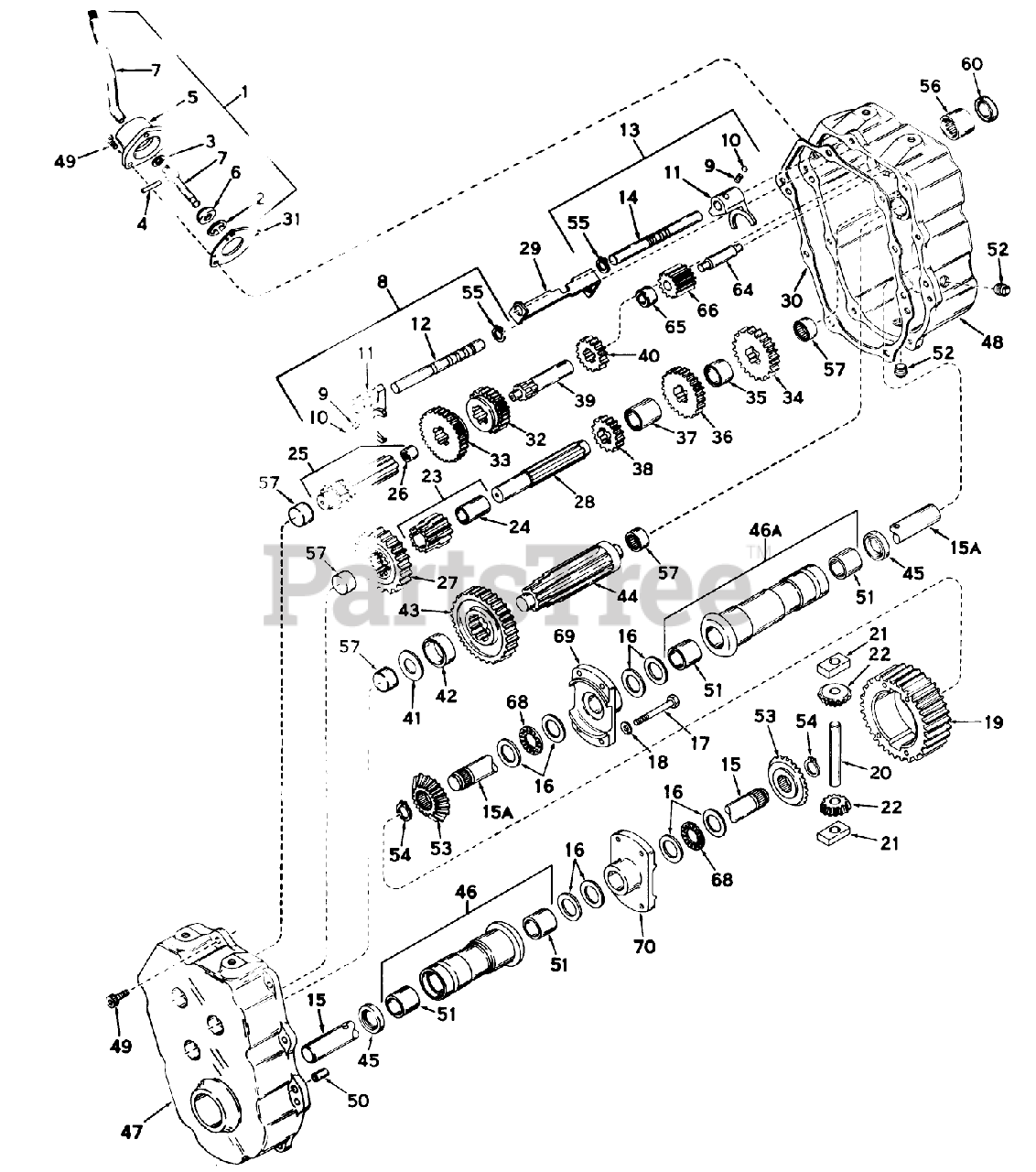

57201 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) 6 H.P. LAWN TRACTOR PARTS LIST Parts Diagram

25" Lawn Tractor

6 H.P. LAWN TRACTOR PARTS LIST Parts Diagram

  • Title
1

Toro 784059A

Lever & Housing Assy., Shift (Incl. Nos. 2 thru 7)

$

$

Currently unavailable

2

Toro 792016

Ring-Snap

$

$

Currently unavailable

3

Toro 792001

O Ring

$

$

Currently unavailable

4

Toro 792002

Roll Pin

$

$

Currently unavailable

5

Toro 784088

Shift Lever Housing

$

$

Currently unavailable

6

Toro 784094

Keeper-Shift Lever

$

$

Currently unavailable

7

Toro 784024

Lever, Shift

$

$

Currently unavailable

8

Toro 784056

Rod Assy., Shift (Incl. Nos. 9 thru 12 & 55)

$

$

Currently unavailable

9

Toro 792003

Spring

$

$

Currently unavailable

10

Toro 792004

Piston ASM

$

$

Currently unavailable

11

Toro 784004

Shift Fork

$

$

Currently unavailable

12

Toro 784057

Rod, Shifter

$

$

Currently unavailable

13

Toro 784054

Rod Assy., Shift (Incl. Nos. 9, 10, 11, 14 & 55)

$

$

Currently unavailable

14

Toro 784055

Rod, Shifter

$

$

Currently unavailable

15

Toro 774042

Axle, L.H.

$

$

Currently unavailable

15A

Toro 774043

Axle, R.H.

$

$

Currently unavailable

16

Toro 780042

Washer

$

$

Currently unavailable

17

Toro 792020

Screw-Hex Hd.

$

$

Currently unavailable

18

Toro 792006

Lockwasher

$

$

Currently unavailable

19

Toro 778033

Gear, Ring

$

$

Currently unavailable

20

Toro 786019

Pin-Drive

$

$

Currently unavailable

21

Toro 786027

Biock-Drive

$

$

Currently unavailable

22

Toro 778014

Pinion-Bevel

$

$

Currently unavailable

23

Toro 778040

Pinion & Bushing Assy. (Incl. No. 24)

$

$

Currently unavailable

24

Toro 780003

Bushing

$

$

Currently unavailable

25

Toro 776014

Shaft Bearing Assy., Shifter (Incl. No. 26)

$

$

Currently unavailable

26

Toro 780018

Bearing

$

$

Currently unavailable

27

Toro 778037

Gear-Spur

$

$

Currently unavailable

28

Toro 776032

Shaft, Idler

$

$

Currently unavailable

29

Toro 784074

Stop-Shifter

$

$

Currently unavailable

30

Toro 788026

Gasket, Case to Cover

$

$

Currently unavailable

31

Toro 788003

Shift Lever Housing Gasket

$

$

Currently unavailable

32

Toro 778019

Gear, Shifting

$

$

Currently unavailable

33

Toro 778020

Gear, Shifting

$

$

Currently unavailable

34

Toro 778021

Gear, Spur (26 teeth)

$

$

Currently unavailable

35

Toro 786014

Spacer

$

$

Currently unavailable

36

Toro 778022

Gear, Spur (22 teeth)

$

$

Currently unavailable

37

Toro 786015

Spacer

$

$

Currently unavailable

38

Toro 778023

Gear, Spur (16 teeth)

$

$

Currently unavailable

39

Toro 776015

Shaft, Input

$

$

Currently unavailable

40

Toro 778024

Gear (10 teeth)

$

$

Currently unavailable

41

Toro 780001

Washer

$

$

Currently unavailable

42

Toro 786017

Spacer

$

$

Currently unavailable

43

Toro 778036

Gear-Output

$

$

Currently unavailable

44

Toro 778041

Shaft, Output

$

$

Currently unavailable

45

Toro 788005

Seal, Oil

$

$

Currently unavailable

46

Toro 782020

Housing & Bushing Assy., L.H. Axle (Incl. No. 51)

$

$

Currently unavailable

46A

Toro 782021

Housing & Bushing Assy., R.H. Axle (Incl. No. 51)

$

$

Currently unavailable

47

Toro 772043

Cover Assy., Transaxle (Incl. No. 57)

$

$

Currently unavailable

48

Toro 770031

Case Assy., Transaxle (Incl. Nos. 56 & 57)

$

$

Currently unavailable

49

Toro 792007

Screw

$

$

Currently unavailable

50

Toro 786026

Dowel Pin

$

$

Currently unavailable

51

Toro 780025

Bushing

$

$

Currently unavailable

52

$

$

Currently unavailable

53

Toro 778039

Gear-Bevel

$

$

Currently unavailable

54

Toro 792018

Ring-Snap

$

$

Currently unavailable

55

Toro 792017

Ring-Snap

$

$

Currently unavailable

56

Toro 780011

Bearing

$

$

Currently unavailable

57

Toro 780013

Bearing

$

$

Currently unavailable

60

Toro 788009

Oil Seal

$

$

Currently unavailable

64

Toro 776008

Shaft, Reverse idler

$

$

Currently unavailable

65

Toro 786008

Spacer, Reverse idler

$

$

Currently unavailable

66

Toro 778016

Idler Reverse

$

$

Currently unavailable

68

Toro 780039

Bearing-Thrust

$

$

Currently unavailable

69

Toro 774029

Carrier, Differential

$

$

Currently unavailable

70

Toro 774028

Carrier, Differential

$

$

Currently unavailable
