5711 - Troy-Bilt Junior IV Rear-Tine Tiller (SN: M0075090 - M0100969) ENGINE, PULLEYS & BELT Parts Diagram

Junior IV Rear-Tine Tiller

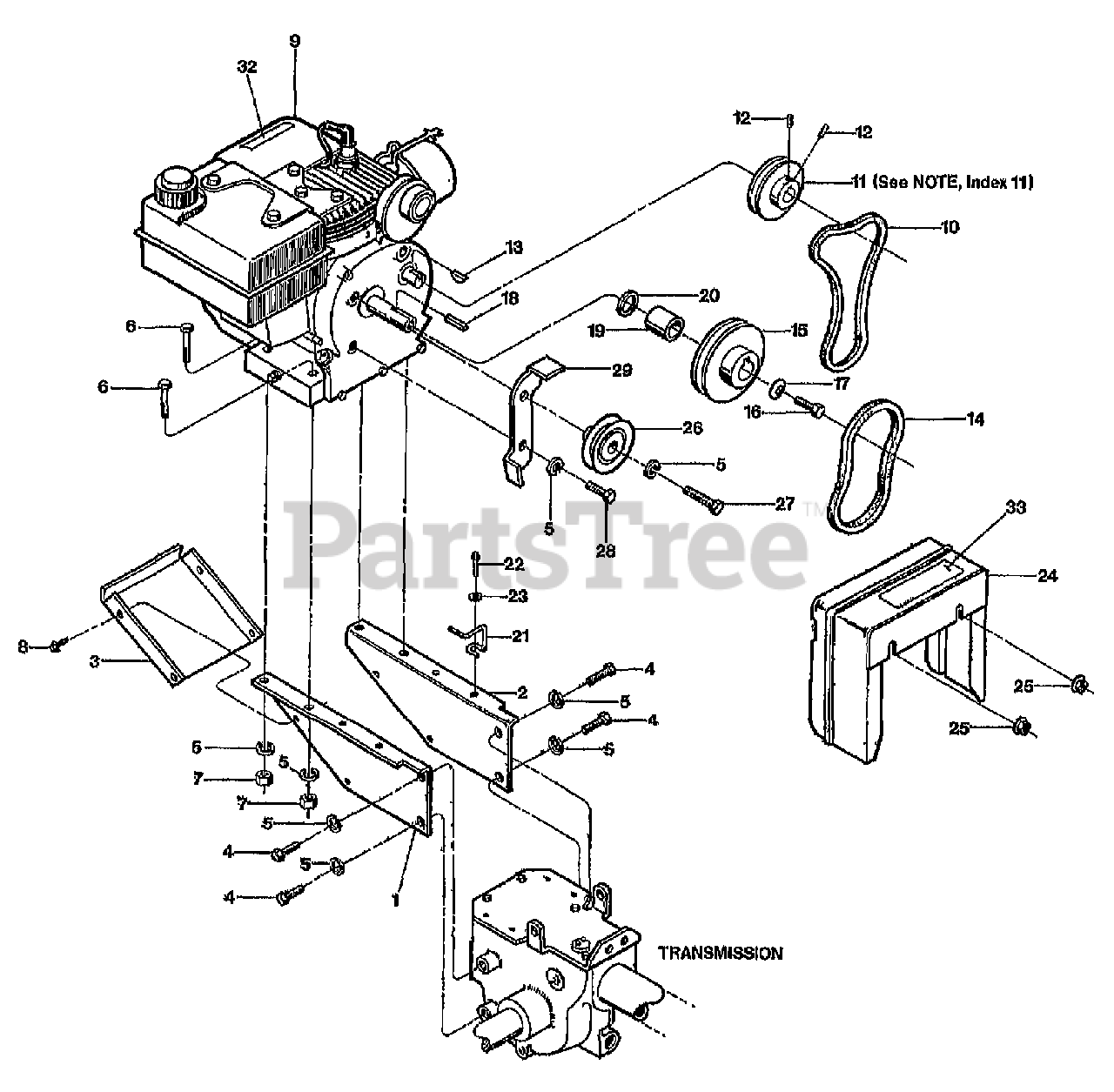

ENGINE, PULLEYS & BELT Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

3

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

5

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

6

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

7

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

8

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 ZP (SEMS- W/PERM WSHR)

$

$

Currently unavailable

9

0

ENGINE

Note: TECUMSEH, STANDARD RECOIL START WITH ELEC SOLID STATE IGNITION, 4HP, MODEL HS40, TYPE 55580K.

$

$

Not available

9

0

ENGINE

Note: TECUMSEH, ELEC START WITH ELEC SOLID STATE IGNITION, 4HP, MODEL HS40, TYPE= 55581K.

$

$

Not available

10

Troy-Bilt 9095

BELT-V (SEE V-BELT SET BELOW)

$

$

Currently unavailable

11

Troy-Bilt 50210

PULLEY-REVERSE (ENG DRIVEN, 1 GROOVE, 1 BELT)

$

$

Currently unavailable

12

MTD 9561

SCR-SS 1/4-20 X .25 (SECUR REV ENG PULLEY)

$

$

Not available

13

MTD 9361

KEY-WOODRUFF #5

$

$

Not available

14

Troy-Bilt 20565

BELT-V, FWD SMFRAME (SEE V-BELT SET BELOW)

$

$

Currently unavailable

15

MTD 20765

PULLEY-FOWARD (ENG DRIVEN, 1 GROOVE, 1 BELT)

$

$

Not available

16

Troy-Bilt 9549

SCR-HH 3/8-24X1.0 G5 ZP (ATTACH FORW PULLEY)

$

$

Currently unavailable

17

MTD 9925

WASHER-.994X.413X.145

$

$

Not available

18

Troy-Bilt 9301

KEY-.188 SQX1.0 (fwd plly to fwd pto shaft)
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 9046

SPACER-.755X.937X1.375 (on fwd pto shaft)

$

$

Currently unavailable

20

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031 (on fwd pto shaft)
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

21

MTD 20555

GUIDE-BELT FWD

$

$

Not available

22

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

24

Troy-Bilt 20852

CVR-BELT W/DEC P/JR OPC (incl #33)

$

$

Currently unavailable

25

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP

$

$

Currently unavailable

26

Troy-Bilt 50190

IDLER-V-GROOVE (internal bushing type)

$

$

Currently unavailable

27

Troy-Bilt 9708

BOLT-HH 5/16-24 X 1.5 ZP

$

$

Currently unavailable

28

Troy-Bilt 9563

SCR-HH 5/16-24X.50

$

$

Currently unavailable

29

Troy-Bilt 50198

GUIDE-BELT REV PNT (for rev idler pulley)

$

$

Currently unavailable

Troy-Bilt 11018

KIT-BELT P/J (incl #20565 fwd & #9095 rev blt)

$

$

Currently unavailable

32

Troy-Bilt 20821

DECAL-STARTING STABIL

$

$

Currently unavailable

33

Troy-Bilt 20818

DECAL-BELT COVER OPC
(Superseded to GW-20818)

$30.99

$

Usually ships in 3-6 days

0
