5711 - Troy-Bilt Junior IV Rear-Tine Tiller (SN: M0075090 - M0100969) ELECTRIC START ASSEMBLY Parts Diagram

Junior IV Rear-Tine Tiller

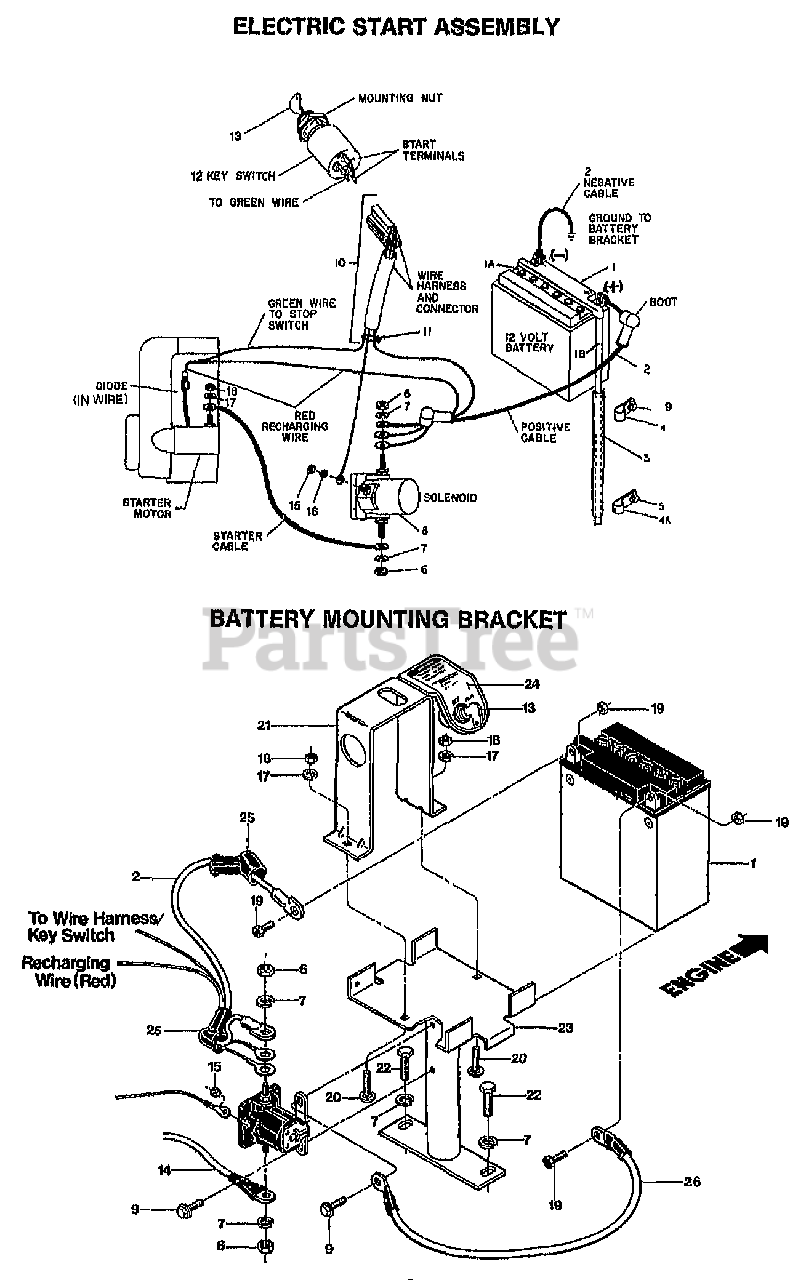

ELECTRIC START ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 9234

BATTERY 12 VLT, 12 AMP

$

$

Currently unavailable

1A

MTD 9462

CAP-YELLOW

$

$

Not available

1A

MTD 9248

CAP-BATTERY WHITE (PONY)

$

$

Not available

1B

Troy-Bilt 9247

TUBE-VENT BATTERY/HSE

$

$

Currently unavailable

2

Troy-Bilt 9296

CABLE-BATTERY POS.

$

$

Currently unavailable

3

MTD 1475

TUBING-RUBBER

$

$

Not available

4

MTD 9224

CLAMP

$

$

Not available

4A

Troy-Bilt 9391

CLAMP-VENT TUBE 9/16 OPC

$

$

Currently unavailable

5

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

6

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

7

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

8

Troy-Bilt 1959

KIT-SOL W/HDW (INCL NUTS & WSHRS FOR CBLE WRE)

$

$

Currently unavailable

9

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 2613

HARNESS-WIRE 3.5

$

$

Currently unavailable

11

Troy-Bilt 9265

TIE-TWIST LOCK
(Superseded to GW-9265)

$

$

Not available

12

Troy-Bilt 9230

KEYSWITCH W/2 KEYS

$

$

Currently unavailable

13

Troy-Bilt 9243

KEYS(1 PAIR) FOR SWITCH

$

$

Currently unavailable

14

Troy-Bilt 9223

CABLE-BATTERY (SOLENOID TO SRTR)

$

$

Currently unavailable

15

Troy-Bilt 9853

NUT W/LKWASHER #10-32 ZP
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

18

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

19

Troy-Bilt 11361

HDW PKG-BATT TERM (ATTACH BATT CBLS TO POSTS)

$

$

Currently unavailable

20

MTD 9566

SCR-CARR 1/4-20X1.25

$

$

Not available

21

Troy-Bilt 20859

PLATE-KEYSWITCH (INCL DECAL #20820)

$

$

Currently unavailable

22

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

23

Troy-Bilt 20837

BRKT-BATTERY OPC PNT
(Superseded to GW-20837)

$

$

Not available

24

Troy-Bilt 20820

DECAL-KEYSWITCH

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Troy-Bilt 9392

CABLE-BATTERY 13.5"

$

$

Currently unavailable
