57104 - Toro 32" Lawn Tractor (SN: 000000001 - 000999999) (1970) REAR AXLE ASSEMBLY Parts Diagram

32" Lawn Tractor

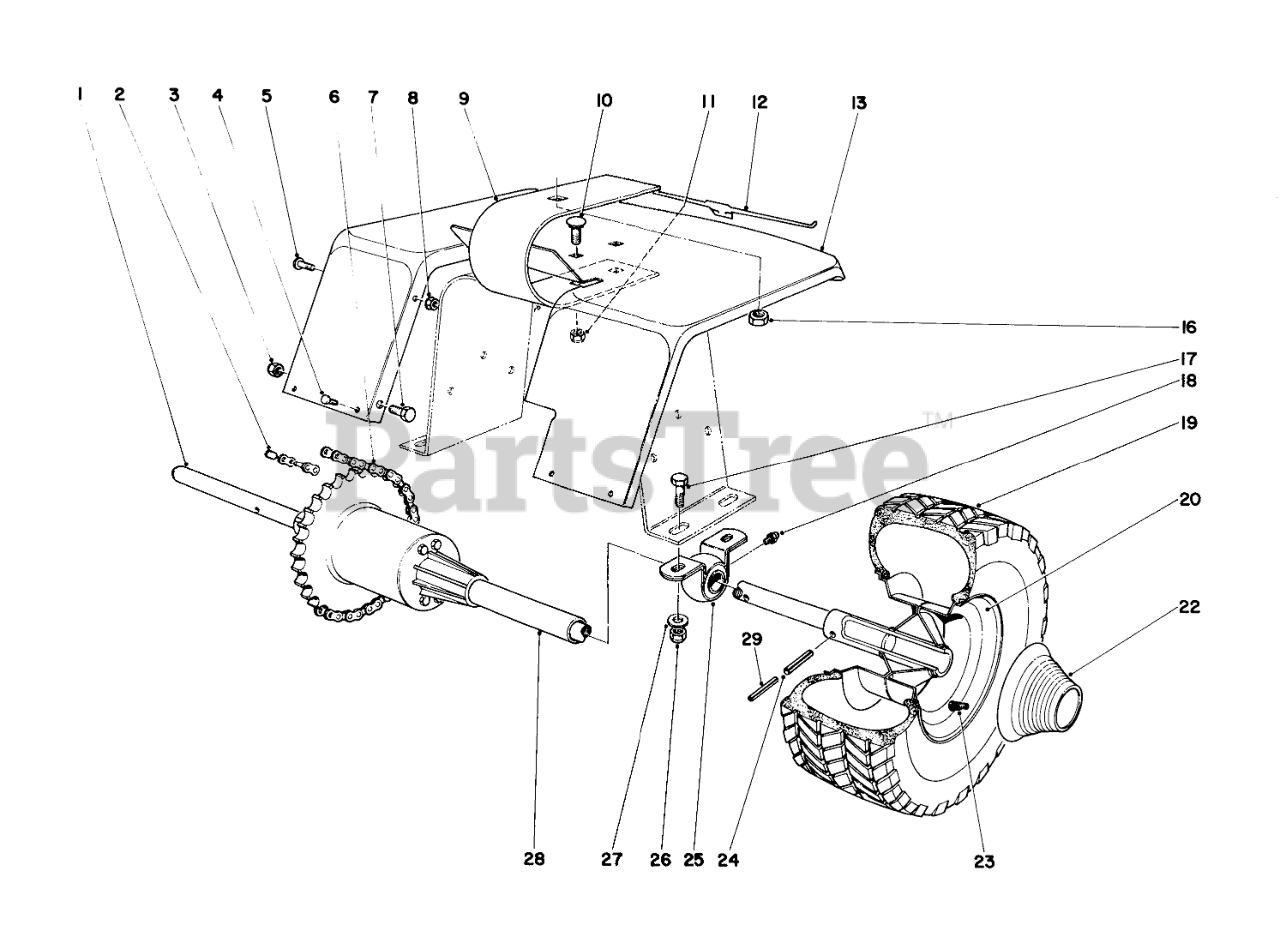

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3692

Differential

$

$

Currently unavailable

2

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

3

32152-1S

Nut

$

$

Not available

4

Toro 3290-11

IS Machine Screw Pan Head

$

$

Currently unavailable

5

Toro 3290-11

IS Machine Screw Pan Head

$

$

Currently unavailable

6

Toro 7-3786

Roller Chain

$

$

Not available

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

9

Toro 7-3674

Seat Spring

$

$

Currently unavailable

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

11

Toro 32152-2S

Nut

$

$

Currently unavailable

12

Toro 7-3908

Decal

$

$

Currently unavailable

13

Toro 7-3745

Fender

$

$

Currently unavailable

16

Toro 32152-3S

Nut

$

$

Currently unavailable

17

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

18

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

19

Toro 231-56S

Tire

$

$

Currently unavailable

20

Toro 217-70S

Rim

$

$

Currently unavailable

22

Toro 7-3933

Hub Cap Rear

$

$

Currently unavailable

23

232-27S

Valve Stem

$

$

Not available

24

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

25

Toro 7-3770

PILLOW BLOCK

$

$

Not available

26

Toro 32152-2S

Nut

$

$

Currently unavailable

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 7-3877

Tube Rear Axle

$

$

Currently unavailable

29

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

Toro 7-3704

Wheel Assy. Rear

$

$

Currently unavailable
